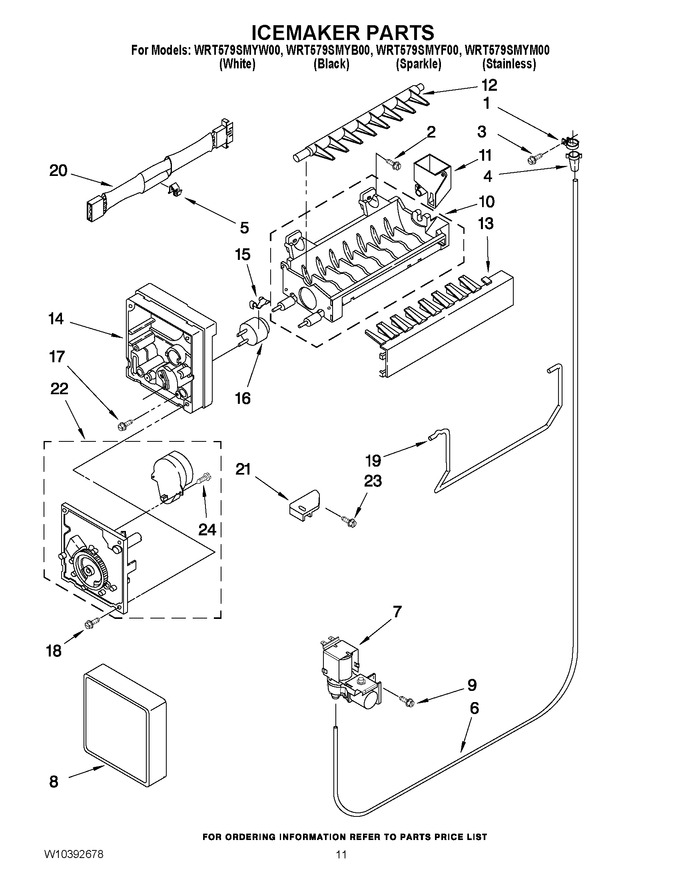

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP488878		Clamp, Tube   (Replaces: 488878)				$ 12.18
2	WP488163		Screw   (Replaces: 488208)				$ 7.92
3	WP488787		Screw   (Replaces: 488886)				$ 11.26
4	4387491		Insert, Tube   (Replaces: 2181939)				$ 8.23
5	WP628379		Clip, Fuse   (Replaces: 628379)				$ 11.10
6	W10339208		Tube Water		Appelez-nous	-
7	WPW10279909		Valve Solenoid   (Replaces: W10279909)				$ 189.89
8	WPW10289690		Cover   (Replaces: W10289690)			Immediately	$ 8.82
9	WP489464		Screw   (Replaces: 8281265)			Immediately	$ 8.38
10	WPW10190929		Mold & Heater Assembly (also Order 542638 Sillicone Grease)   (Replaces: W10122527)				$ 233.15
11	W10122561		Cup, Water Fill				$ 29.16
12	WP627843		Ejector   (Replaces: 627843)				$ 87.78
13	WPW10122563		Ice Stripper   (Replaces: W10122563)				$ 99.42
14	WP2195914		Support   (Replaces: 2194712)				$ 109.80
15	WP2315522		Retainer Thermostat   (Replaces: 2315522)				$ 11.60
16	WP627985		Thermostat (also Order 542369 Cement Alumilastic)   (Replaces: W10290336)				$ 114.64
17	8533917		Screw				$ 14.04
18	WP681249		Screw   (Replaces: 489276)			Immediately	$ 8.25
19	WP627792		Shut Off Arm   (Replaces: 627792)				$ 88.76
20	W10309399		Harness, Wiring				$ 137.22
21	W11500948		Bracket   (Replaces: 628320)			Immediately	$ 33.78
22	8201515		Module Assembly (includes Item 24)   (Replaces: W10223929)			Immediately	$ 141.64
23	WP489478		Screw   (Replaces: 489478)				$ 8.18
24	489136		Screw 3-24 X 23/64				$ 10.80
100	4317943		Icemaker, Complete Assembly   (Replaces: W10190952)			Immediately	$ 183.45
