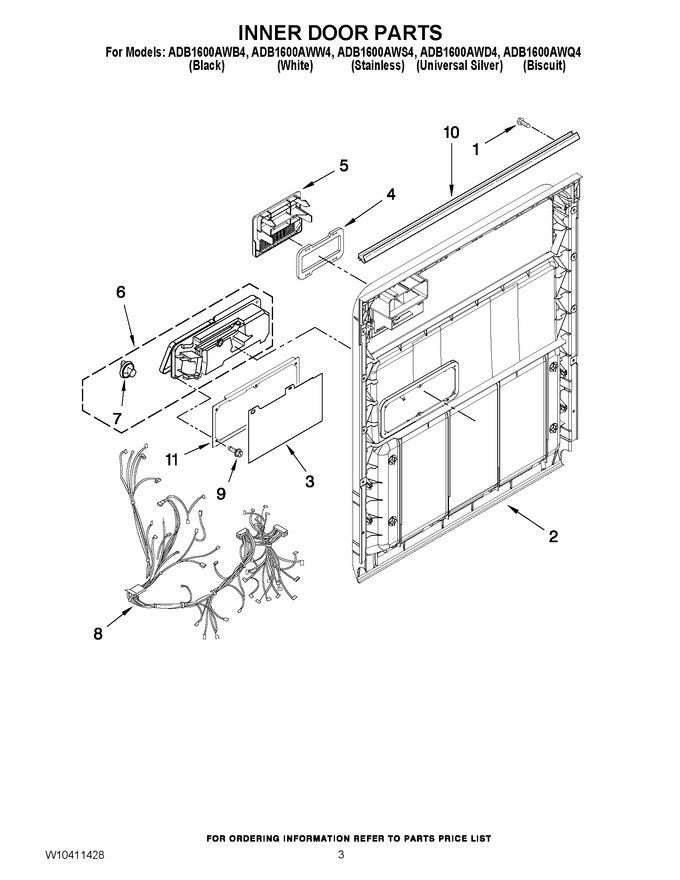

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WPW10177098 | Screw, Door (Replaces: W10177098) |
|
Immediately | $ 8.02 | ||||
| 2 | WPW10254546 | Inner Door Mastic Assembly (Replaces: W10254546) |
|
$ 272.21 | |||||
| 3 | WP8531865 | Shield, Dispenser (Replaces: 8531865) |
|
$ 113.15 | |||||
| 4 | WPW10254545 | Gasket, Vent (Replaces: W10254545) |
|
$ 12.19 | |||||
| 5 | WPW10254548 | Deflector, Vent (also Order Item 4) (Replaces: W10254548) |
|
$ 73.14 | |||||
| 6 | WPW10224430 | Dispenser, Assembly (Replaces: W10195411) |
|
Immediately | $ 204.79 | ||||
| 7 | WP8533380 | Cap, Rinse Aid (Replaces: 8533380) |
|
$ 27.91 | |||||
| 8 | W10328603 | Wiring Harness Main |
|
$ 123.28 | |||||
| 9 | WPW10177098 | Screw (Replaces: W10177098) |
|
Immediately | $ 8.02 | ||||
| 10 | WP8269296 | Seal, Console/door (Replaces: 8269296) |
|
Immediately | $ 188.17 | ||||
| 11 | WPW10462232 | Bracket, Dispenser (Replaces: W10341423) |
|
$ 37.79 |
