Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 8193918 Accumulator Assy   (Replaces: 8534952) In-Stock Immediately $ 177.98

2 8283527 Shield, Motor Special Order $ 176.53

3 W10348405 Screw Appelez-nous -
4 WP8572618 Sump With Seal   (Replaces: 8572618) Special Order $ 329.26

5 WP8268375 Check Valve, Sump   (Replaces: 8268375) In-Stock Immediately $ 82.36

6 W10083957V Chopper Assembly   (Replaces: W10083957) In-Stock Immediately $ 50.17

7 WP9741232 Screw   (Replaces: 9741232) In-Stock Immediately $ 5.07

8 WP8531857 Protector, Inlet   (Replaces: 8531857) Special Order $ 171.13

9 WPW10757216 Motor Assembly   (Replaces: W10231538) In-Stock Immediately $ 326.03

10 3400217 Screw Special Order $ 7.46

11 W10084567 Screen, Separation Special Order $ 97.34

12 W10806701 Sump & Motor Assembly   (Replaces: W10237168) In-Stock Immediately $ 378.87

13 WPW10300599 Tab, Sump   (Replaces: W10300599) Special Order $ 90.13

14 8533949 Nut Special Order $ 86.78

15 WPW10348269 Pump, Drain   (Replaces: 8558995) In-Stock Immediately $ 97.46

16 W11622922 Volute, Back (also Order Items 21 & 25)   (Replaces: W10142656) Special Order $ 24.18

17 8269144A Hose, Drain   (Replaces: 8269144) In-Stock Immediately $ 29.04

18 W10200940 Motor   (Replaces: W10226459) Special Order $ 319.95

19 8268401 Seal, Volute Appelez-nous -
20 8193951A Impeller Kit (also Order Item 25)   (Replaces: 8531017) In-Stock Immediately $ 140.36

21 8193951A Face Seal Assembly (also Order Item 25)   (Replaces: 8268403) In-Stock Immediately $ 140.36

22 WP356138 Clamp, Hose   (Replaces: 356138) In-Stock Immediately $ 8.52

23 WPW10705575 Optical Water Indicator   (Replaces: W10134017) In-Stock Immediately $ 43.81

24 WPW10334457 Capacitor   (Replaces: W10334457) Special Order $ 164.88

25 WP8531018 Washer   (Replaces: 8531018) Special Order $ 8.75


    View Diagram in Separate Window     Print Icon   Print Part List

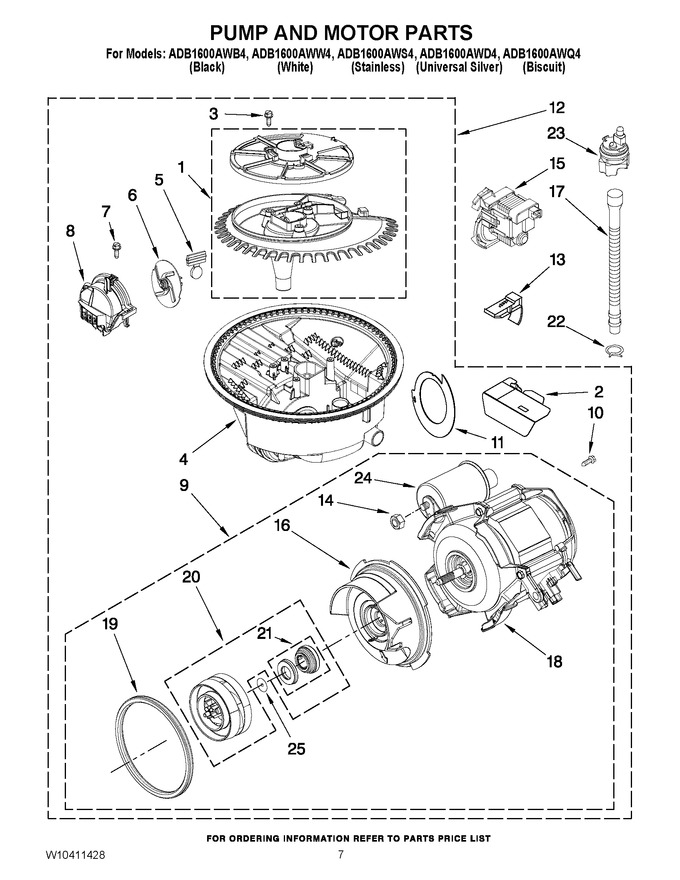

Diagram for ADB1600AWB4
