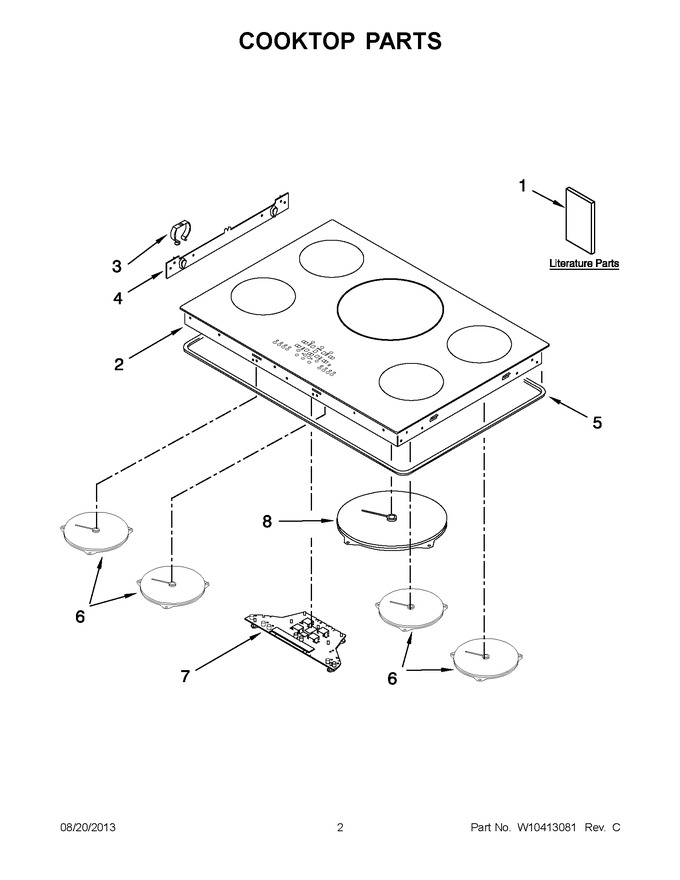

02 - Cooktop Parts
03 - Interior Parts
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10414503 | Installation Instructions |
|
- | |||||
| 1 | W10408874 | Tech Sheet |
|
- | |||||
| 2 | WPW10396765 | Cooktop, Glass (black) (Replaces: W10396765) |
|
$ 580.74 | |||||
| 2 | WPW10396823 | Cooktop, Glass (stainless) (Replaces: W10396823) |
|
$ 997.93 | |||||
| 3 | W10810497 | Spring, Cooktop (Replaces: W10328375) |
|
Immediately | $ 22.33 | ||||
| 4 | WPW10328377 | Bracket, Support (Replaces: W10328377) |
|
Immediately | $ 53.05 | ||||
| 5 | WPW10237005 | Gasket, Cooktop (Replaces: W10237005) |
|
Immediately | $ 163.56 | ||||
| 6 | WPW10396548 | Coil, Element ( Left Front, Right Front, Left Rear, Right Rear ) (7 Inch ( 17.8cm )) (Replaces: W10396548) |
|
Immediately | $ 394.39 | ||||
| 7 | WPW10396615 | User Interface ? Display Board (Replaces: W10396615) |
|
Immediately | $ 733.52 | ||||
| 8 | WPW10396779 | Coil, Element ( Center ) (11 Inch ( 27.9 Cm )) (Replaces: W10396779) |
|
Immediately | $ 304.55 |
