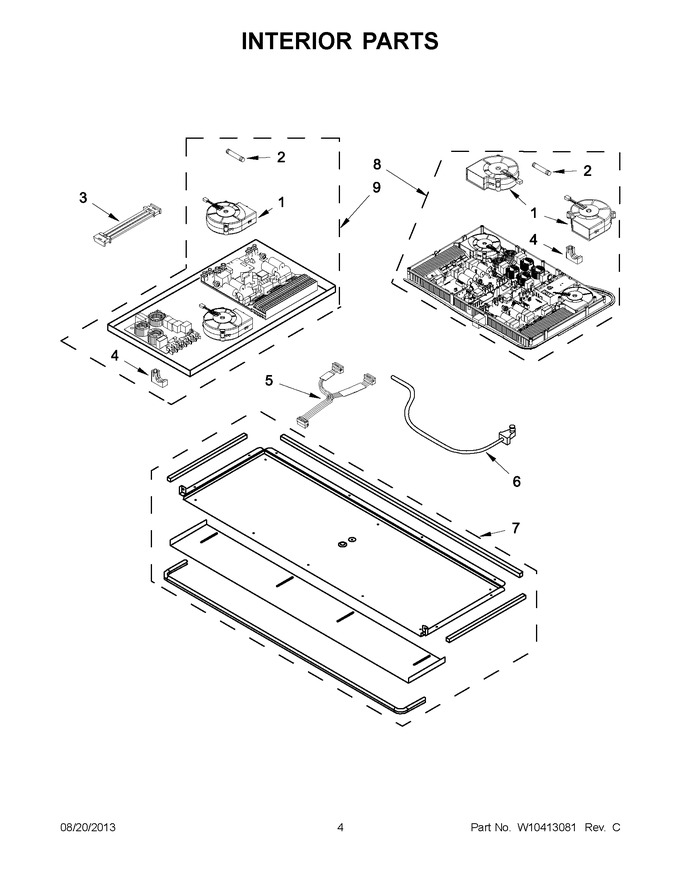

03 - Interior Parts
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10328381 | Fan, Cooling (left) |
|
Immediately | $ 360.00 | ||||
| 1 | W10328378 | Fan, Cooling (right) |
|
$ 362.13 | |||||
| 2 | WPW10328492 | Fuse (Replaces: W10328492) |
|
Immediately | $ 102.98 | ||||
| 3 | W11428265 | Harness, Wire User Interface (Replaces: W10328396) |
|
$ 216.26 | |||||
| 4 | W10328401 | Harness, Fixing Clip |
|
$ 258.72 | |||||
| 5 | W11676565 | Harness, Wire User Interface (Replaces: W10409868) |
|
$ 175.50 | |||||
| 6 | WPW10396788 | Cord, Power (Replaces: W10396788) |
|
$ 353.98 | |||||
| 7 | W10432828 | Box, Burner |
|
$ 343.43 | |||||
| 8 | W10607548 | Module, Ssx |
|
$ 682.58 | |||||
| 9 | W10607550 | Module, Ss |
|
$ 551.85 | |||||
| NI | N/P | Following Parts Not Illustrated |
|
- | |||||
| NI | W10328499 | Kit, Mounting Marble Countertop |
|
$ 276.81 | |||||
| NI | W10310006A | Adhesive, Marble Countertop (Replaces: W10310006) |
|
$ 226.79 |
