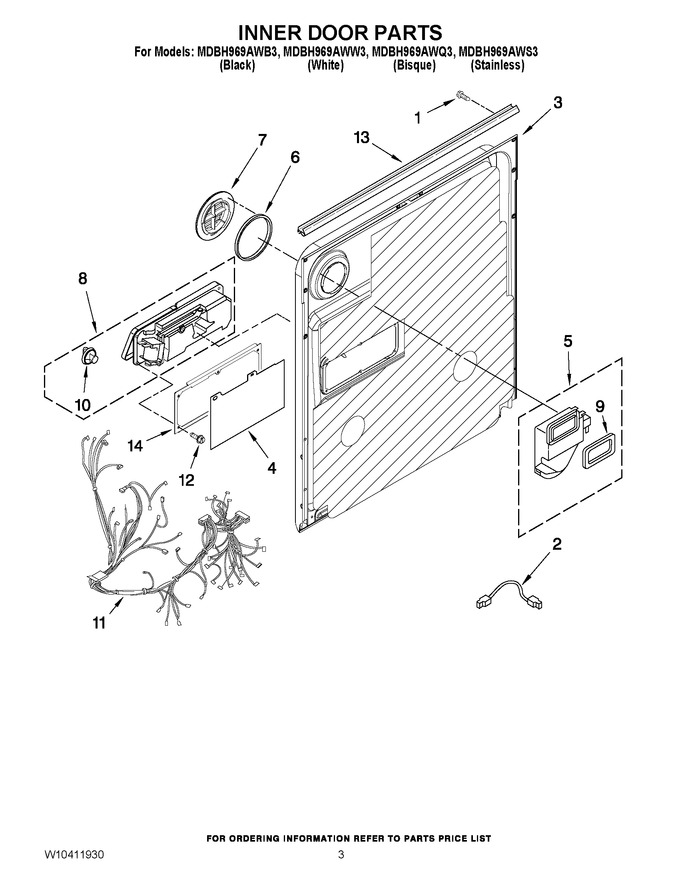

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WPW10348413 | Screw, Door (Replaces: W10348413) |
|
Immediately | $ 8.03 | ||||
| 2 | 8545608 | Harness, Vent Motor |
|
$ 152.37 | |||||
| 3 | 8575894 | Inner Door |
|
$ 103.29 | |||||
| 4 | WPW10482094 | Cover, Dispenser (Replaces: W10482094) |
|
Immediately | $ 30.50 | ||||
| 5 | WPW10164259 | Vent Assembly (Replaces: W10164259) |
|
$ 198.95 | |||||
| 6 | WP8269259 | Gasket, Vent (Replaces: 8269259) |
|
Immediately | $ 63.50 | ||||
| 7 | 8575893 | Deflector, Vent (also Order Item 6) |
|
$ 30.65 | |||||
| 8 | WPW10199696 | Dispenser, Assembly (Replaces: W10199696) |
|
$ 174.06 | |||||
| 9 | WP8269258 | Seal, Front (Replaces: 8269258) |
|
Immediately | $ 92.25 | ||||
| 10 | WPW10199683 | Cap, Rinse Aid (Replaces: W10199683) |
|
$ 26.79 | |||||
| 11 | W10413093 | Wiring Harness |
|
$ 119.12 | |||||
| 12 | WPW10177098 | Screw (Replaces: W10177098) |
|
Immediately | $ 7.64 | ||||
| 13 | WP8269296 | Seal, Console/door (Replaces: 8269296) |
|
Immediately | $ 179.21 | ||||
| 14 | WPW10462232 | Bracket, Dispenser (Replaces: W10462232) |
|
$ 36.04 |
