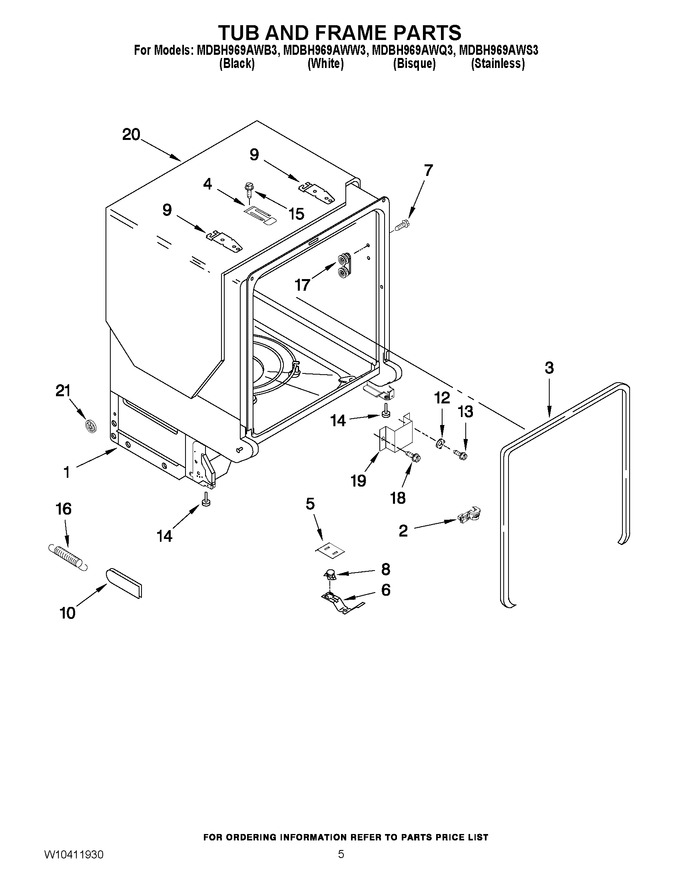

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11513976 | Tub Assembly (includes Heater Assembly) (Replaces: W10350149) |
|
$ 502.10 | |||||
| 2 | W10337661 | Strain Relief |
|
$ 7.59 | |||||
| 3 | W10542314 | Door Seal (Replaces: W10284090) |
|
Immediately | $ 97.26 | ||||
| 4 | W10317686 | Strike, Latch |
|
$ 43.82 | |||||
| 5 | W10321574 | Shield, Thermostat (Replaces: W10339699) |
|
$ 24.60 | |||||
| 6 | W10539489 | Bracket, Thermostat (Replaces: 3378595) |
|
$ 19.18 | |||||
| 7 | W10817436 | Screw (Replaces: W10341745) |
|
Immediately | $ 7.74 | ||||
| 8 | WP661566 | Thermostat (Replaces: W10339474) |
|
Immediately | $ 31.28 | ||||
| 9 | WP8269145 | Bracket, Undercounter (Replaces: 8269145) |
|
Immediately | $ 19.33 | ||||
| 10 | WP8268990 | Bushing, Door Spring (Replaces: 8268990) |
|
Immediately | $ 30.52 | ||||
| 12 | WP3378128 | Washer, Pronged (Replaces: 3378128) |
|
$ 9.03 | |||||
| 13 | WP3400014 | Screw (Replaces: 3400014) |
|
$ 7.75 | |||||
| 14 | 8193716 | Leveler, Leg (Replaces: 8524584) |
|
Immediately | $ 84.72 | ||||
| 15 | W10165274 | Screw |
|
$ 12.83 | |||||
| 16 | WPW10337934 | Spring, Door Balance (Replaces: 8524473) |
|
Immediately | $ 34.61 | ||||
| 17 | WP8575897 | Wheel & Mount Assembly (Replaces: 8575897) |
|
Immediately | $ 9.70 | ||||
| 18 | WP3400892 | Screw (Replaces: 3400892) |
|
$ 7.75 | |||||
| 19 | W11779375 | Cover, Terminal Box (Replaces: 8268991) |
|
$ 26.79 | |||||
| 20 | W11086533 | Shield, Sound Tub (Replaces: 8573240) |
|
Immediately | $ 31.30 | ||||
| 21 | WP8269831 | Wheel, Leveler (Replaces: 8269831) |
|
$ 7.52 |
