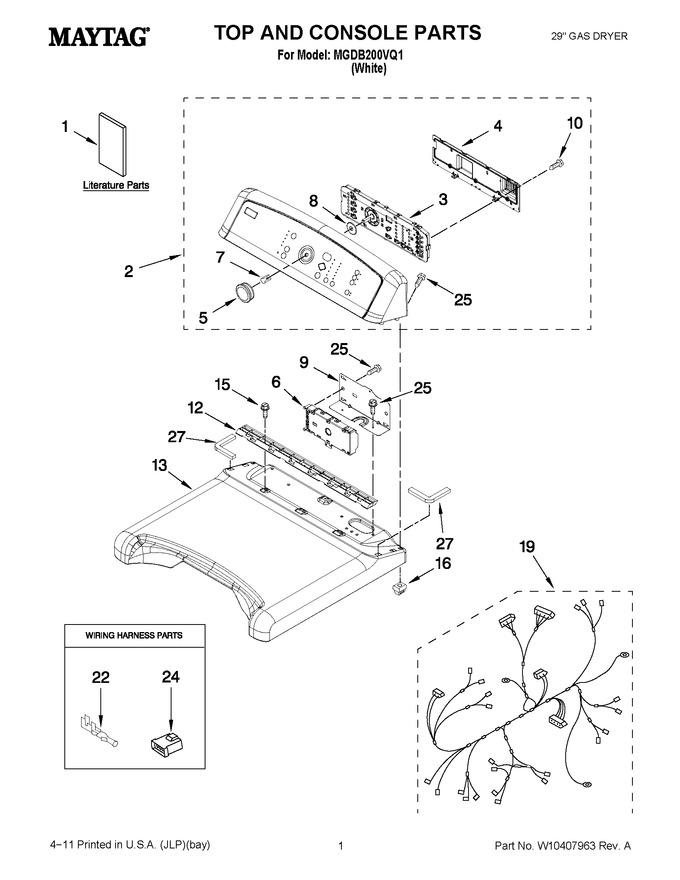

01 - Top And Console Parts


02 - Cabinet Parts


03 - Bulkhead Parts


04 - 8557891 Burner Assembly


05 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10156734		Tech, Sheet		Appelez-nous	-
1	W10260037		Guide, Use & Care		Appelez-nous	-
1	W10388777		Guide, Install		Appelez-nous	-
2	W10110298		Console Assembly				$ 301.65
3	W10336133		Assembly, User Interface				$ 277.33
4	W10051124		Cover, Ui-assembly				$ 263.67
5	WPW10051126		Knob Assembly   (Replaces: W10051126)				$ 53.77
6	W10111621		Control Electronic				$ 337.91
7	W10153920		Spring, Knob		Appelez-nous	-
8	8572039		Seal-ui		Appelez-nous	-
9	8563853		Bracket, Machine Controller		Appelez-nous	-
10	WP4449745		Screw   (Replaces: W10003770)				$ 7.98
12	W10110295		Bracket, Console		Appelez-nous	-
13	W10223157		Top User Interface				$ 159.40
15	WP33001882		Screw, 8-18 X 1/2   (Replaces: 337686)				$ 83.71
16	W10112673		Clip, Console				$ 9.75
19	W10319800		Harness, Wiring Main		Appelez-nous	-
22	WP94614		Terminal   (Replaces: 94614)				$ 8.05
24	WP3403498		Connector, 3 Position (gas Valve)   (Replaces: 3403498)				$ 7.30
25	W10131402		Screw		Appelez-nous	-
27	W10219694		Seal, Top(rh)		Appelez-nous	-
27	W10219695		Seal, Top(lh)		Appelez-nous	-
