SELECT A DIAGRAM

01 - Top And Console Parts


02 - Cabinet Parts

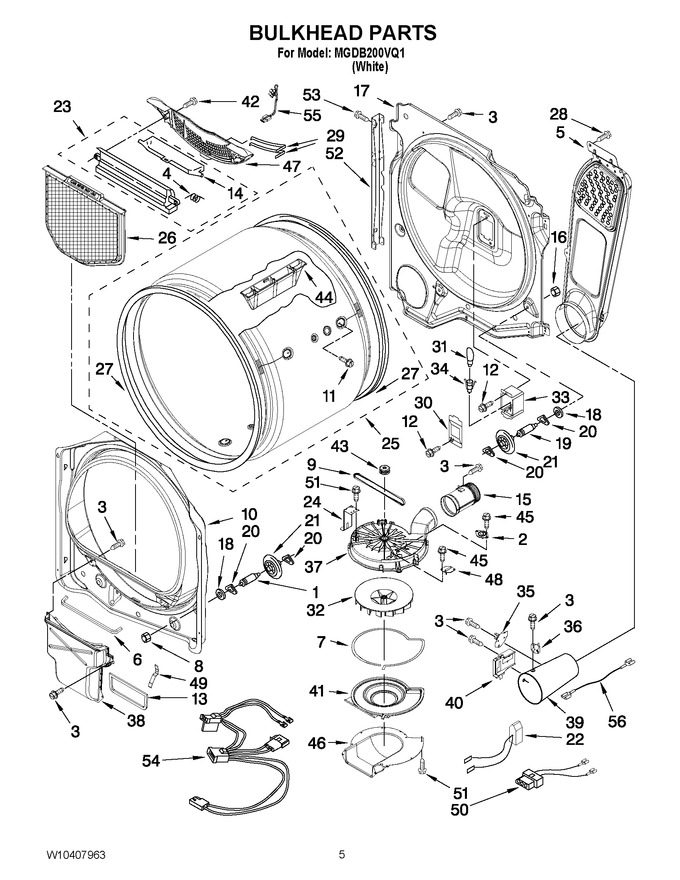

03 - Bulkhead Parts


04 - 8557891 Burner Assembly


05 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WPW10359271		Shaft, R.h. Thread   (Replaces: W10359271)			Immediately	$ 62.21
2	WP8577274		Thermistor, Blower Housing   (Replaces: 8577274)			Immediately	$ 43.61
3	WP90767		Screw, 8-18 X 3/8   (Replaces: 90767)			Immediately	$ 8.25
4	WP3394986		Spring, Lint Screen Door   (Replaces: 3394986)				$ 93.47
5	8544757		Air Duct Assembly		Appelez-nous	-
6	WP697813		Seal, Outlet Housing   (Replaces: 697813)			Immediately	$ 8.37
7	WP8573068		Seal, Blower Cover   (Replaces: 8573068)				$ 92.58
8	W11812294		Nut,3/8 X 16(r.h.)   (Replaces: 3934666)				$ 12.77
9	WP8544742		Belt, Blower   (Replaces: 8544742)			Immediately	$ 55.00
10	WP8557244		Bulkhead, Front   (Replaces: 8557244)				$ 333.57
11	W10853898		Screw, 8-16 X 3/4   (Replaces: W10219342)			Immediately	$ 8.18
12	WP488729		Screw, 8-18 X 1/2   (Replaces: 3390647)			Immediately	$ 8.28
13	8544721		Seal, Lint Duct				$ 5.65
14	W11222846		Door, Lint Screen   (Replaces: 3394984)			Immediately	$ 213.91
15	8544760		Exhaust Pipe		Appelez-nous	-
16	WPW10080190		Nut, 3/8-16 (l.h.)   (Replaces: W10001120)			Immediately	$ 10.01
17	8557236		Bulkhead, Rear		Appelez-nous	-
18	W11236646		Washer, Support   (Replaces: 3387459)			Immediately	$ 14.73
19	WPW10359272		Shaft, L.h. Thread   (Replaces: W10359272)			Immediately	$ 58.48
20	WPW10512946		Ring, Tri   (Replaces: 690997)			Immediately	$ 8.80
21	WPW10314173		Roller, Support   (Replaces: W10314171)			Immediately	$ 28.50
22	8539889		Harness, Flame Switch		Appelez-nous	-
23	W11129408		Outlet Housing Assembly   (Replaces: 3394985)			Immediately	$ 53.28
24	8544741		Bracket, Blower Housing				$ 38.71
25	W10549615		Complete Drum Assembly   (Replaces: 8557270)				$ 444.51
26	W10120998		Lint, Screen   (Replaces: W10049370)				$ 67.16
27	280140		Seal, Drum   (Replaces: W10116344)			Immediately	$ 73.88
28	WP693995		Screw, 8-18 X 3/8   (Replaces: 693995)			Immediately	$ 7.55
29	WP3387223		Electrode, Sensor   (Replaces: 3387223)			Immediately	$ 6.17
30	W11226088		Lens, Drum Light   (Replaces: 3402841)				$ 32.64
31	WP22002263		Bulb, Light   (Replaces: 3406124)			Immediately	$ 14.85
32	WP8544737		Wheel, Blower   (Replaces: 8544737)			Immediately	$ 154.84
33	3977373		Bracket-light				$ 111.08
34	W11222979		Socket Assembly   (Replaces: W10168632)			Immediately	$ 118.79
35	WP8573713		Thermal-cutoff   (Replaces: 8573713)			Immediately	$ 72.51
36	WP3391912		Thermostat High Limit   (Replaces: 3391912)			Immediately	$ 71.56
37	W10256512		Housing, Blower				$ 70.10
38	8544786		Lint Duct Assembly				$ 91.17
39	8573015		Funnel, Burner		Appelez-nous	-
40	WP338906		Sensor, Radiant   (Replaces: 338906)			Immediately	$ 51.91
41	8544719		Cover, Blower (includes No.7)				$ 76.29
42	WP3387230		Screw, 10-16 X 13/16   (Replaces: 3387230)			Immediately	$ 8.54
43	WP8544739		Pulley, Blower   (Replaces: 8544739)				$ 133.27
44	8565688		Baffle, Drum				$ 166.20
45	3350424		Screw, 10-16 X 1/2				$ 12.72
46	8544718		Duct, Inlet Blower				$ 72.39
47	W11117302		Grill, Outlet   (Replaces: 8544723)			Immediately	$ 158.67
48	WP3390719		Thermal-fuse   (Replaces: 3390719)			Immediately	$ 31.57
49	8573070		Clip, Lint Duct				$ 12.41
50	353424		Connector				$ 18.95
51	WPW10109200		Screw, 11-16 X 3/4   (Replaces: 97787)			Immediately	$ 8.80
52	8558163		Channel		Appelez-nous	-
53	WP3390631		Screw, 10-16 X 3/8   (Replaces: 3390631)				$ 8.25
54	WP3401850		Harness, Gas   (Replaces: 3401850)				$ 255.13
55	W10171086		Harness, Sensor				$ 170.18
56	3401710		Jumper, Hi Limit		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
