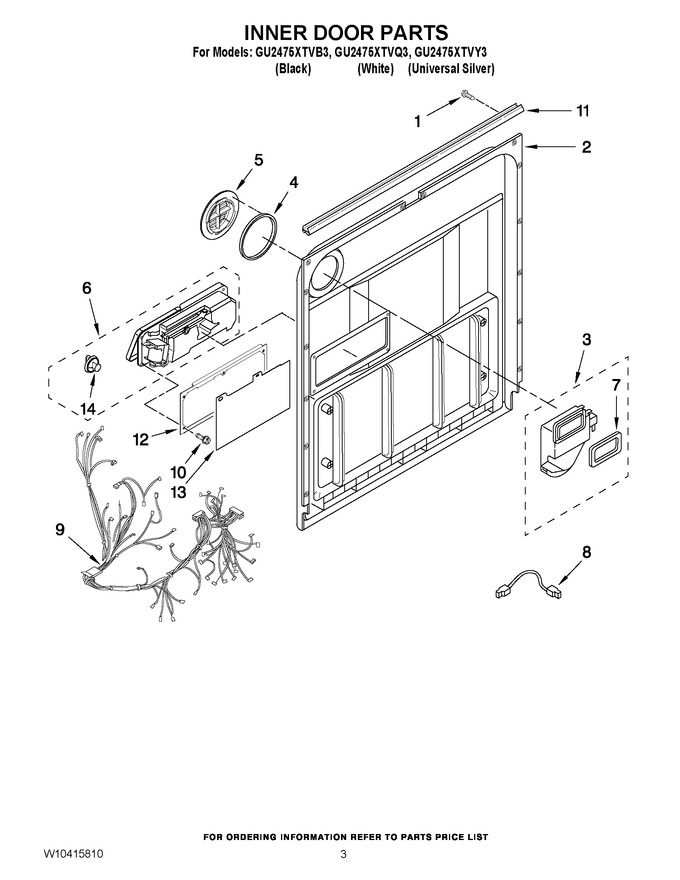

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WPW10348413		Screw, Door   (Replaces: W10348413)			Immediately	$ 8.03
2	W11513966		Inner Door (also Order Item 4)   (Replaces: 8575895)				$ 266.67
3	WPW10164259		Vent Assembly (also Order Item 4)   (Replaces: W10164259)				$ 198.95
4	WP8269259		Gasket, Vent   (Replaces: 8269259)			Immediately	$ 63.50
5	8575893		Deflector, Vent (also Order Item 4)				$ 30.65
6	WPW10199696		Dispenser, Assembly (includes Item 14)   (Replaces: W10224429)				$ 174.06
7	WP8269258		Seal. Front   (Replaces: 8269258)			Immediately	$ 92.25
8	8545608		Harness, Vent Motor				$ 152.37
9	W10341062		Wiring Harness (main)		Appelez-nous	-
10	WPW10177098		Screw   (Replaces: W10177098)			Immediately	$ 7.64
11	WP8269296		Seal, Console/door   (Replaces: 8269296)			Immediately	$ 179.21
12	WPW10462232		Bracket, Dispenser   (Replaces: W10341423)				$ 36.04
13	WP8531865		Shield, Dispenser   (Replaces: 8531865)				$ 107.76
14	WP8558307		Cap, Rinse Aid   (Replaces: 8558307)			Immediately	$ 21.27
