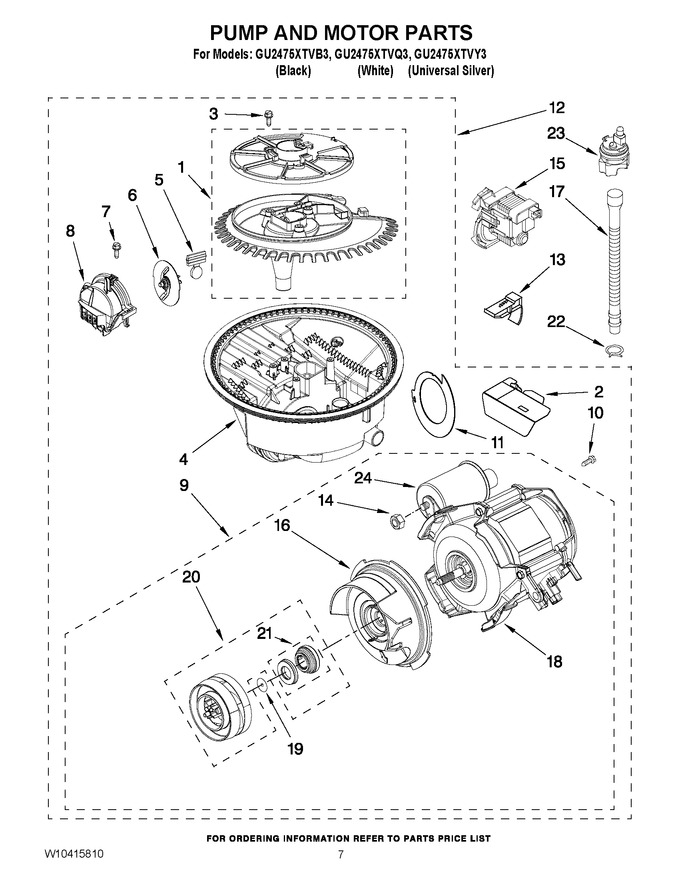

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 8193918 | Accumulator Assy (Replaces: 8534952) |
|
Immediately | $ 177.98 | ||||
| 2 | 8283527 | Shield, Motor |
|
$ 168.12 | |||||
| 3 | W10348405 | Screw |
|
- | |||||
| 4 | WP8572618 | Sump With Seal (Replaces: 8572618) |
|
$ 313.67 | |||||
| 5 | WP8268375 | Check Valve, Sump (Replaces: 8268375) |
|
Immediately | $ 82.36 | ||||
| 6 | W10083957V | Chopper Assembly (Replaces: 8268383) |
|
Immediately | $ 50.17 | ||||
| 7 | WP9741232 | Screw (Replaces: 9741232) |
|
Immediately | $ 5.07 | ||||
| 8 | WP8531857 | Protector, Inlet (Replaces: 8531857) |
|
$ 162.98 | |||||
| 9 | WPW10757216 | Motor Assembly (Replaces: W10231537) |
|
Immediately | $ 326.03 | ||||
| 10 | 3400217 | Screw |
|
$ 7.10 | |||||
| 11 | W10084567 | Screen, Separation |
|
$ 92.70 | |||||
| 12 | W10806701 | Sump & Motor Assembly (Replaces: W10298343) |
|
Immediately | $ 378.87 | ||||
| 13 | WPW10300599 | Tab, Sump (Replaces: W10300599) |
|
$ 85.84 | |||||
| 14 | 8533949 | Nut |
|
$ 82.65 | |||||
| 15 | WPW10348269 | Pump, Drain (Replaces: 8558995) |
|
Immediately | $ 97.46 | ||||
| 16 | W11622922 | Volute W/seal (also Order Items 19 & 21) (Replaces: W10142656) |
|
$ 22.66 | |||||
| 17 | 8269144A | Hose, Drain (Replaces: 8269144) |
|
Immediately | $ 27.66 | ||||
| 18 | W10200940 | Motor |
|
$ 304.71 | |||||
| 19 | WP8531018 | Washer (Replaces: 8531018) |
|
$ 7.75 | |||||
| 20 | 8193951A | Impeller Kit (also Order Item 19) (Replaces: 8531017) |
|
Immediately | $ 140.36 | ||||
| 21 | 8193951A | Face Seal Assembly (Replaces: 8268403) |
|
Immediately | $ 140.36 | ||||
| 22 | WP8269146 | Clamp, Hose (Replaces: 8269146) |
|
$ 8.12 | |||||
| 23 | WPW10705575 | Optical Water Indicator (Replaces: W10134017) |
|
Immediately | $ 43.81 | ||||
| 24 | WPW10334457 | Capacitor (Replaces: W10334457) |
|
$ 157.03 |
