01 - Top And Cabinet Parts


02 - Door And Latch Parts


03 - Control Panel Parts


04 - Dispenser Parts


05 - Tub And Basket Parts


06 - Pump And Motor Parts


07 - Optional Parts (not Included)

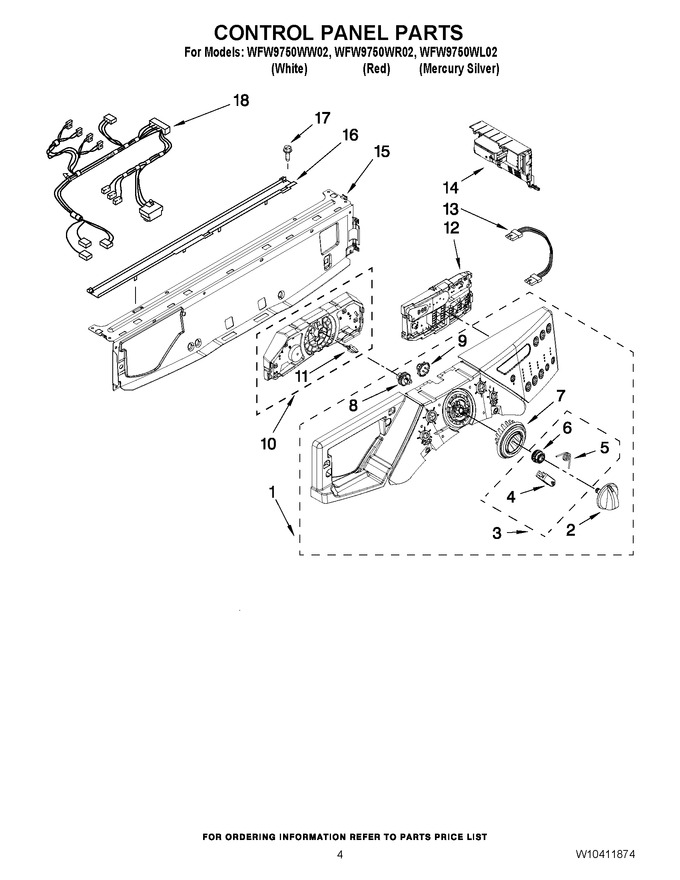

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10283370		Panel, Control (red)		Appelez-nous	-
1	W10283372		Panel, Control (mercury Silver)		Appelez-nous	-
1	W10283368		Panel, Control (white)		Appelez-nous	-
2	W10190685		Knob, Control (includes Item 9)				$ 65.52
3	W10133927		Wheel, Detent Kit (includes Item 9)				$ 145.30
4	W10131661		Wheel, Rast (service In Kit Only)		Appelez-nous	-
5	W10131377		Spring, Knob (service In Kit Only)		Appelez-nous	-
6	W10131378		Wheel, Detent (service In Kit Only)		Appelez-nous	-
7	W10131376		Ring, Knob Light (includes Item 9)		Appelez-nous	-
8	W10131381		Wheel, Encoder				$ 80.55
9	W10131382		Retainer, Snap		Appelez-nous	-
10	W10283460		User Interface, Center				$ 212.61
11	8183177		Adapter, Encoder Wheel		Appelez-nous	-
12	W10391441		User Interface, Right		Appelez-nous	-
13	W10852624		Harness, Wiring (user Interface)   (Replaces: W10283465)				$ 170.98
14	W10390819		Microcomputer, Machine Control		Appelez-nous	-
15	W10059240		Brace, Front Top   (Replaces: 8183203)				$ 194.85
16	WP8183204		Channel, Water   (Replaces: 8183204)				$ 171.96
17	WP488729		Screw   (Replaces: 8181756)			Immediately	$ 7.79
18	W10283457		Harness, Wiring (upper Main)				$ 245.12

    View Diagram in Separate Window       Print Part List
