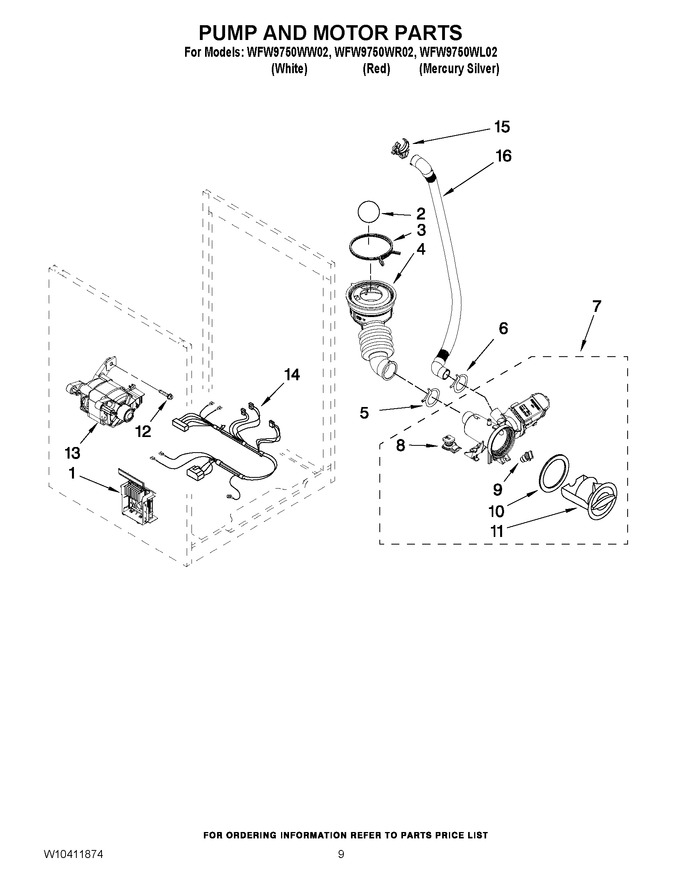

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP8183196 | Motor Control Unit (Replaces: 8183196) |
|
$ 475.97 | |||||
| 2 | W10121657 | Ball |
|
$ 20.03 | |||||
| 3 | WP696392 | Clamp (Replaces: 8181734) |
|
$ 8.12 | |||||
| 4 | WPW10467168 | Hose, Tub To Pump (Replaces: 8181732) |
|
Immediately | $ 38.31 | ||||
| 5 | WP285655 | Clamp (Replaces: 8181753) |
|
Immediately | $ 8.39 | ||||
| 6 | WP3367052 | Clamp (Replaces: 8181752) |
|
$ 8.32 | |||||
| 7 | 280187 | Pump (complete) (Replaces: 8182819) |
|
Immediately | $ 233.93 | ||||
| 8 | W10338326 | Grommet, Damper (rear) |
|
$ 32.97 | |||||
| 9 | WPW10526202 | Grommet, Damper (front) (Replaces: 8182816) |
|
$ 16.23 | |||||
| 10 | 8181736 | Seal, Filter Cap |
|
$ 36.51 | |||||
| 11 | 8183027 | Cap, Filter (includes Item 10) |
|
$ 28.31 | |||||
| 12 | W10128585 | Bolt, Motor |
|
$ 6.51 | |||||
| 13 | 8182793 | Motor |
|
$ 323.53 | |||||
| 14 | WPW10189680 | Harness, Motor (includes Item 23 On Page 1) (Replaces: W10189680) |
|
$ 167.01 | |||||
| 15 | 8182209 | Retainer, Drain Hose |
|
$ 20.57 | |||||
| 16 | WPW10003250 | Drain Hose (inner) (Replaces: 8181740) |
|
Immediately | $ 34.59 |
