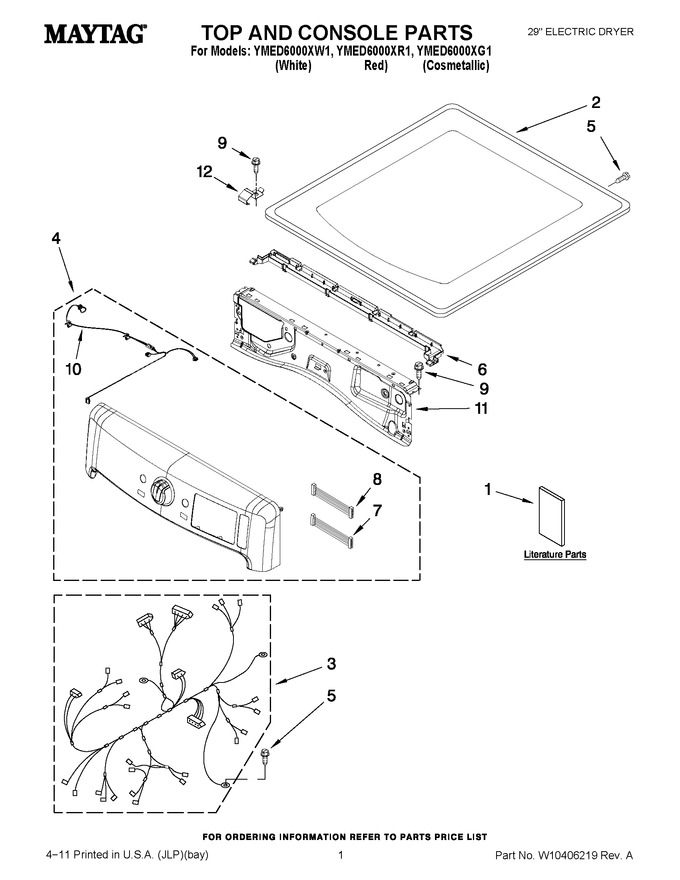

01 - Top And Console Parts
02 - Cabinet Parts
03 - Bulkhead Parts
04 - Door Parts
05 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10312954 | Use & Care Guide |
|
- | |||||
| 1 | W10316958 | Tech Sheet |
|
- | |||||
| 1 | W10057364 | Installation, Instruction |
|
- | |||||
| 2 | W10337792 | Top (red) |
|
$ 136.71 | |||||
| 2 | W10301057 | Top (cosmetallic) |
|
$ 139.14 | |||||
| 2 | WPW10208383 | Top (white) (Replaces: W10208383) |
|
$ 323.93 | |||||
| 3 | W10355895 | Harness, Main |
|
$ 123.86 | |||||
| 4 | W10350674 | Panel, Console (includes Buttons & Control Board) (white) |
|
- | |||||
| 4 | W10350675 | Panel, Console (includes Buttons & Control Board) (red) |
|
- | |||||
| 4 | W10350676 | Panel, Console (includes Buttons & Control Board) (cosmetallic) |
|
- | |||||
| 5 | WP693995 | Screw, Ground (Replaces: 693995) |
|
Immediately | $ 7.55 | ||||
| 6 | WPW10653575 | Water Channel (include, Item. 12 ) (Replaces: W10317570) |
|
$ 90.94 | |||||
| 7 | W10309986 | Cable, Jumper (15) |
|
$ 16.85 | |||||
| 8 | W10309987 | Cable, Jumper (10) |
|
$ 13.08 | |||||
| 9 | WP488729 | Screw, 8-18 X 1/2 (Replaces: 3390647) |
|
Immediately | $ 8.28 | ||||
| 10 | W10267833 | Cable, Led User-interface |
|
- | |||||
| 11 | W11480682 | Bracket, Console (Replaces: W10208198) |
|
$ 81.21 | |||||
| 12 | W10317566 | Spring, Clip |
|
$ 9.16 |
