01 - Top And Console Parts


02 - Cabinet Parts


03 - Bulkhead Parts


04 - Door Parts


05 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart

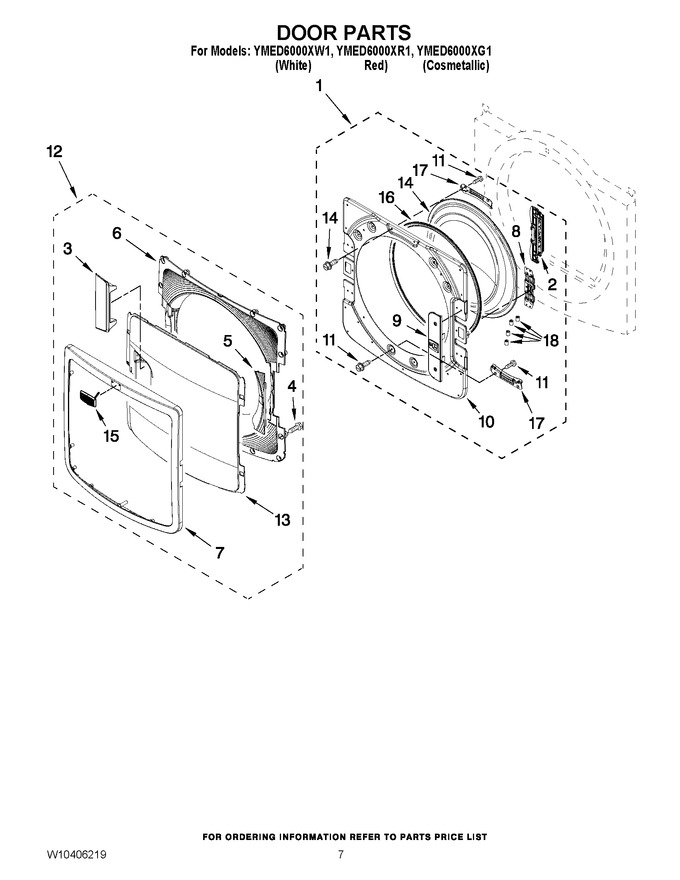

1	W11465962		Door Assembly Inner   (Replaces: W10272387)				$ 272.33
2	W11051465		Door Hinge Assembly   (Replaces: W10208414)			Immediately	$ 98.31
3	W10272398		Door Handle				$ 102.97
4	W10850046		Screw, 8-18 X 5/8   (Replaces: 9742177)			Immediately	$ 7.19
5	W10272400		Door Plug				$ 13.62
6	W10272392		Door-intermediate		Appelez-nous	-
7	W10272390		Trim Door				$ 162.19
8	WPW10208254		Door Catch Assembly   (Replaces: W10208254)				$ 81.28
9	W10272404		Cover, Door Catch				$ 64.79
10	W11491634		Inner Door   (Replaces: W10285652)				$ 240.91
11	W11661566		Screw, 10-32 X 1/2   (Replaces: W10288126)				$ 14.03
12	W10272389		Door, Outer Assembly				$ 235.46
13	W10272391		Screen, Outer Door				$ 158.20
14	W11310036		Glass, Door   (Replaces: W10208417)				$ 181.59
15	W10732500		Badge Assembly   (Replaces: W10316087)				$ 43.27
16	W11310036		Seal, Door   (Replaces: W10208417)				$ 181.59
17	W10208252		Bracket, Glass		Appelez-nous	-
18	WPW10208398		Cap, Hinge   (Replaces: W10208398)			Immediately	$ 21.47
