01 - Cabinet Parts
02 - Door Parts
03 - Liner Parts
04 - Unit Parts
05 - Icemaker Parts
06 - Shelf Parts
07 - Optional Parts
SELECT A DIAGRAM
New Model Search:

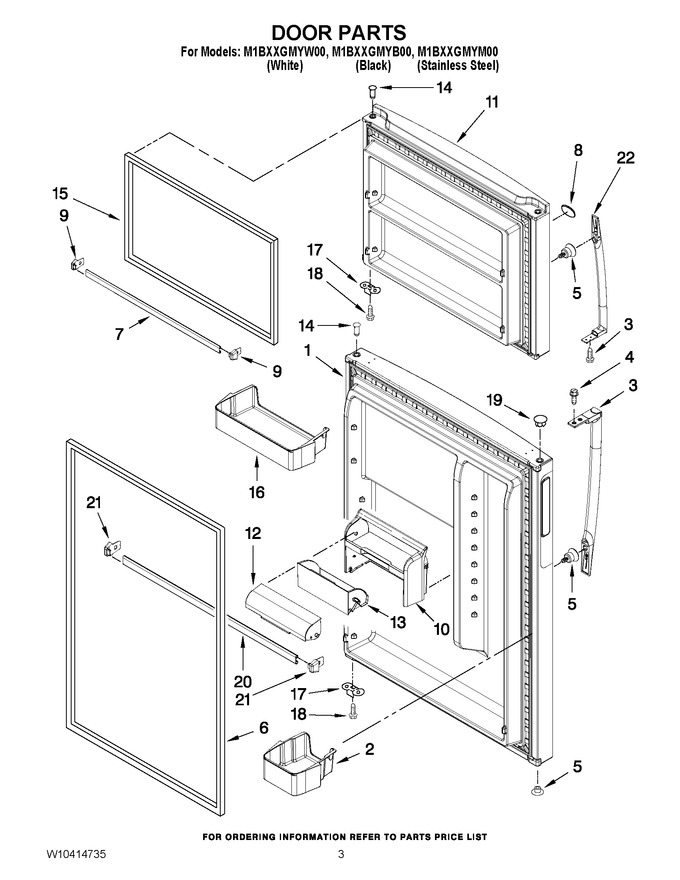

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10329586 | Refrigerator Door (includes Illus. 6 & 14) (white) |
|
- | |||||
| 1 | LW10353884 | Refrigerator Door (includes Illus. 6 & 14) (black) (Replaces: W10353884) |
|
$ 539.05 | |||||
| 1 | LW10353895 | Refrigerator Door (includes Illus. 6 & 14) (stainless Steel) (Replaces: W10353895) |
|
$ 654.32 | |||||
| 2 | WPW10308869 | Bin, Short (Replaces: W10331764) |
|
Immediately | $ 72.18 | ||||
| 3 | W10838896 | Handle, Refrigerator (white) (Replaces: W10366329) |
|
$ 69.17 | |||||
| 3 | WPW10370622 | Handle, Refrigerator (black) (Replaces: W10370622) |
|
Immediately | $ 53.24 | ||||
| 3 | W10370624 | Handle, Refrigerator (titanium Sparkle) |
|
$ 38.22 | |||||
| 4 | 8534058 | Screw |
|
$ 8.87 | |||||
| 5 | WPW10288153 | Screw, Mounting (Replaces: W10129563) |
|
Immediately | $ 9.65 | ||||
| 6 | W10249195 | Door Gasket, Magnetic (apollo Grey) (Replaces: W10171475) |
|
$ 335.80 | |||||
| 6 | 2177311 | Door Gasket, Magnetic (black) (Replaces: 2202882) |
|
$ 330.95 | |||||
| 6 | 2159061 | Door Gasket, Magnetic (mist Beige) (Replaces: 2202875) |
|
Immediately | $ 183.67 | ||||
| 7 | WPW10469912 | Trim, Fc (Replaces: W10308875) |
|
$ 170.45 | |||||
| 8 | WPW10170766 | Nameplate (Replaces: W10170766) |
|
Immediately | $ 70.50 | ||||
| 9 | W10338485 | Endcap Trim Ls |
|
$ 10.41 | |||||
| 9 | W10308871 | Endcap Trim Rs |
|
$ 10.44 | |||||
| 10 | W10308809 | Compartment |
|
$ 35.60 | |||||
| 11 | LW10329584 | Freezer Door (includes Illus. 14 & 15) (white) (Replaces: W10329584) |
|
$ 600.81 | |||||
| 11 | W10353317 | Freezer Door (includes Illus. 14 & 15) (stainless Steel) |
|
- | |||||
| 11 | LW10353297 | Freezer Door (includes Illus. 14 & 15) (black) (Replaces: W10353297) |
|
$ 636.58 | |||||
| 12 | WPW10308843 | Flip Door (Replaces: W10308843) |
|
$ 78.98 | |||||
| 13 | W10356444 | Bin, Tilt Out |
|
- | |||||
| 14 | W11189115 | Thimble (Replaces: W10334042) |
|
$ 12.71 | |||||
| 15 | 2177310 | Door Gasket, Magnetic (black) (Replaces: 2214969) |
|
$ 335.31 | |||||
| 15 | 2159060 | Door Gasket, Magnetic (mist Beige) (Replaces: 2214967) |
|
$ 336.01 | |||||
| 15 | W10249196 | Door Gasket, Magnetic (apollo Grey) (Replaces: W10171479) |
|
Immediately | $ 279.10 | ||||
| 16 | WPW10308868 | Bin Long (Replaces: W10331763) |
|
Immediately | $ 89.09 | ||||
| 17 | W11745278 | Bracket, Door Stop (Replaces: 2189202) |
|
Immediately | $ 13.37 | ||||
| 18 | WP681249 | Screw (Replaces: 489276) |
|
Immediately | $ 8.25 | ||||
| 19 | WP2212648 | Hole Plug (white) (Replaces: 2212648) |
|
Immediately | $ 8.19 | ||||
| 19 | WP2254517 | Hole Plug (apollo Grey) (Replaces: 2254517) |
|
Immediately | $ 24.34 | ||||
| 19 | WP2212651 | Hole Plug (black) (Replaces: 2212651) |
|
$ 24.21 | |||||
| 20 | WPW10469911 | Trim, Rc (Replaces: W10308874) |
|
$ 104.53 | |||||
| 21 | W10338485 | Endcap Trim Ls |
|
$ 10.41 | |||||
| 21 | W10308871 | Endcap Trim Rs |
|
$ 10.44 | |||||
| 22 | WPW10370622 | Handle, Freezer (black) (Replaces: W10370622) |
|
Immediately | $ 53.24 | ||||
| 22 | W10838896 | Handle, Freezer (white) (Replaces: W10366329) |
|
$ 69.17 | |||||
| 22 | W10370624 | Handle, Freezer (titanium Sparkle) |
|
$ 38.22 |
