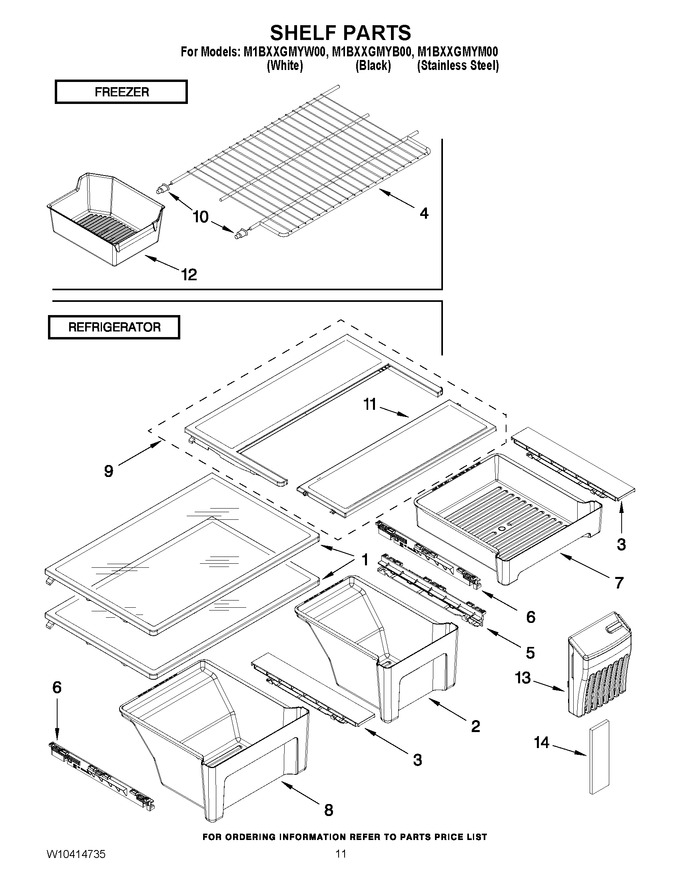

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10486289 | Shelf, Full |
|
$ 132.63 | |||||
| 2 | W10373935 | Crisper Pan W/sachet Mount |
|
$ 170.65 | |||||
| 3 | WPW10468557 | Trail Rail, Center (Replaces: W10404446) |
|
Immediately | $ 30.75 | ||||
| 4 | W10384386 | Shelf, Wire |
|
- | |||||
| 5 | WPW10468556 | Trail Rail, Rs (Replaces: W10404450) |
|
Immediately | $ 7.55 | ||||
| 6 | WPW10468555 | Trail Rail, Ls (Replaces: W10404449) |
|
Immediately | $ 25.10 | ||||
| 7 | WPW10310944 | Meat Pan (Replaces: W10310944) |
|
$ 148.80 | |||||
| 8 | W10373951 | Crisper Pan |
|
$ 93.48 | |||||
| 9 | W10352271 | Shelf, Flip Down Assembly |
|
$ 130.05 | |||||
| 10 | WPW10130299 | Cup, Shelf Mount (Replaces: W10130299) |
|
Immediately | $ 14.70 | ||||
| 11 | W10305248 | Shelf, Flip Down |
|
- | |||||
| 12 | 2254352A | Pan, Ice Cube (Replaces: 2254352) |
|
$ 58.64 | |||||
| 13 | W11605789 | Holder, Food Preserver (Replaces: W10408748) |
|
Immediately | $ 17.66 | ||||
| 14 | W10346771 | Food Preserver |
|
- |
