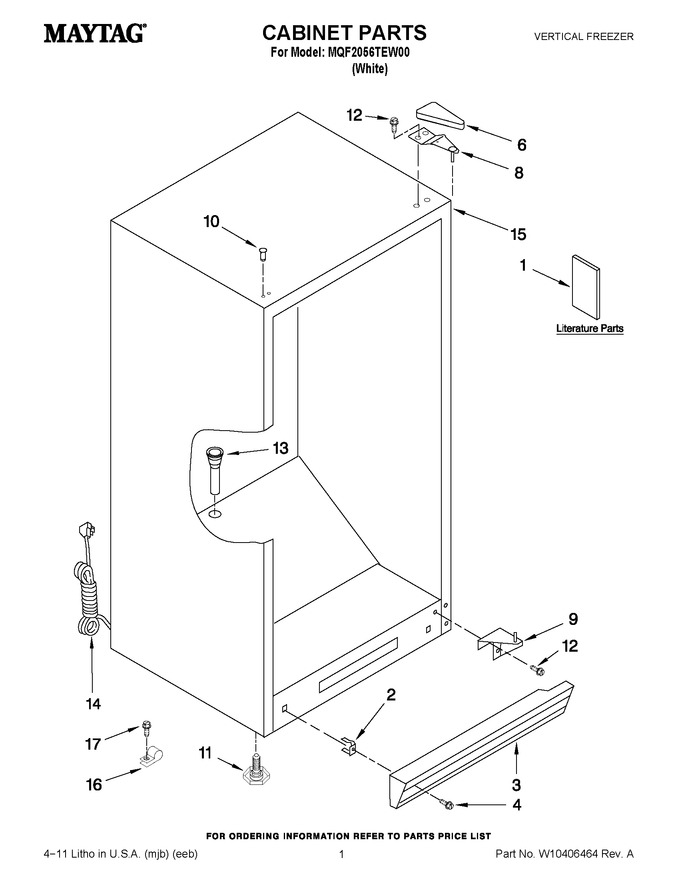

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10326798		Owners Manual		Appelez-nous	-
1	W10404291		Energy Label/tag		Appelez-nous	-
2	1-80247-101		Clip, Grille   (Replaces: 4356803)			Immediately	$ 10.35
3	4357261		Grille		Appelez-nous	-
4	WP489478		Screw   (Replaces: 4357243)				$ 7.36
6	4357279		Cover, Hinge				$ 46.56
8	2-81016-105		Hinge, Top				$ 38.92
9	4-82693-002		Hinge, Bottom				$ 75.73
10	WP2189000		Plug (white)   (Replaces: 4390596)			Immediately	$ 6.99
11	WP3-82710-001		Leveler Leg Kit   (Replaces: W10205065)			Immediately	$ 18.29
12	WP8204624		Screw   (Replaces: 4356830)				$ 15.73
13	W10164544		Grommet, Drain		Appelez-nous	-
14	8210403		Cord, Power (w/wiring Harness)		Appelez-nous	-
15	N/P		Cabinet (not A Serviceable Part)		Appelez-nous	-
16	4357159		Clamp, Tube		Appelez-nous	-
17	3-24004-049		Screw   (Replaces: 4356583)		Appelez-nous	-
