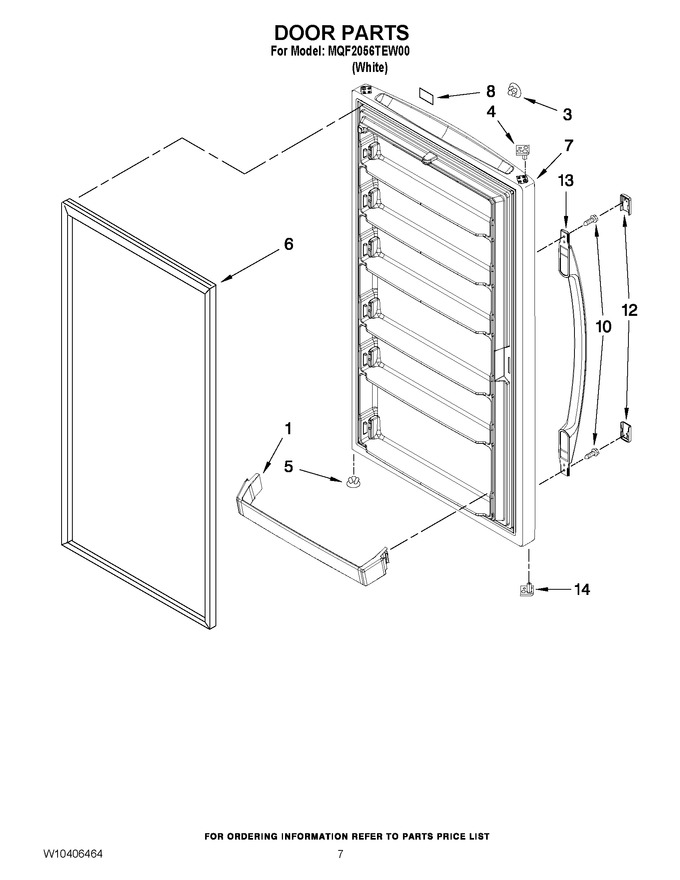

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP4-65451-001 | Rail, Door (Replaces: 8210404) |
|
$ 89.86 | |||||
| 3 | WP2189000 | Plug, Door (Replaces: 4390596) |
|
Immediately | $ 6.99 | ||||
| 4 | 8210400 | Stop, Door (upper) |
|
- | |||||
| 5 | 3-24898-007 | Vent Plug (Replaces: 4357067) |
|
$ 10.21 | |||||
| 6 | WP4-65151-004 | Gasket, Door (Replaces: 8210341) |
|
$ 344.65 | |||||
| 7 | 4-82827-047 | Door Assembly (includes Interior Door Liner) |
|
- | |||||
| 8 | WPW10170766 | Nameplate (Replaces: W10170766) |
|
Immediately | $ 63.45 | ||||
| 10 | WP488163 | Screw (Replaces: 488208) |
|
$ 7.13 | |||||
| 12 | 4390668 | Trim, Handle |
|
- | |||||
| 13 | 4-81902-001 | Handle |
|
- | |||||
| 14 | 8210400 | Stop, Door (lower) |
|
- |
