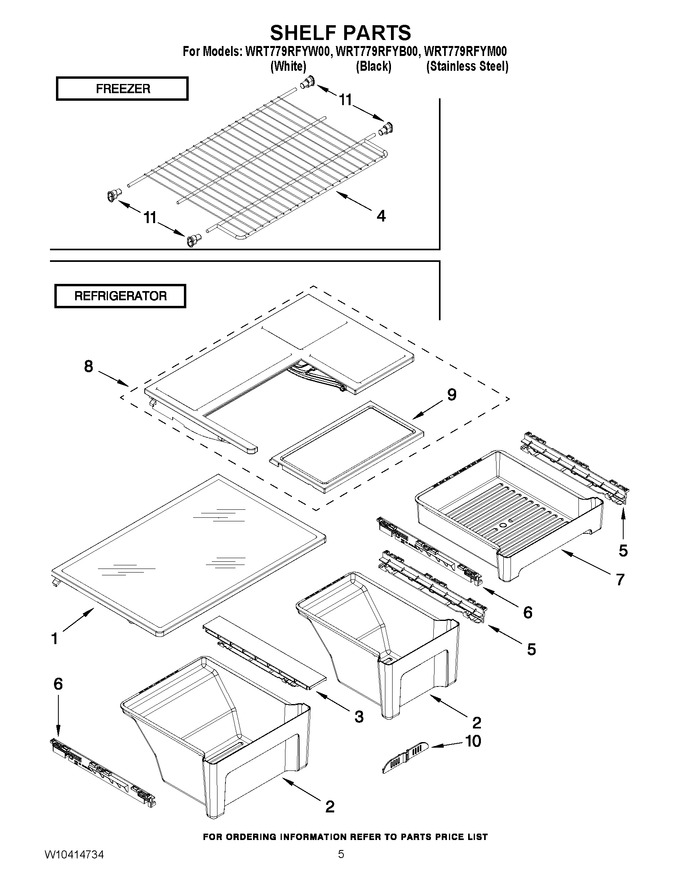

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WPW10486290 | Shelf Full 30`` (Replaces: W10308850) |
|
$ 263.28 | |||||
| 2 | W10373936 | Crisper Pans (16``) |
|
$ 68.71 | |||||
| 2 | W10373941 | Crisper Pans (8``) |
|
$ 64.07 | |||||
| 3 | WPW10468557 | Track Rail Center (Replaces: W10404446) |
|
Immediately | $ 30.75 | ||||
| 4 | W10477088 | Shelf Wire Fc (Replaces: W10384383) |
|
$ 180.29 | |||||
| 5 | WPW10468556 | Track Rail Rh (Replaces: W10404450) |
|
Immediately | $ 7.55 | ||||
| 6 | WPW10468555 | Track Rail Lh (Replaces: W10404449) |
|
Immediately | $ 25.10 | ||||
| 7 | WPW10308848 | Pan Meat 30`` (Replaces: W10308848) |
|
$ 162.37 | |||||
| 8 | WPW10502933 | Shelf, 2/3 Flip Assembly (Replaces: W10345378) |
|
$ 303.44 | |||||
| 9 | WPW10313893 | Shelf, 2/3 Flip (Replaces: W10313893) |
|
$ 190.30 | |||||
| 10 | W11590562 | Humidity Control (Replaces: W10356844) |
|
$ 23.45 | |||||
| 11 | WPW10130299 | Shelf Cup (Replaces: W10130299) |
|
Immediately | $ 14.70 |
