SELECT A DIAGRAM

01 - Cabinet Parts


02 - Liner Parts


03 - Shelf Parts


04 - Freezer Door Parts


05 - Refrigerator Door Parts

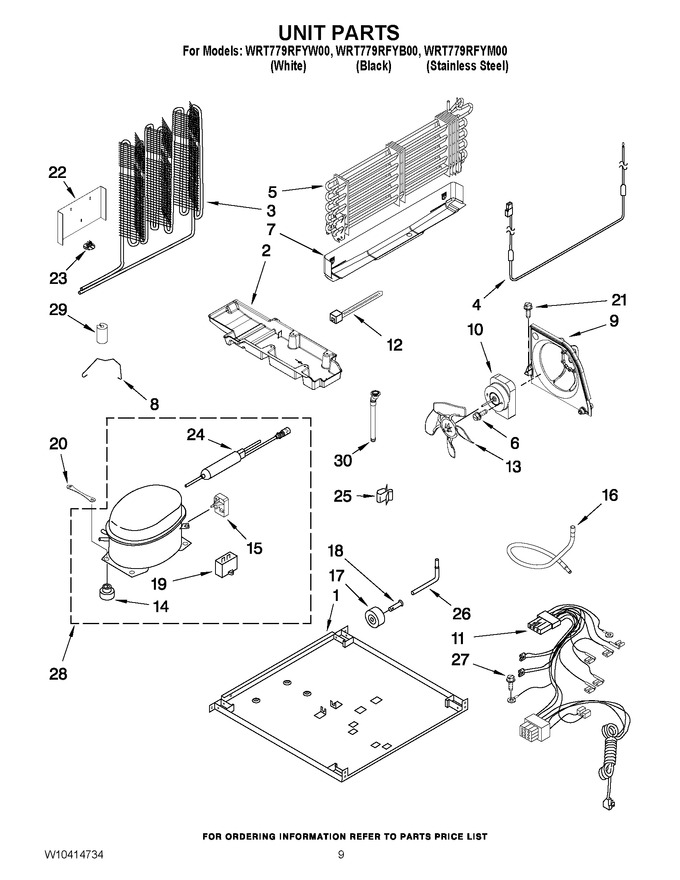

06 - Unit Parts


07 - Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10300116		Plate, Unit Mounting				$ 164.30
2	W10890667		Tray, Evaporator   (Replaces: W10314200)				$ 151.95
3	WPW10342567		Condenser   (Replaces: W10342567)				$ 278.20
4	WPW10316428		Heater, Defrost   (Replaces: W10316428)			Immediately	$ 257.91
5	WPW10314205		Evaporator Assy.   (Replaces: W10314205)				$ 361.39
6	W11501418		Screw   (Replaces: 8533961)		Appelez-nous	-
7	WPW10314195		Heat Shield   (Replaces: W10314195)				$ 101.34
8	W10174383		Bale Strap		Appelez-nous	-
9	WP2315541		Air Baffle   (Replaces: 2315541)			Immediately	$ 87.99
10	WP2188874		Motor, Condenser   (Replaces: 2188874)			Immediately	$ 113.96
11	W10405935		Wire Assembly, Unit				$ 154.68
12	WPW10339879		Strap   (Replaces: 2263990)				$ 8.30
13	WPW10139483		Fan Blade   (Replaces: W10139483)				$ 99.82
14	876811		Grommet (service)   (Replaces: 1100826)				$ 7.79
14	WPW10169124		Grommet (production)   (Replaces: 10835903)				$ 7.55
15	W10892065		Start-device, Combination (start Relay And Overload) (production)   (Replaces: W10330832)				$ 185.18
15	WPW10194431		Start-device Combination (start Relay And Overload) (service)   (Replaces: W10194431)			Immediately	$ 86.85
16	W10319864		Tube, Suction		Appelez-nous	-
17	WPW10475495		Roller   (Replaces: 2150304)			Immediately	$ 32.06
18	W11594405		Rivet   (Replaces: 2179826)			Immediately	$ 19.12
19	WPW10662129		Capacitor (service)   (Replaces: 2264017)			Immediately	$ 58.86
20	W10236396		Strap, Compressor			Immediately	$ 20.81
21	W11501418		Screw   (Replaces: 8533961)		Appelez-nous	-
22	W10349514		Cover, Condenser Bottom				$ 82.40
23	W10296661		Clip, Cover				$ 17.78
24	WPW10143759		Drier (service)   (Replaces: W10143759)			Immediately	$ 30.78
24	WPW10143759		Drier (production)   (Replaces: W10177049)			Immediately	$ 30.78
25	W10812039		Clip, Wire   (Replaces: 2326941)				$ 11.12
26	W11676464		Tube, Process   (Replaces: 2212848)				$ 108.61
27	WP489128		Screw   (Replaces: 488500)				$ 11.40
28	W10233960		Compressor (includes Items 14, 15, 19 & 24)   (Replaces: W10187125)			Immediately	$ 539.34
29	W10852725		Grommet, Condenser   (Replaces: 2319835)				$ 8.09
30	W11190084		Valve, Drain   (Replaces: W10316650)			Immediately	$ 65.56
NI	876764		Valve, Access (3/16``)			Immediately	$ 95.92
NI	N/P		Refrigerant Charge ((r-134a))		Appelez-nous	-
NI	WP978025		Valve, Access (1/4``)   (Replaces: 978025)			Immediately	$ 110.51
NI	978026		Valve, Access (5/16``)			Immediately	$ 134.49
NI	SF5538		Valve, Access (3/8``)   (Replaces: 978027)				$ 21.64
NI	978028		Valve, Access (1/2``)		Appelez-nous	-
NI	978029		Valve, Access (5/8``)				$ 93.85
NI	978030		Valve, Access (3/4``)				$ 137.25
