Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 W10195614 Tech Sheet/french Appelez-nous -
1 W10300597 Guide, Use & Care (spanish) Appelez-nous -
1 W10195613 Tech Sheet/english Appelez-nous -
1 W10321621 Instructions, Installation Appelez-nous -
1 W10395349 Energy Guide Appelez-nous -
1 W10300929 Guide, Use & Care (english/french) Appelez-nous -
2 W11806565 Arm, Hinge (left)   (Replaces: 8534854) In-Stock Immediately $ 142.39

2 W11806608 Arm, Hinge (right)   (Replaces: 8534853) In-Stock Immediately $ 142.24

3 W10850371 Vapor Barrier Assembly   (Replaces: W10321449) In-Stock Immediately $ 32.88

4 W10826179 Screw   (Replaces: W10316572) In-Stock Immediately $ 7.55

5 W10369028 Access Panel (biscuit) Special Order $ 170.73

5 W10827632 Access Panel (white)   (Replaces: W10369026) In-Stock Immediately $ 163.70

5 W10827631 Access Panel (black)   (Replaces: W10369024) In-Stock Immediately $ 195.64

6 W10195872 Panel, Full Front (includes Items 10, 16 & 19) (white) Special Order $ 171.59

6 WPW10195870 Panel, Full Front (includes Items 10, 16 & 19) (stainless)   (Replaces: W10195870) Special Order $ 397.17

6 W10195871 Panel, Full Front (includes Items 10, 16 & 19) (biscuit) Appelez-nous -
6 WPW10195873 Panel, Full Front (includes Items 10, 16 & 19) (black)   (Replaces: W10195873) Special Order $ 363.36

7 WPW10307614 Screw   (Replaces: W10307614) In-Stock Immediately $ 7.55

8 W10831329 Insulation Toe Panel   (Replaces: W10073540) In-Stock Immediately $ 43.30

9 W10195738 Handle Assembly (includes Item 7) (stainless) Appelez-nous -
9 W10195737 Handle Assembly (includes Item 7) (biscuit) Appelez-nous -
9 W10195736A Handle Assembly (includes Item 7) (white)   (Replaces: W10195736) Special Order $ 63.06

9 W10195735 Handle Assembly (includes Item 7) (black) Appelez-nous -
10 W11157086 Stud, Mounting   (Replaces: W10195726) In-Stock Immediately $ 8.87

11 W10319007 Light, Pipe Special Order $ 72.00

12 WPW10503548 Fastener (black)   (Replaces: W10331789) In-Stock Immediately $ 30.39

12 WPW10503549 Fastener (white)   (Replaces: W10331793) In-Stock Immediately $ 7.77

12 WPW10503550 Fastener (biscuit)   (Replaces: W10331794) Special Order $ 29.00

13 WP489069 Screw   (Replaces: 304392) In-Stock Immediately $ 8.40

14 W11116870 Bracket, Panel Control   (Replaces: W10194911) Special Order $ 89.95

15 WP3400071 Screw   (Replaces: 3400071) Special Order $ 8.26

16 WPW10243393 Nameplate (white)   (Replaces: W10243393) Special Order $ 69.98

16 WPW10243392 Nameplate (black)   (Replaces: W10243392) Special Order $ 73.70

16 WPW10243391 Nameplate (stainless)   (Replaces: W10243391) Special Order $ 58.31

16 W10243394 Nameplate (biscuit) Appelez-nous -
17 W11126003 Insulation Front Panel   (Replaces: W10315897) In-Stock Immediately $ 65.25


    View Diagram in Separate Window     Print Icon   Print Part List

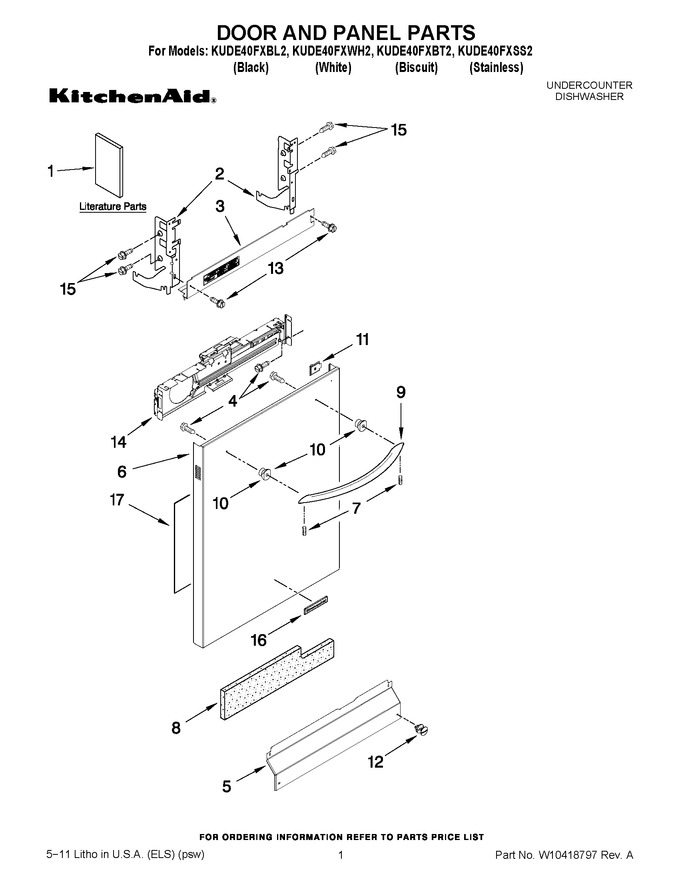

Diagram for KUDE40FXBL2
