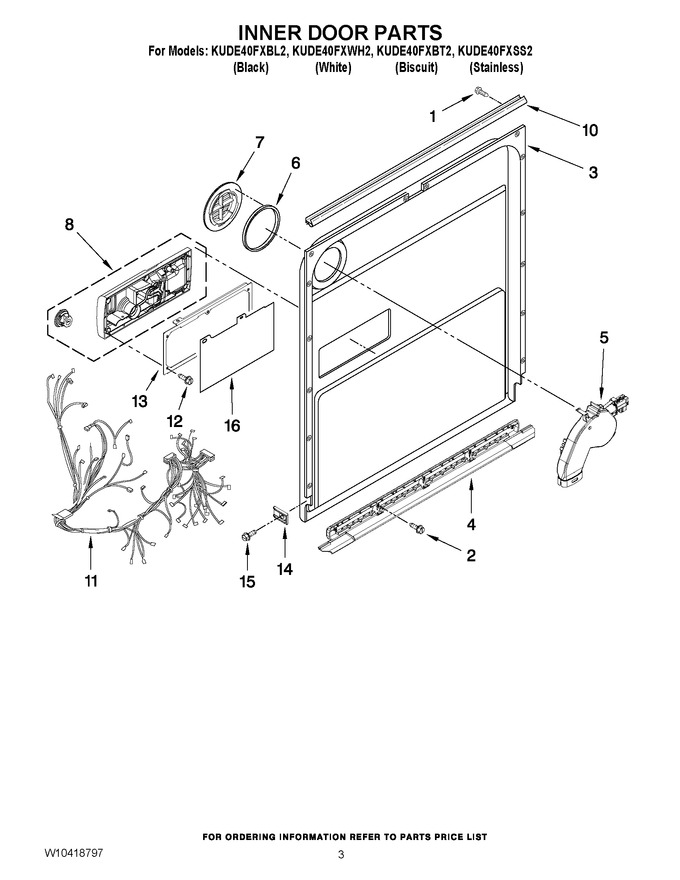

03 - Inner Door Parts


04 - Fill, Drain And Overfill Parts


05 - Tub And Frame Parts


06 - Pump, Washarm And Motor Parts


07 - Upper Wash And Rinse Parts


08 - Heater Parts


09 - Upper Rack And Track Parts


10 - Lower Rack Parts


11 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WPW10348409		Screw, Door   (Replaces: 3369051)			Immediately	$ 8.20
2	W11631670		Screw   (Replaces: 8281217)				$ 14.72
3	WPW10467363		Inner Door & Mastic Assembly (also Order Item 6)   (Replaces: W10195604)				$ 375.62
4	WPW10497235		Seal-door Bottom   (Replaces: W10195543)			Immediately	$ 10.19
5	WPW10469575		Vent Assembly (also Order Item 6)   (Replaces: W10195031)			Immediately	$ 141.80
6	WP8269259		Gasket, Vent   (Replaces: 8269259)			Immediately	$ 63.50
7	WPW10195032		Deflector, Vent (also Order Item 6)   (Replaces: W10195032)			Immediately	$ 80.13
8	W11032769		Dispenser, Assembly   (Replaces: W10304408)			Immediately	$ 135.92
10	WPW10195007		Seal, Console/door   (Replaces: W10195007)				$ 166.86
11	W10330838		Wiring Harness				$ 181.98
12	WPW10177098		Screw   (Replaces: W10177098)			Immediately	$ 8.02
13	WPW10462232		Bracket Dispenser   (Replaces: 8535637)				$ 37.79
14	W10195837		Barrier, Vapor Door				$ 30.01
15	WP3400071		Screw   (Replaces: 3400071)				$ 8.26
16	W10385977		Shield, Dispenser				$ 30.61
