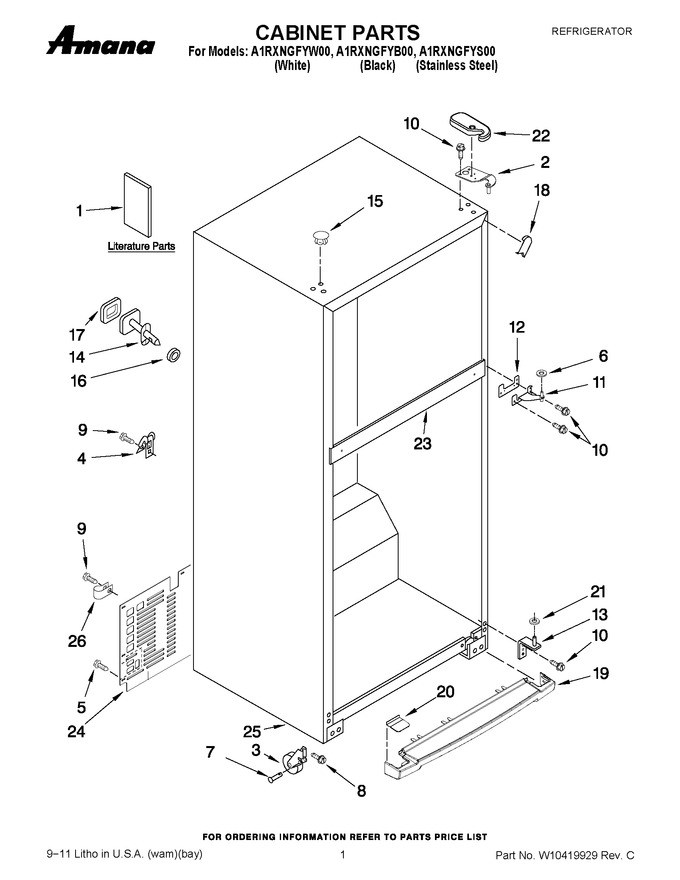

01 - Cabinet Parts
02 - Door Parts
03 - Liner Parts
04 - Unit Parts
05 - Shelf Parts
06 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10404596 | Service & Wiring Sheet |
|
- | |||||
| 1 | W10359280 | Use & Care Guide |
|
- | |||||
| 1 | 677969 | Do-it-yourself Manual, Ref./fzr. |
|
$ 30.30 | |||||
| 1 | W10359292 | Energy Label |
|
- | |||||
| 2 | WPW10300065 | Hinge (top) (Replaces: W10300065) |
|
$ 13.94 | |||||
| 3 | W10849386 | Roller, Front (2) (Replaces: W10327136) |
|
$ 114.75 | |||||
| 4 | 549193 | Clamp-service Cord |
|
$ 14.06 | |||||
| 5 | WP489427 | Screw (Replaces: 489427) |
|
$ 7.84 | |||||
| 6 | WP489467 | Washer (Replaces: 489341) |
|
Immediately | $ 11.42 | ||||
| 7 | W11594405 | Rivet (Replaces: 2179826) |
|
Immediately | $ 19.12 | ||||
| 8 | W10850698 | Screw (Replaces: 3400517) |
|
$ 14.42 | |||||
| 9 | WP489464 | Screw (Replaces: 8281265) |
|
Immediately | $ 8.38 | ||||
| 10 | WP489497 | Screw (Replaces: 489497) |
|
Immediately | $ 29.09 | ||||
| 11 | WP2254618 | Hinge, Center (Replaces: 2254618) |
|
Immediately | $ 92.02 | ||||
| 12 | WP2183852 | Shim, Hinge Center (Replaces: 2183852) |
|
$ 11.18 | |||||
| 13 | WP2254473 | Hinge Butt (Replaces: 2254473) |
|
$ 9.28 | |||||
| 14 | N/P | Fitting, Water Tube (not Serviced) |
|
- | |||||
| 15 | WP2151652 | Hole Plug (6) (white) (Replaces: 2201012) |
|
$ 22.87 | |||||
| 15 | WP2183998 | Hole Plug (6) (black) (Replaces: 2183998) |
|
$ 19.01 | |||||
| 16 | N/P | Seal, Front (not Serviced) |
|
- | |||||
| 17 | N/P | Seal, Rear (not Serviced) |
|
- | |||||
| 18 | WPW10283959 | Corner Filler (2) (white) (Replaces: W10283959) |
|
$ 8.21 | |||||
| 18 | W11252732 | Corner Filler (2) (black) (Replaces: W10283960) |
|
$ 13.07 | |||||
| 19 | WPW10353939 | Grille (includes Illus. 20) (black) (Replaces: W10353939) |
|
$ 169.90 | |||||
| 19 | WPW10300129 | Grille (includes Illus. 20) (white) (Replaces: W10300129) |
|
$ 109.55 | |||||
| 20 | W10353930 | Endcap, Grille (black) |
|
$ 85.34 | |||||
| 20 | WPW10339257 | Endcap, Grille (white) (Replaces: W10339257) |
|
$ 85.42 | |||||
| 21 | WP487576 | Washer (Replaces: 487576) |
|
Immediately | $ 9.88 | ||||
| 22 | W10353945A | Cover, Hinge (black Rs) (Replaces: W10353945) |
|
$ 15.13 | |||||
| 22 | W10331654 | Cover, Hinge (white Ls) |
|
- | |||||
| 22 | W10331560A | Cover, Hinge (white Rs) (Replaces: W10331560) |
|
$ 13.44 | |||||
| 22 | W10353948A | Cover, Hinge (black Ls) (Replaces: W10353948) |
|
$ 15.13 | |||||
| 23 | N/P | Rail, Center (not Serviced) |
|
- | |||||
| 24 | WPW10384414 | Cover, Unit (Replaces: W10384414) |
|
$ 106.82 | |||||
| 25 | N/P | Cabinet (not A Serviceable Part) |
|
- | |||||
| 26 | WP488366 | Tube Clamp (Replaces: 489385) |
|
$ 11.92 |
