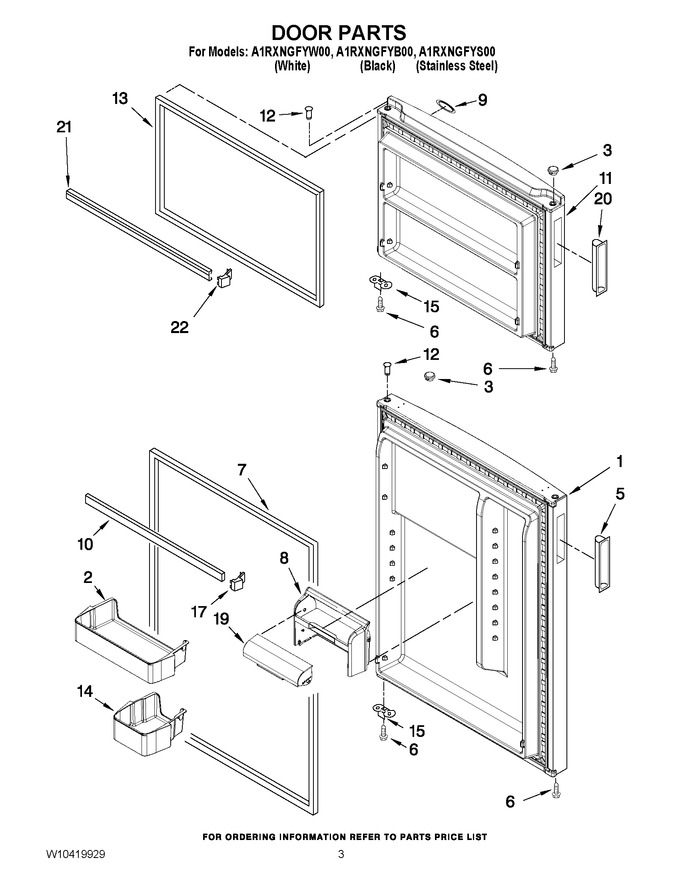

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | LW10406232 | Refrigerator Door (black) (Replaces: W10406232) |
|
- | |||||
| 1 | LW10406233 | Refrigerator Door (stainless Steel) (Replaces: W10406233) |
|
- | |||||
| 1 | LW10406231 | Refrigerator Door (white) (Replaces: W10406231) |
|
- | |||||
| 2 | W10349246 | Bin Door |
|
- | |||||
| 3 | WP2212648 | Plug Hinge (white) (Replaces: 2212648) |
|
Immediately | $ 8.19 | ||||
| 3 | WP2212651 | Plug Hinge (black) (Replaces: 2212651) |
|
$ 24.21 | |||||
| 5 | W10174743 | Handle Cup (black) |
|
$ 15.93 | |||||
| 5 | W10182940 | Handle Cup (white) |
|
$ 72.41 | |||||
| 6 | WP681249 | Screw (Replaces: 489276) |
|
Immediately | $ 8.25 | ||||
| 7 | 2177311 | Door Gasket, Magnetic (black) (Replaces: 2202882) |
|
$ 330.95 | |||||
| 7 | 2159061 | Door Gasket, Magnetic (mist Beige) (Replaces: 2202875) |
|
Immediately | $ 183.67 | ||||
| 8 | W10308809 | Housing Compartment |
|
$ 35.60 | |||||
| 9 | 2325418 | Nameplate |
|
$ 44.68 | |||||
| 10 | WPW10469911 | Trim, Door Shelf (Replaces: W10308874) |
|
$ 104.53 | |||||
| 11 | LW10406253 | Freezer Door (stainless Steel) (Replaces: W10406253) |
|
- | |||||
| 11 | LW10406252 | Freezer Door (black) (Replaces: W10406252) |
|
- | |||||
| 11 | LW10406233 | Freezer Door (white) (Replaces: W10406233) |
|
- | |||||
| 12 | W11189115 | Thimble (Replaces: W10334042) |
|
$ 12.71 | |||||
| 13 | 2159060 | Door Gasket, Magnetic (mist Beige) (Replaces: 2214967) |
|
$ 336.01 | |||||
| 13 | 2177310 | Door Gasket, Magnetic (black) (Replaces: 2214969) |
|
$ 335.31 | |||||
| 14 | W10349245 | Bin Door |
|
- | |||||
| 15 | W11745278 | Bracket, Door Stop (2) (Replaces: 2189202) |
|
Immediately | $ 13.37 | ||||
| 17 | W10338485 | Endcap Trim Ls |
|
$ 10.41 | |||||
| 17 | W10308871 | Endcap Trim Rs |
|
$ 10.44 | |||||
| 19 | WPW10308843 | Compartment Door (Replaces: W10308843) |
|
$ 78.98 | |||||
| 20 | W10174743 | Handle Cup (black) |
|
$ 15.93 | |||||
| 20 | W10182940 | Handle Cup (white) |
|
$ 72.41 | |||||
| 21 | WPW10469912 | Trim, Door (Replaces: W10308875) |
|
$ 170.45 | |||||
| 22 | W10338485 | Endcap Trim Ls |
|
$ 10.41 | |||||
| 22 | W10308871 | Endcap Trim Rs |
|
$ 10.44 |
