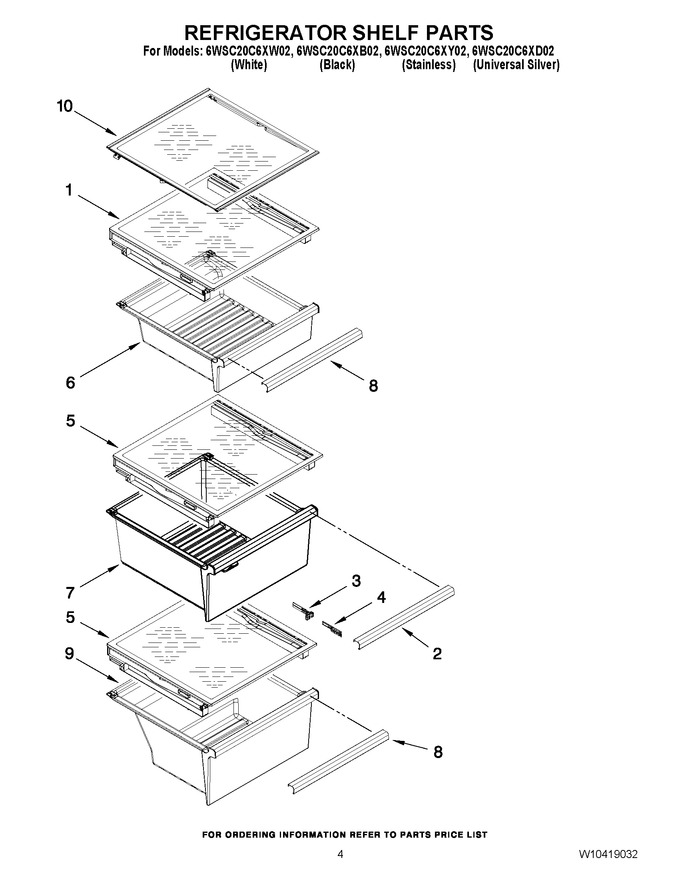

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10290863		Shelf, Snack Pan		Appelez-nous	-
2	W10309635		Trim, Handle		Appelez-nous	-
3	W11746089		Slide, Humidity   (Replaces: W10282883)				$ 30.50
4	W11746089		Housing, Humidity   (Replaces: W10282880)				$ 30.50
5	W10290871		Cover, Assy		Appelez-nous	-
6	W11551764		Snack Pan (also Order 8)   (Replaces: W10256846)				$ 102.61
7	WPW10292504		Crisper Pan (also Order 2, 3, & 4)   (Replaces: W10292504)			Immediately	$ 148.88
8	W10309636		Trim, Handle   (Replaces: W10281628)		Appelez-nous	-
9	W11789833		Meat Pan (also Order 8)   (Replaces: W10256854)				$ 181.06
10	WPW10269156		Shelf Assy   (Replaces: W10269156)				$ 159.82
