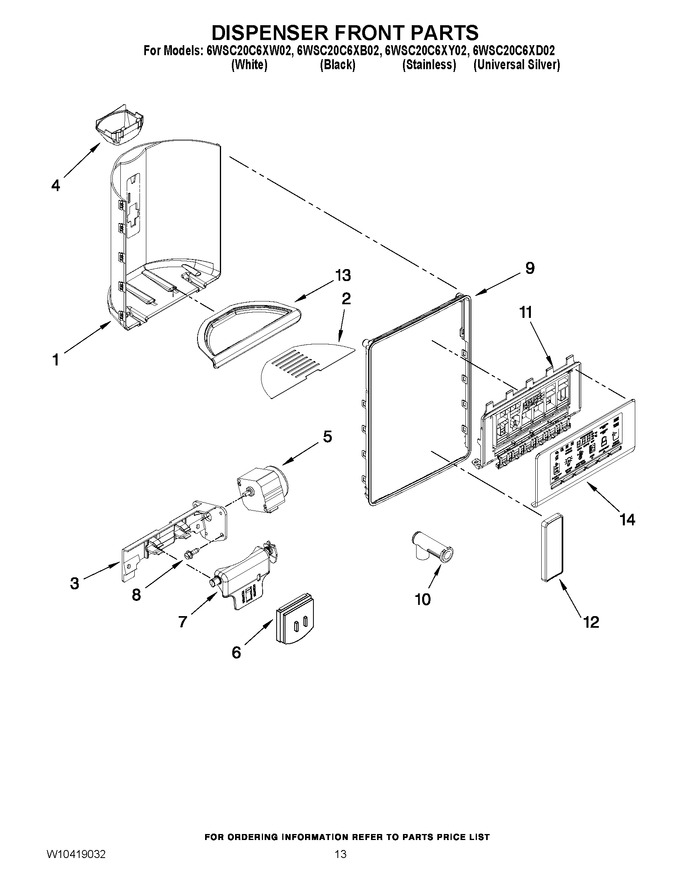

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	N/P		Housing, Dispenser (not Serviced)		Appelez-nous	-
2	W10276255		Grate, Drip Tray		Appelez-nous	-
3	W10174827		Bracket, Ice Door				$ 76.42
4	W10499850		Chute, Door   (Replaces: W10174808)				$ 104.67
5	WPW10205978		Motor, Ice Door   (Replaces: W10205978)				$ 104.12
6	W10346235		Door, Ice   (Replaces: W10174811)				$ 170.32
7	W10499850		Support, Ice Door   (Replaces: W10174809)				$ 104.67
8	WP4449745		Screw   (Replaces: 4449745)				$ 7.98
9	W10276248		Trim Ring		Appelez-nous	-
10	W11566468		Spigot   (Replaces: W10294737)			Immediately	$ 58.56
11	WPW10372212		Electronic Control Assy   (Replaces: W10254295)				$ 283.14
12	WPW10370594		Pad, Ice & Water (midnight Grey)   (Replaces: W10290362)				$ 310.61
12	WPW10370592		Pad, Ice & Water (black)   (Replaces: W10238111)				$ 322.90
12	WPW10370593		Pad, Ice & Water (white)   (Replaces: W10290361)				$ 311.61
13	W10276252		Tray, Housing (white)		Appelez-nous	-
13	W10276254		Tray, Housing (satina)		Appelez-nous	-
13	W10276253		Tray, Housing (black)		Appelez-nous	-
14	W10254300		Front Cover		Appelez-nous	-
