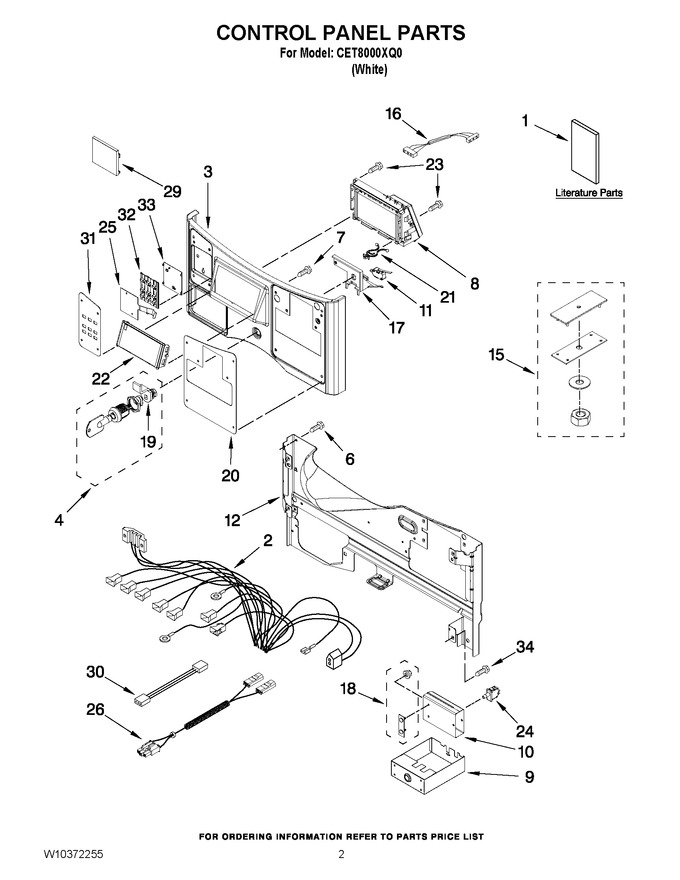

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10335467 | Installation Instruction |
|
- | |||||
| 1 | W10394865 | Tech Sheet |
|
- | |||||
| 1 | W10372255 | Parts List |
|
- | |||||
| 2 | W10242900 | Harness, Main |
|
- | |||||
| 3 | W11181684 | Panel Assembly (Replaces: W10198202) |
|
- | |||||
| 4 | W11231586 | Service & Programming Lock (Replaces: W10198223) |
|
- | |||||
| 6 | WP488729 | Screw, 8-18 X 1/2 (Replaces: 3390647) |
|
Immediately | $ 8.28 | ||||
| 7 | 3400408 | Screw, 4-40 X 5/8 |
|
- | |||||
| 8 | W10198221 | Techbox Assembly |
|
$ 257.96 | |||||
| 9 | W11204019 | Coin-box (Replaces: W10133248) |
|
$ 163.85 | |||||
| 10 | W11204020 | Vault-body Assembly (Replaces: W10133258) |
|
$ 421.72 | |||||
| 11 | WPW10447152 | Service Access, Switch (Replaces: W10133280) |
|
$ 43.26 | |||||
| 12 | W10198303 | Bracket Assembly, Console |
|
- | |||||
| 15 | W11416034 | Kit-coin Box, Security (to Be Serviced As A Kit) (Replaces: W10169579) |
|
$ 132.30 | |||||
| 16 | W11700545 | Harness, Wire Dryer Ccu To Uic (Replaces: W10242897) |
|
$ 32.68 | |||||
| 17 | W10198375 | Support-console |
|
- | |||||
| 18 | W10159907 | Mounting Strap, Weld Assembly |
|
- | |||||
| 19 | W11165684 | Cam-lock (Replaces: W10133266) |
|
$ 9.57 | |||||
| 20 | W10198335 | Fascia |
|
- | |||||
| 21 | 8019P013-60 | Clip, Nylon |
|
$ 15.70 | |||||
| 22 | W10198390 | Window Display |
|
$ 86.45 | |||||
| 23 | WPW10273971 | Screw, 6-19 X 1/2 (Replaces: W10192860) |
|
Immediately | $ 7.55 | ||||
| 24 | WPW10131838 | Switch - Vault & Service Door (Replaces: W10131838) |
|
$ 25.11 | |||||
| 25 | W10198342 | Assembly, Membrane Switch |
|
- | |||||
| 26 | W10300896 | Wire Harness, Vault Switch |
|
- | |||||
| 29 | W10198366 | Cover Pd/pn |
|
- | |||||
| 30 | W10342214 | Cable Set, Ui To Ccu Communication |
|
$ 73.16 | |||||
| 31 | W10198331 | Fascia Buttons |
|
- | |||||
| 32 | W10198311 | Button-set |
|
- | |||||
| 33 | W10198383 | Support Switch |
|
- | |||||
| 34 | WPW10131119 | Screw,8-18 X 1/2 (Replaces: W10386302) |
|
$ 7.30 |
