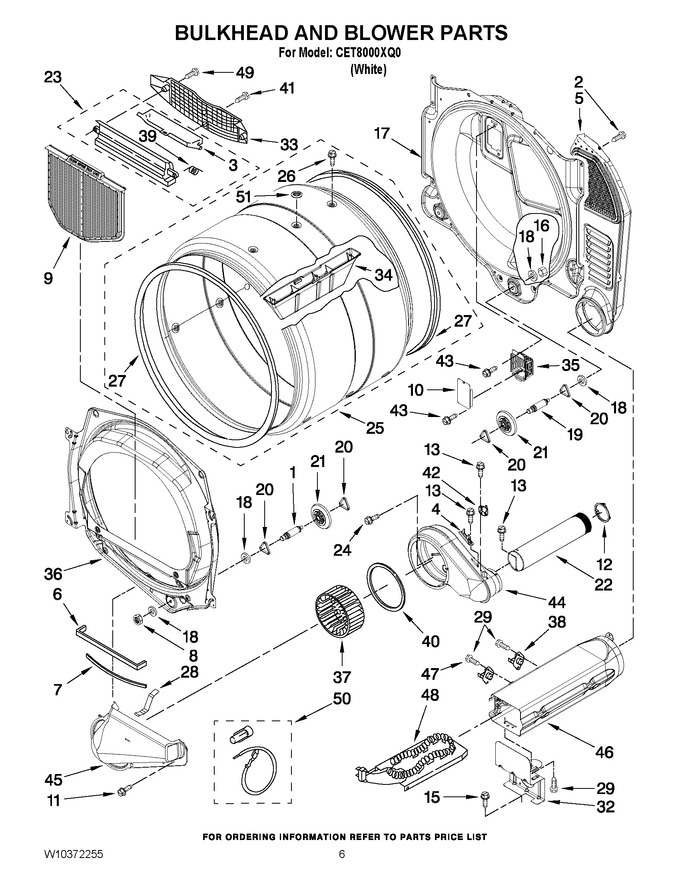

03 - Bulkhead And Blower Parts


04 - Dryer Door Parts


05 - Washer Door Parts


06 - Washer Cabinet Parts


07 - Dispenser Parts


08 - Tub And Basket Parts


09 - Pump And Motor Parts


10 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WPW10359271		Shaft, R.h. Thread   (Replaces: W10359271)			Immediately	$ 62.21
2	WP488729		Screw, 8-18 X 1/2   (Replaces: 3390647)			Immediately	$ 8.28
3	W11222846		Door, Lint Screen   (Replaces: W10153413)			Immediately	$ 213.91
4	WP3392519		Thermal - Fuse (91° C)   (Replaces: 3392519)			Immediately	$ 24.95
5	WP3387911		Air Duct Assembly   (Replaces: 697354)				$ 327.31
6	WP697813		Foam-seal   (Replaces: 697813)			Immediately	$ 8.37
7	WP697813		Seal, Drum Front   (Replaces: 697814)			Immediately	$ 8.37
8	W11812294		Nut,3/8 X 16(r.h.)   (Replaces: 3934666)				$ 12.77
9	W10120998		Lint, Screen   (Replaces: W10049370)				$ 67.16
10	W11226088		Lens, Drum Light   (Replaces: 3402841)				$ 32.64
11	W11693756		Screw, 8-18 X 1/2   (Replaces: 359625)			Immediately	$ 14.76
12	WPW10344699		Collar-duct   (Replaces: W10344699)				$ 85.70
13	WP90767		Screw,8-18 X 5/16   (Replaces: 8533971)			Immediately	$ 8.25
15	WP693995		Screw, 8-18 X 3/8   (Replaces: 693995)			Immediately	$ 7.55
16	WPW10080190		Nut, 3/8-16 (l.h.)   (Replaces: W10001120)			Immediately	$ 10.01
17	WPW10080170		Bulkhead, Rear   (Replaces: W10080170)				$ 356.42
18	W11236646		Washer, Support   (Replaces: 3387459)			Immediately	$ 14.73
19	WPW10359272		Shaft, L.h. Thread   (Replaces: W10359272)			Immediately	$ 58.48
20	WPW10512946		Ring, Tri   (Replaces: 690997)			Immediately	$ 8.80
21	WPW10314173		Roller, Support   (Replaces: W10314171)			Immediately	$ 28.50
22	WP8563728		Exhaust Pipe   (Replaces: 8563728)				$ 144.84
23	W11219327		Housing, Outlet Assembly   (Replaces: W10153423)				$ 95.07
24	WP489463		Screw, 8-18 X 5/8   (Replaces: 489463)				$ 8.25
25	W10865330		Complete Drum Assembly   (Replaces: W10153420)				$ 393.40
26	W10853898		Screw, 8-16 X 3/4   (Replaces: W10219342)			Immediately	$ 8.18
27	280114		Seal, Drum   (Replaces: W10166807)			Immediately	$ 70.82
28	WP8066208		Clip Spring   (Replaces: 8066208)				$ 8.83
29	WP90767		Screw, 8-18 X 3/8   (Replaces: 90767)			Immediately	$ 8.25
32	W10198340		Bracket, Heater Box		Appelez-nous	-
33	W11086603		Grille, Outlet   (Replaces: W10153412)			Immediately	$ 36.90
34	W10852390		Baffle, Drum   (Replaces: W10153409)				$ 146.31
35	W10465334		Bracket, Drum Light   (Replaces: W10410531)		Appelez-nous	-
36	8565061		Bulkhead, Front				$ 253.62
37	WPW10349492		Wheel, Blower   (Replaces: W10349492)			Immediately	$ 120.33
38	279973		Thermal Cut-off (includes Item. 47 )   (Replaces: 8318314)			Immediately	$ 75.60
39	WP3394986		Spring, Lint Screen Door   (Replaces: 3394986)				$ 93.47
40	WP697770		Foam-seal   (Replaces: 697770)			Immediately	$ 8.27
41	WP488729		Screw, 8-18 X 1/2   (Replaces: 695240)			Immediately	$ 8.28
42	WP8577274		Thermistor   (Replaces: 8577274)			Immediately	$ 43.61
43	WP488729		Screw, 8-15 X 1/2   (Replaces: 487909)			Immediately	$ 8.28
44	W10888146		Housing, Blower   (Replaces: 8544362)				$ 106.79
45	WPW10128606		Lint Duct Assembly   (Replaces: 8066168)				$ 217.48
46	W10802681		Heater Box   (Replaces: 3392537)			Immediately	$ 129.67
47	WP3391914		Thermostat, High-limit 295/215-nc   (Replaces: 3391914)			Immediately	$ 119.47
48	W10864898		Heater Element   (Replaces: 3387748)				$ 335.60
49	WP3387230		Screw, 10-16 X 1   (Replaces: 3387230)			Immediately	$ 8.54
50	279457		Terminal Wire Kit (for Heater Element Wiring Harness Repair)			Immediately	$ 7.92
51	W10665050		Drum, Caplug   (Replaces: W10128544)				$ 20.15
