SELECT A DIAGRAM
01 - Cover Sheet

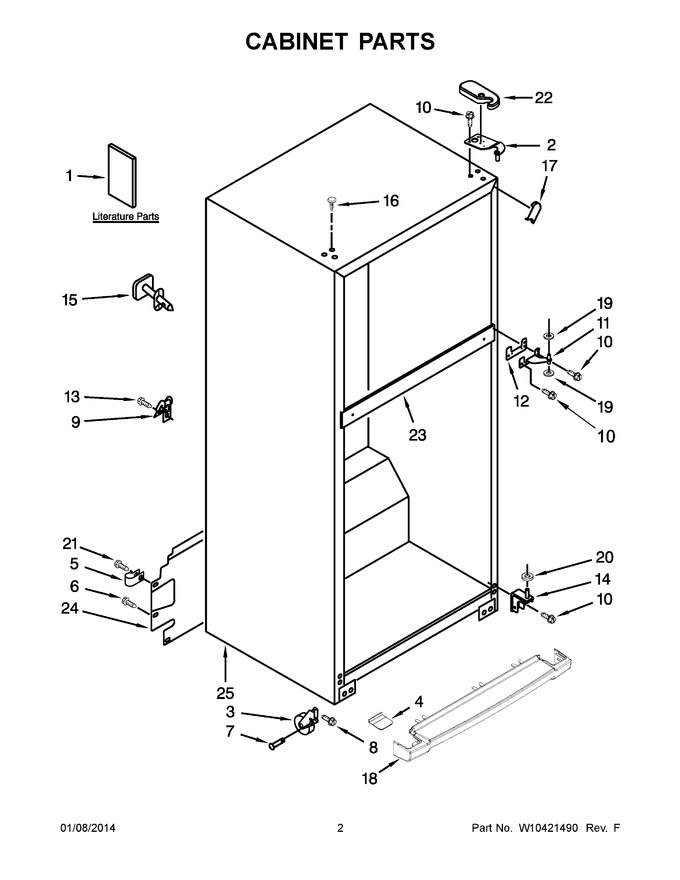

02 - Cabinet Parts
03 - Liner Parts
04 - Shelf Parts
05 - Door Parts
06 - Unit Parts
07 - Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10551695 | Use And Care Guide |
|
- | |||||
| 1 | 2225623 | Icemaker Service Sheet |
|
- | |||||
| 1 | W10536508 | Service And Wiring Sheet |
|
- | |||||
| 1 | W10361785 | Energy Guide |
|
- | |||||
| 2 | WPW10300065 | Hinge (top) (Replaces: W10300069) |
|
$ 12.55 | |||||
| 3 | W10849386 | Assembly, Roller (Replaces: W10327136) |
|
$ 103.28 | |||||
| 4 | WPW10339257 | Endcap, Grille (white) (Replaces: W10339257) |
|
$ 76.88 | |||||
| 4 | W10353930 | Endcap, Grille (black) |
|
$ 76.81 | |||||
| 4 | WPW10353932 | Endcap, Grille (grey) (Replaces: W10353932) |
|
$ 76.95 | |||||
| 5 | W11456069 | Clamp-tube (Replaces: M0108107) |
|
Immediately | $ 20.16 | ||||
| 6 | WP489442 | Screw (Replaces: 489442) |
|
Immediately | $ 10.34 | ||||
| 7 | W11594405 | Axle, Rivet (Replaces: 2179826) |
|
Immediately | $ 17.21 | ||||
| 8 | 3400524 | Bolt (Replaces: W10142287) |
|
$ 11.95 | |||||
| 9 | 549193 | Clamp, Power Cord |
|
$ 12.65 | |||||
| 10 | WP489497 | Screw (Replaces: 489497) |
|
Immediately | $ 26.18 | ||||
| 11 | WP2254618 | Hinge, Center (Replaces: 2254618) |
|
Immediately | $ 82.82 | ||||
| 12 | WP2183852 | Shim, Hinge Center (Replaces: 2183852) |
|
$ 10.06 | |||||
| 13 | WP488729 | Screw (Replaces: 2262176) |
|
Immediately | $ 7.45 | ||||
| 14 | WP2254473 | Hinge, Bottom (Replaces: 2254473) |
|
Immediately | $ 8.35 | ||||
| 15 | N/P | Fitting, Water Tube (not Serviced) |
|
- | |||||
| 16 | WPW10520304 | Plug, Hole (white) (Replaces: W10520304) |
|
Immediately | $ 17.30 | ||||
| 16 | WPW10520307 | Plug, Hole (grey) (Replaces: 2254506) |
|
Immediately | $ 6.80 | ||||
| 16 | WPW10520305 | Plug, Hole (black) (Replaces: W10520305) |
|
$ 17.26 | |||||
| 17 | WPW10283959 | Filler, Corner (white) (Replaces: W10283959) |
|
$ 7.39 | |||||
| 17 | W11252732 | Filler, Corner (black) (Replaces: W10283960) |
|
$ 11.76 | |||||
| 17 | W10851579 | Filler, Corner (grey) (Replaces: W10283961) |
|
Immediately | $ 6.80 | ||||
| 18 | W10353942 | Grille (black) |
|
$ 136.26 | |||||
| 18 | W10326387 | Grille (white) |
|
$ 138.31 | |||||
| 18 | W10353944 | Grille (grey) |
|
$ 137.40 | |||||
| 19 | WP489467 | Washer, Plastic (Replaces: 489341) |
|
Immediately | $ 10.28 | ||||
| 20 | WP487576 | Washer, Plastic (Replaces: 487576) |
|
Immediately | $ 9.67 | ||||
| 21 | WP489427 | Screw (Replaces: 489427) |
|
$ 7.06 | |||||
| 22 | W10331654 | Cover, Hinge (left Hand (white)) |
|
- | |||||
| 22 | W10353948A | Cover, Hinge (left Hand (black)) (Replaces: W10353948) |
|
$ 13.62 | |||||
| 22 | W10331560A | Cover, Hinge (right Hand (white)) (Replaces: W10331560) |
|
$ 12.10 | |||||
| 22 | W10353947A | Cover, Hinge (right Hand (grey)) (Replaces: W10353947) |
|
$ 12.85 | |||||
| 22 | W10353950A | Cover, Hinge (left Hand (grey)) (Replaces: W10353950) |
|
$ 21.94 | |||||
| 22 | W10353945A | Cover, Hinge (right Hand (black)) (Replaces: W10353945) |
|
$ 13.62 | |||||
| 23 | N/P | Rail, Center (not Serviced) |
|
- | |||||
| 24 | WPW10384414 | Cover, Unit (Replaces: W10384414) |
|
$ 96.14 | |||||
| 25 | N/P | Cabinet (not A Serviceable Part) |
|
- |
