View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cover Sheet
02 - Cabinet Parts
03 - Liner Parts

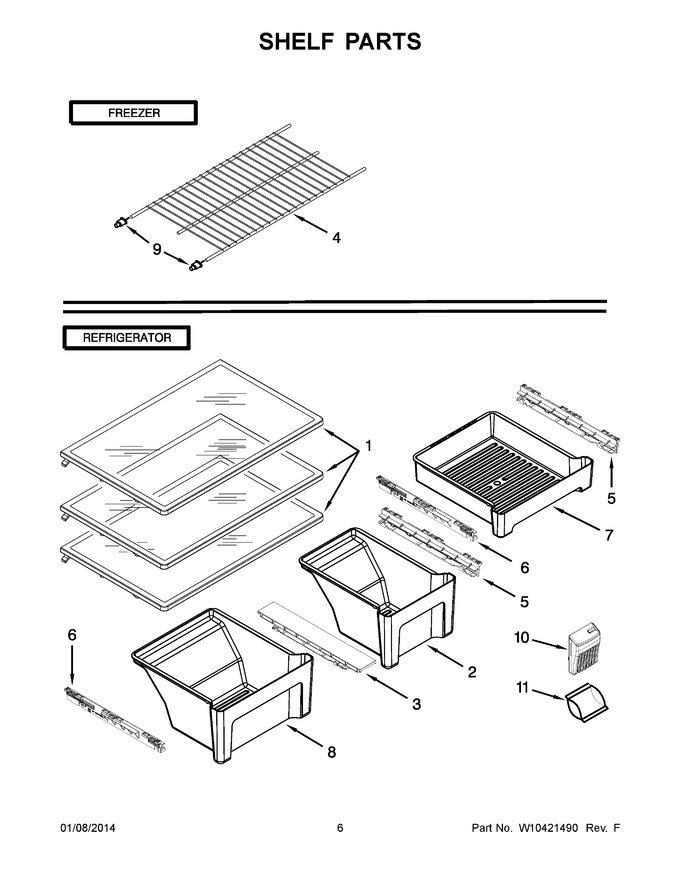

04 - Shelf Parts
05 - Door Parts
06 - Unit Parts
07 - Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10486289 | Assembly, Shelf |
|
$ 132.63 | |||||
| 2 | W10373935 | Pan, Crisper (includes Produce Filter Holder) |
|
$ 153.59 | |||||
| 3 | WPW10468557 | Rail, Track (center) (Replaces: W10468557) |
|
Immediately | $ 27.68 | ||||
| 4 | W10477093 | Shelf, Wire |
|
- | |||||
| 5 | WPW10468556 | Rail, Track (right Hand) (Replaces: W10468556) |
|
Immediately | $ 6.80 | ||||
| 6 | WPW10468555 | Rail, Track (left Hand) (Replaces: W10468555) |
|
Immediately | $ 22.59 | ||||
| 7 | WPW10308849 | Pan, Meat (Replaces: W10308849) |
|
$ 127.98 | |||||
| 8 | W10373951 | Pan, Crisper |
|
$ 93.48 | |||||
| 9 | WPW10130299 | Cup, Shelf (Replaces: W10130299) |
|
Immediately | $ 13.23 | ||||
| 10 | W11605789 | Holder, Produce Filter (Replaces: W10408748) |
|
Immediately | $ 15.89 | ||||
| 11 | W10346771 | Filter, Produce Preserver |
|
- |
