SELECT A DIAGRAM

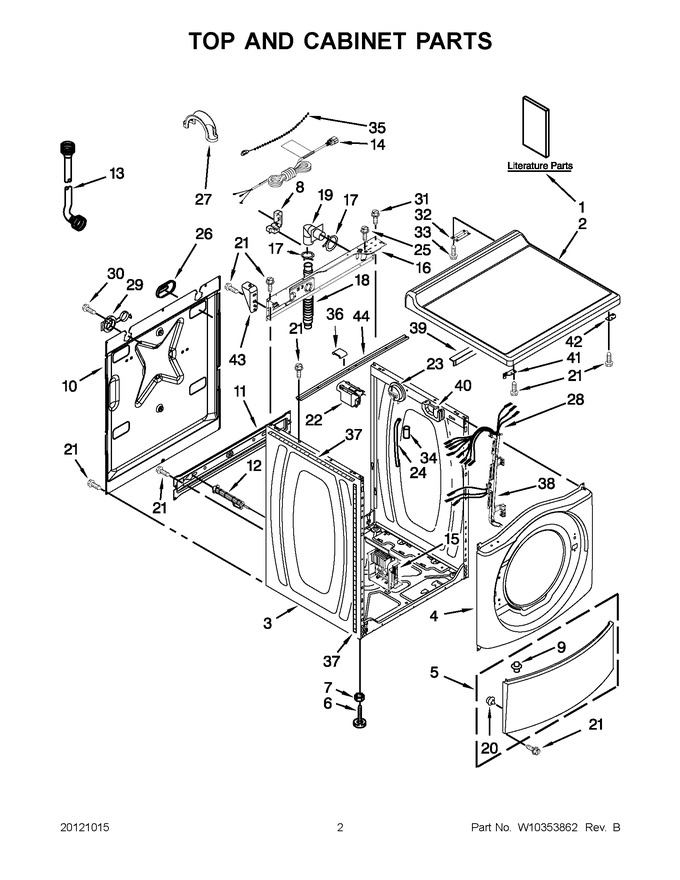

01 - Top And Cabinet Parts


02 - Door Parts


03 - Control Panel Parts


04 - Dispenser Parts


05 - Tub And Basket Parts


06 - Pump And Motor Parts


07 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10353866		User Instructions Tech Sheet		Appelez-nous	-
1	W10491133		Tech Sheet (french)		Appelez-nous	-
1	W10491131		Tech Sheet (english)		Appelez-nous	-
1	W10353863		Installation Instructions		Appelez-nous	-
2	W11622909		Top   (Replaces: W10137410)		Appelez-nous	-
3	N/P		Cabinet (not Serviceable)		Appelez-nous	-
4	WPW10306505		Panel, Front   (Replaces: W10306505)				$ 374.67
5	WP8540664		Panel, Toe   (Replaces: 8540813)				$ 377.11
6	W10862938		Foot, Leveling   (Replaces: W10245373)			Immediately	$ 13.22
7	WP3359452		Nut, Hex   (Replaces: 3359452)			Immediately	$ 7.55
8	8182635		Strain Relief, Power Cord   (Replaces: W10110676)				$ 17.56
9	8518891		Rivet				$ 14.07
10	W10258342		Panel, Rear		Appelez-nous	-
11	W10189659		Brace, Transport				$ 45.35
12	W10763471		Bolt, Shipping (set Of 4)   (Replaces: W10251449)				$ 42.13
13	WPW10352594		Hose, Inlet (warm Water)   (Replaces: W10352594)				$ 41.30
13	WPW10352644		Hose, Inlet (cold Water)   (Replaces: W10352644)				$ 33.98
14	W10476825		Cord, Power   (Replaces: W10045597)		Appelez-nous	-
15	WPW10385821		Motor Control Unit   (Replaces: W10385821)				$ 487.66
16	W10244560		Brace, Rear				$ 94.10
17	WP356138		Clamp, Hose   (Replaces: 356138)			Immediately	$ 8.52
18	WPW10106460		Hose, Drain-outer   (Replaces: W10106460)				$ 28.68
19	W11757170		Connector, Hose Outlet   (Replaces: W10003260)			Immediately	$ 6.71
20	238614		Bumper				$ 84.79
21	WP489442		Screw   (Replaces: W10015090)			Immediately	$ 11.49
22	W10398805		Filter, Interference		Appelez-nous	-
23	W10292407		Switch, Pressure				$ 38.65
24	W11252474		Hose, Pressure Switch   (Replaces: 8540294)			Immediately	$ 35.23
25	8540479		Screw, Grounding				$ 9.22
26	WP8540268		Cover, Transport   (Replaces: 8540268)				$ 7.30
27	WP8577378		U-bend, Drain Hose   (Replaces: 8577378)				$ 8.37
28	W10475277		Harness, Wiring (lower Main) Includes Item 38		Appelez-nous	-
29	W11116978		Sleeve, Cord Support   (Replaces: 8540728)				$ 23.94
30	8182201		Screw   (Replaces: 8540727)				$ 14.08
31	8540329		Screw		Appelez-nous	-
32	WP8565018		White   (Replaces: 8565018)				$ 115.34
33	WP488627		Screw   (Replaces: 342055)				$ 8.11
34	W11751592		Sleeve, Pressure Switch Hose   (Replaces: 2161302)			Immediately	$ 21.32
35	WPW10339879		Tie, Cable (beaded)   (Replaces: 3347868)				$ 8.30
36	WP8283273		Damper, Brace   (Replaces: 8283273)				$ 28.40
37	WP8318396A		Seal, Foam   (Replaces: 8318396)				$ 39.71
38	W10200785		Harness Channel, Side Front   (Replaces: W10168546)				$ 9.54
39	WPW10342663		Angle, Support Top   (Replaces: W10342663)				$ 149.58
40	8540643		Bracket, Spring				$ 12.86
41	W10137445		Bracket - Top Panel, Left		Appelez-nous	-
42	W10137444		Bracket - Top Panel, Right		Appelez-nous	-
43	W10137398		Stop, Top Panel		Appelez-nous	-
44	WP8540721		Brace, Top   (Replaces: 8540721)				$ 52.26
NI	W10200775		Door Lock-power		Appelez-nous	-
NI	W10223807		Cord, Power (british) (parts Not Shown)		Appelez-nous	-
NI	W10628146		Cord, Power (european) (parts Not Shown)   (Replaces: W10223809)				$ 124.89
NI	W10330605		Ccu To Mcu-serial Communication (3 Pole)		Appelez-nous	-
NI	W10446855		Cord, Power (10a Cord Lock) (parts Not Shown)		Appelez-nous	-
NI	W10628146		Cord, Power (austrailian) (parts Not Shown)   (Replaces: W10223804)				$ 124.89
NI	N/P		The Following Cable Sets: (not Illustrated)		Appelez-nous	-
NI	W10480265		Ccu To Mcu - Power (2 Pole)		Appelez-nous	-
