SELECT A DIAGRAM

01 - Top And Cabinet Parts


02 - Door Parts

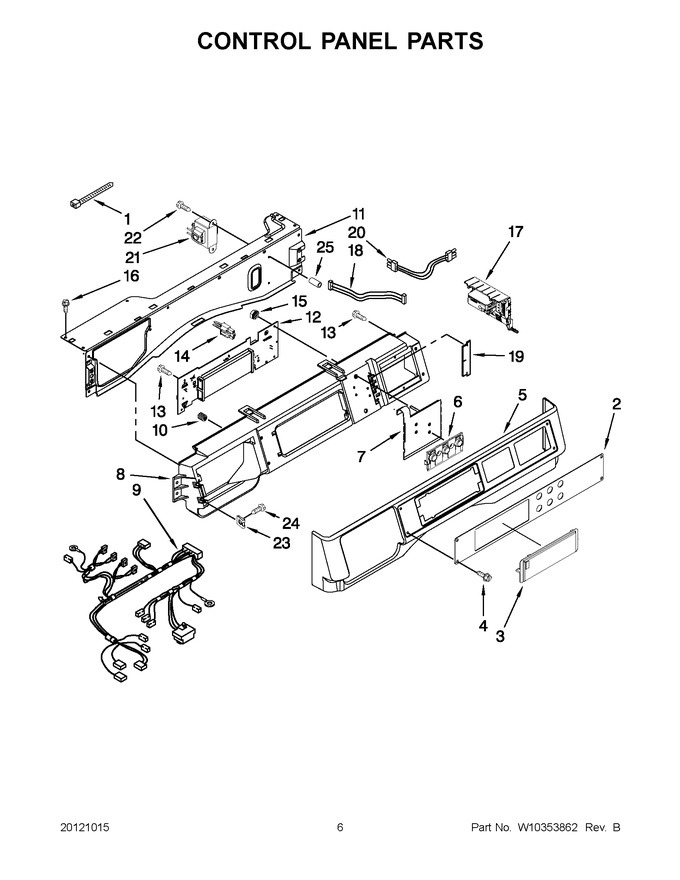

03 - Control Panel Parts


04 - Dispenser Parts


05 - Tub And Basket Parts


06 - Pump And Motor Parts


07 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP2205813		Tie, Cable   (Replaces: 3429563)				$ 7.30
2	W10353219		Facia / Overlay		Appelez-nous	-
3	W11637765		Cover, Display   (Replaces: W10267645)				$ 62.63
4	WPW10137457		Screw   (Replaces: W10137457)				$ 7.07
5	W10779084		Console, Outer   (Replaces: W10137458)				$ 124.46
6	W10803340		Push Button   (Replaces: W10137455)				$ 110.92
7	WPW10135255		Switch, Membrane & Backer Plate   (Replaces: W10135255)				$ 197.47
8	W11028369		Console, Inner   (Replaces: W10137426)				$ 302.72
9	W10475276		Harness, Wiring (upper Main) Includes		Appelez-nous	-
10	WPW10189313		Inserts   (Replaces: W10189313)				$ 8.31
11	W10294428		Bracket, Console		Appelez-nous	-
12	WPW10311755		User Interface   (Replaces: W10311755)			Immediately	$ 282.59
13	489136		Screw				$ 9.72
14	W11129439		Jumper, Switch Service/vault   (Replaces: W10133282)				$ 15.89
15	WPW10139046		Nut 6-32   (Replaces: W10139046)				$ 8.31
16	WP489442		Screw   (Replaces: W10015090)			Immediately	$ 10.34
17	W10475429		Microcomputer, Machine Control		Appelez-nous	-
18	W10155150		Harness, Test				$ 3.02
19	W10187276		Seal, Console		Appelez-nous	-
20	W11700546		Harness, Wiring (console Uic)   (Replaces: W10330606)				$ 17.44
21	W10751202		Transformer   (Replaces: W10205520)				$ 202.81
22	8540329		Screw		Appelez-nous	-
23	WP9781235		Nut, ``u``   (Replaces: 9781235)				$ 11.30
24	WPW10131119		Screw M4x13   (Replaces: W10131119)				$ 6.57
25	W10018050		Caplug		Appelez-nous	-
NI	W10340898		Ccu To Hot Fill Valve (2 Pole)		Appelez-nous	-
NI	N/P		The Following Cable Sets: (not Illustrated)		Appelez-nous	-
NI	W10340897		Ccu To Cold Fill Valve (4 Pole)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
