Diagram # Part Number Description Series Availability Ships Price Add to Cart
3 998781 Bracket, Humidistat & Light Assembly Appelez-nous -
5 488624 Screw, S.m. No.8 X 3/8a Appelez-nous -
6 998777 Bracket, Fan Motor Mounting Appelez-nous -
7 488946 Clamp, Tube (4) Special Order $ 21.47

8 WP488729 Screw, 8 X 1/2a   (Replaces: 487910) In-Stock Immediately $ 8.28

9 WP488130 Nut, Fan Motor 8-32 (2)   (Replaces: 488130) Special Order $ 7.32

10 855635 Board, Terminal Appelez-nous -
11 488966 Screw, 6 X 3/8 Appelez-nous -
14 WPW10141604 Screw, 8-32 X 5/32   (Replaces: 487871) Special Order $ 8.85

15 998798 Cord, Appliance Appelez-nous -
16 998779 Plate, Orifice Appelez-nous -
17 998802 Seal Appelez-nous -
23 998729 Support Appelez-nous -
25 WPW10339879 Tie, Cable   (Replaces: 857547) Special Order $ 8.30


    View Diagram in Separate Window     Print Icon   Print Part List

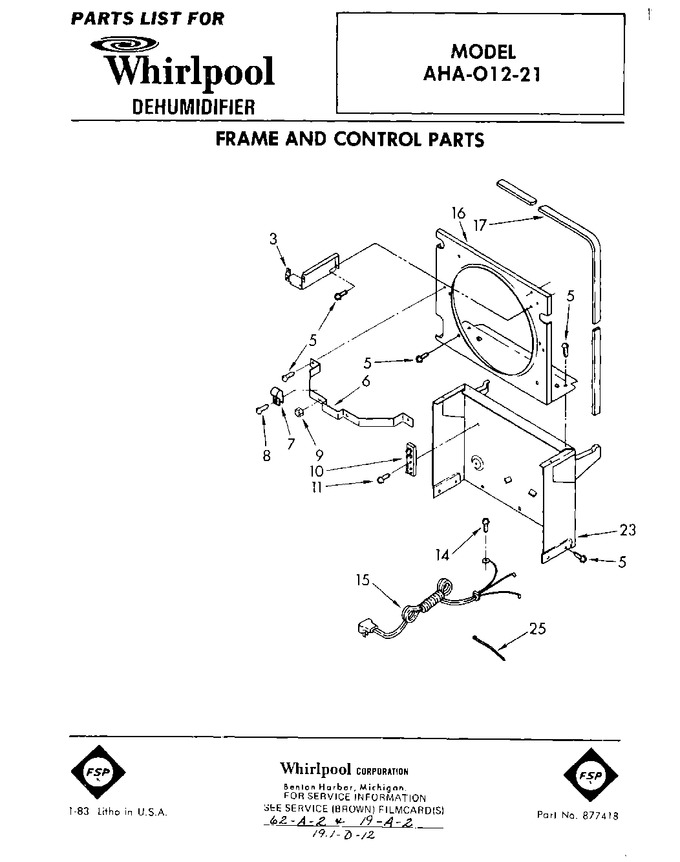

Diagram for AHA01221
