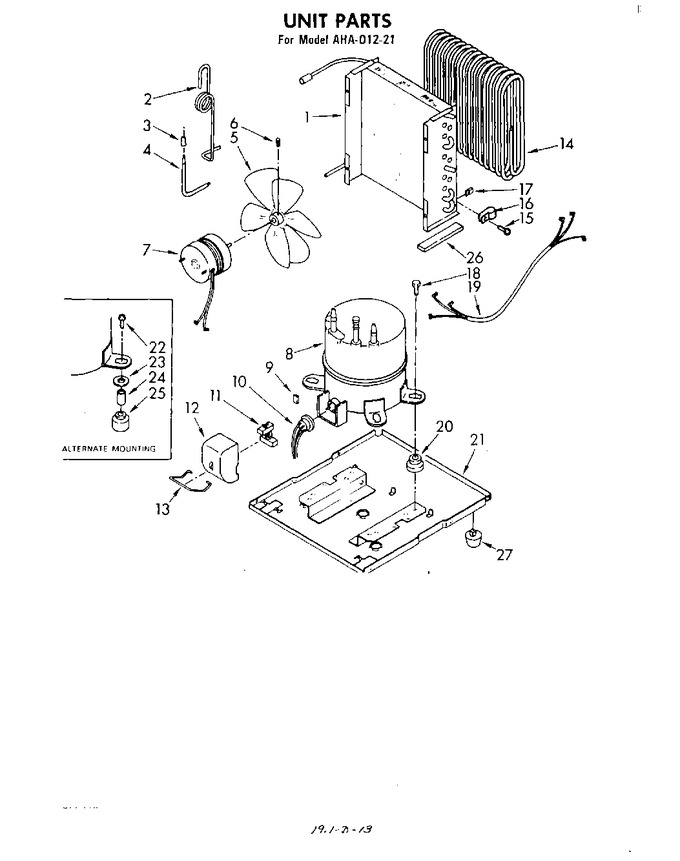

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	949893		Condenser		Appelez-nous	-
2	948793		Tube, Restrictor		Appelez-nous	-
3	474013		Strainer, Outlet Tube		Appelez-nous	-
4	949896		Tube, Outlet (includes Item No. 3)		Appelez-nous	-
5	948756		Blade, Fan (includes Setscrew, Part No. 488035)		Appelez-nous	-
6	488035		Setscrew, 1/4 X 5/16		Appelez-nous	-
7	998804		Motor, Fan		Appelez-nous	-
8	484344		Compressor		Appelez-nous	-
9	547272		Bumper, Relay		Appelez-nous	-
10	998784		Overload		Appelez-nous	-
11	4318083		Relay, Start   (Replaces: 531386)				$ 123.05
12	549945		Case, Relay		Appelez-nous	-
13	531318		Spring, Relay Case		Appelez-nous	-
14	998743		Evaporator		Appelez-nous	-
15	WP488729		Screw, 8 X 1/2a (4)   (Replaces: 487910)			Immediately	$ 7.79
16	488946		Clamp, Evaporator Tube (4)				$ 20.45
17	488660		Nut, Speed No.8a (4)   (Replaces: 486197)		Appelez-nous	-
18	488400		Screw, Sems 1/4-28 X 1 (4)		Appelez-nous	-
19	484136		Harness, Wire		Appelez-nous	-
20	531082		Grommet (4)		Appelez-nous	-
21	998720		Base		Appelez-nous	-
22	489027		Xscrew, 1/4-28 X 1-1/4		Appelez-nous	-
23	489030		Xwasher, Cup		Appelez-nous	-
24	858424		Xsleeve		Appelez-nous	-
25	469581		Xgrommet		Appelez-nous	-
26	998867		Seal		Appelez-nous	-
27	998725		Glide (4)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
