Diagram # Part Number Description Series Availability Ships Price Add to Cart
32 WH01X10593 Scr 12-14 B Appelez-nous -
41 WW01A00063 Scr 9-15 Twin Hel 3/4   (Replaces: WH01X10610) In-Stock Immediately $ 3.97

212 WH45X10150 Tub 24" Appelez-nous -
215 WH01X10605 Elbow Over Flow Appelez-nous -
216 WW01L01357 Basket Assembly 24"   (Replaces: WH45X10107) Special Order $ 164.95

218 WH43X10056 Agitator Appelez-nous -
219 WH01X10619 Ens. Tornillo Agitador Appelez-nous -
220 WH44X20435 Cover Fsd Appelez-nous -
221 WW03L00018 Tub Cover Asm 24"   (Replaces: WH44X10281) Special Order $ 12.21

223 WH16X10152 Press Hose Clamp Appelez-nous -
302 WW03F00081 Supports Assembly   (Replaces: WH16X10145) In-Stock Immediately $ 169.95

318 WW01A00080 Washer Hub   (Replaces: WH01X10617) In-Stock Immediately $ 3.97

325 WW01A00048 Nut Hub   (Replaces: WH01X10618) In-Stock Immediately $ 11.01


    View Diagram in Separate Window     Print Icon   Print Part List

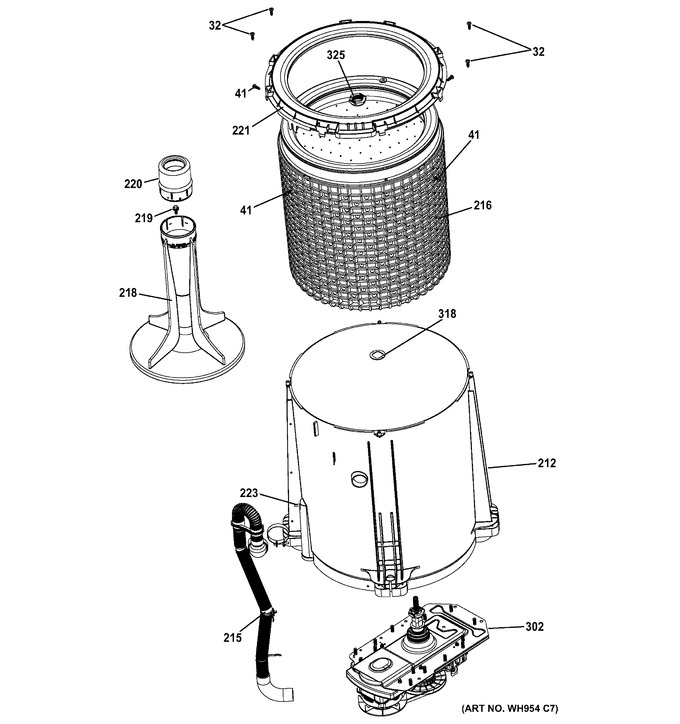

Diagram for GTUP240GM0WW
