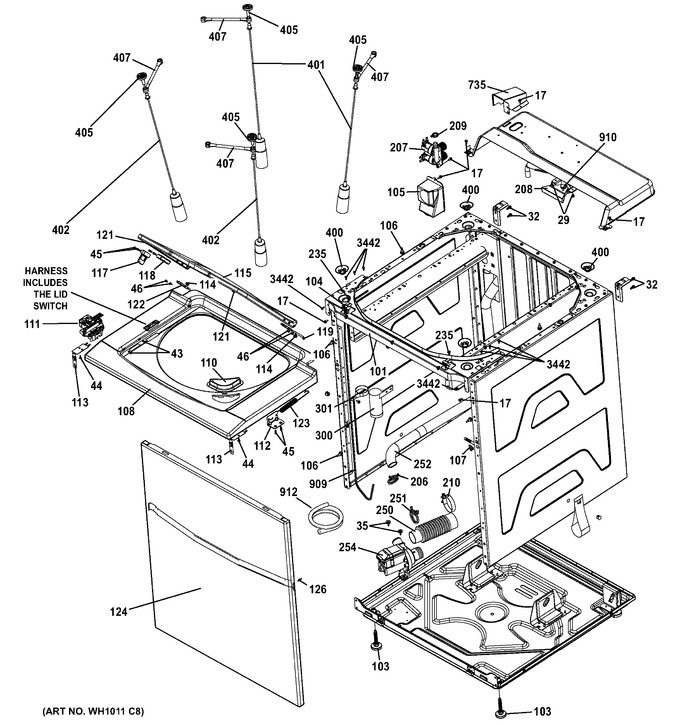

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 17 | WW01A00097 | Screw (Replaces: WH2X1217) |
|
$ 3.97 | |||||
| 29 | WB01K10042 | Scr 8-18 Ab Ihw 3/8 Sn |
|
- | |||||
| 32 | WH01X10593 | Scr 12-14 B |
|
- | |||||
| 35 | WH01X10600 | Scr 8-18 B Hxw 3/8 S Zn |
|
- | |||||
| 43 | WW01A00449 | Scr 8-16 B Flp .525 S Zn (Replaces: WH01X10631) |
|
Immediately | $ 4.52 | ||||
| 44 | WH01X10624 | Scr 6-20 B Trt 3/8 S |
|
- | |||||
| 45 | WW01A00048 | Scr 8-16 B Flp .525 S Zn (Replaces: WH01X10622) |
|
Immediately | $ 11.01 | ||||
| 46 | WH2X1211 | Screw |
|
- | |||||
| 101 | WH16X10144 | Brace Front Upper |
|
- | |||||
| 103 | WW03L00038 | Leg Leveling (Replaces: WH01X10594) |
|
Immediately | $ 11.65 | ||||
| 104 | WW03A00013 | Clip Locking (Replaces: WH01X10595) |
|
Immediately | $ 4.52 | ||||
| 105 | WH44X10280 | Cover Hose |
|
- | |||||
| 106 | WW03A00028 | Pin Alignment (Replaces: WH01X10596) |
|
$ 3.97 | |||||
| 107 | WH01X10597 | Clip Ground |
|
- | |||||
| 108 | WH44X10283 | Cover Top |
|
- | |||||
| 110 | WH01X10621 | Funnel Bleach |
|
- | |||||
| 111 | WW03F00016 | Lock Lid (Replaces: WH44X10288) |
|
Immediately | $ 76.12 | ||||
| 112 | WH16X10153 | Bracket Spring |
|
- | |||||
| 113 | WH01X10623 | Clip Cover |
|
- | |||||
| 114 | WH01X10625 | Bushing Hinge |
|
- | |||||
| 115 | WH44X10285 | Lid Washer |
|
- | |||||
| 117 | WW03F00001 | Actuator Lid (Replaces: WH43X10057) |
|
Immediately | $ 5.36 | ||||
| 118 | WW03F00604 | Magnet (Replaces: WH01X10626) |
|
Immediately | $ 11.71 | ||||
| 119 | WH44X10289 | Hinge Washer Cover Rh |
|
- | |||||
| 121 | WH01X10627 | Bumper Lid |
|
- | |||||
| 122 | WW03L00007 | Hinge Washer Cover Lh (Replaces: WH44X10290) |
|
$ 7.94 | |||||
| 123 | WW03A00033 | Spring Cover (Replaces: WH01X10628) |
|
$ 10.12 | |||||
| 124 | WH42X10885 | Panel Front Asm |
|
- | |||||
| 126 | WH02X10347 | Stud Grounding |
|
- | |||||
| 206 | WH01X10599 | Clamp |
|
- | |||||
| 207 | WH13X10050 | Water Valve |
|
- | |||||
| 208 | WW03L00026 | Funnel Shower Head (Replaces: WH13X10051) |
|
$ 26.20 | |||||
| 209 | WH01X10649 | Clamp |
|
- | |||||
| 210 | WH01X10603 | Clamp Tub Outlet |
|
- | |||||
| 235 | WE2X263 | Scr |
|
- | |||||
| 250 | WW03F00053 | Hose Drain Inlet (Replaces: WH41X10280) |
|
Immediately | $ 20.24 | ||||
| 251 | WH01X10598 | Clamp |
|
- | |||||
| 252 | WW03F00542 | Hose Drain Asm (Replaces: WH41X10281) |
|
Immediately | $ 61.41 | ||||
| 254 | WW02L00622 | Pump Drain (Replaces: WH23X10040) |
|
Immediately | $ 91.78 | ||||
| 300 | WW01F00342 | Run Capacitor (Replaces: WH12X10513) |
|
$ 29.08 | |||||
| 301 | WH01X10601 | Clip Capacitor |
|
- | |||||
| 400 | WH01X10602 | Seat Ball Joint |
|
- | |||||
| 401 | WW03A00075 | Rod Assembly (Replaces: WH16X10149) |
|
$ 53.10 | |||||
| 402 | WW03A00074 | Rod Assembly (Replaces: WH16X10148) |
|
$ 53.10 | |||||
| 405 | WW01F00265 | Socket Rod Support (Replaces: WH01X10620) |
|
$ 3.97 | |||||
| 407 | WW01F01166 | Strap Assembly 24 (Replaces: WH01X20438) |
|
Immediately | $ 42.19 | ||||
| 735 | WE1M1000 | Cover Harness Main |
|
- | |||||
| 909 | WW03F00004 | Harness Main (Replaces: WH19X10085) |
|
$ 261.78 | |||||
| 910 | WH12X10512 | Thermistor Asm |
|
- | |||||
| 912 | WH41X10300 | Hose Pressure |
|
- | |||||
| 3442 | WE2M281 | Scr 8-18 Ab 1/2 |
|
- |
