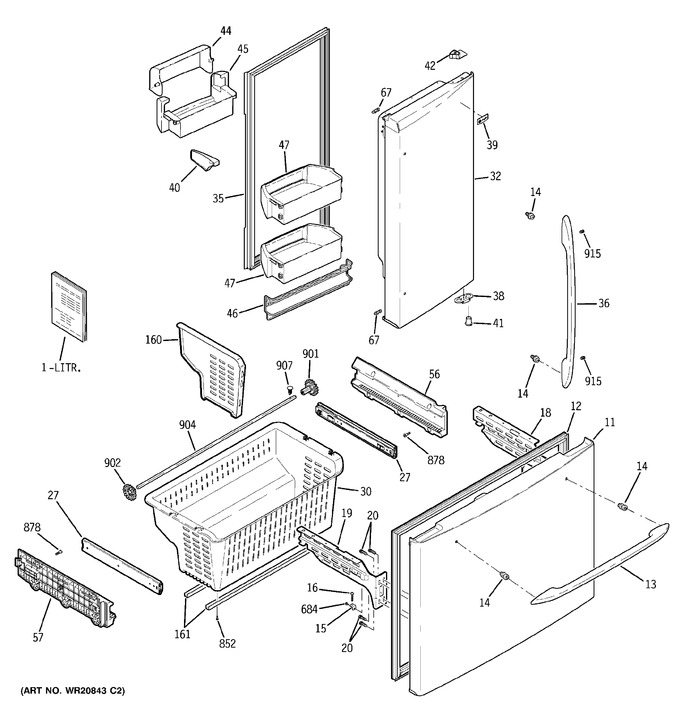

1 - Dispenser Door


2 - Doors & Bins


3 - Freezer Section


4 - Freezer Shelves


5 - Ice Maker & Dispenser


6 - Fresh Food Section


7 - Fresh Food Shelves


8 - Case Parts


9 - Machine Compartment


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	49-60644		Pm Guide Owners		Appelez-nous	-
1	31-51810-1		Pm Mini Manual Wiring		Appelez-nous	-
11	WR78X12652		Door Foam Asm Fz Bowed		Appelez-nous	-
12	WR01L02088		Gasket   (Replaces: WR14X10331)			Immediately	$ 138.60
13	WR01L02325		Handle Asm Fz Fin   (Replaces: WR12X10980)				$ 92.78
14	WR01A00257		Fastener Handle Ss   (Replaces: WR01X10680)				$ 14.20
15	WR02X12870		Bracket Support		Appelez-nous	-
16	WR01X10843		Screw Bracket Support		Appelez-nous	-
18	WR02X13378		Bracket Slide Lwr Rh 21		Appelez-nous	-
19	WR02X13379		Bracket Slide Lwr Lh 21		Appelez-nous	-
20	WR01A00633		Scr 1/4-20 Rt Flat 3/4 S   (Replaces: WR01X10885)				$ 3.57
27	WR01A01822		Slide Lower Asm 21   (Replaces: WR17X12855)				$ 123.50
30	WR21X10225		Basket Lower Sd		Appelez-nous	-
32	WR01L01478		Door Foam Asm Fr Bw Rh   (Replaces: WR78X12736)				$ 224.44
35	WR01L02134		Gasket French With Flap   (Replaces: WR14X10305)			Immediately	$ 88.31
36	WR12X10976		Handle Asm Ff Fin		Appelez-nous	-
38	WR02X13483		Stop Door Bm		Appelez-nous	-
39	WR01L02772		Lens Name Plate   (Replaces: WR04X10161)				$ 11.08
40	WR01L04421		Snugger Module   (Replaces: WR02X10582)			Immediately	$ 28.58
41	WR02X12698		Thimble Door Ff		Appelez-nous	-
42	WR02X12699		Cam Ff Closure Rh		Appelez-nous	-
44	WR01L01271		Door Dairy Clear   (Replaces: WR02X12364)				$ 64.11
45	WR01L00665		Compartment Dairy   (Replaces: WR71X10871)				$ 25.11
46	WR17X12271		Beverage Rack		Appelez-nous	-
47	WR71X10875		Module Shelf Asm Ff		Appelez-nous	-
56	WR02X13380		Rail Holder Fz Lwr Rh 21		Appelez-nous	-
57	WR02X13381		Rail Holder Fz Lwr Lh 21		Appelez-nous	-
67	WR02X13427		Bumper French Door		Appelez-nous	-
160	WR02X13382		Divider Basket Bottom 21		Appelez-nous	-
161	WR02X13383		Stiffner		Appelez-nous	-
684	WR01X10602		Scr 8-32 Ab Ihws 3/8 S		Appelez-nous	-
852	WR01A00686		Scr 8-18 Ab Pnp 5/8 S   (Replaces: WR01X10858)				$ 3.57
878	WR01A00634		Scr 10-14 Pl Flt20 3/4 S   (Replaces: WR01X10939)				$ 3.57
901	WR01F00845		Gear Pinion Rh   (Replaces: WR02X13387)			Immediately	$ 9.11
902	WR01F00844		Gear Pinion Lh   (Replaces: WR02X13384)				$ 8.58
904	WR02X13388		Cross Bar Pinion		Appelez-nous	-
907	WR01A00269		Fastner Push   (Replaces: WR01X10947)				$ 4.20
915	WR01A01440		Set Screw   (Replaces: WR01X10450)				$ 8.58
