SELECT A DIAGRAM

1 - Dispenser Door


2 - Doors & Bins


3 - Freezer Section


4 - Freezer Shelves


5 - Ice Maker & Dispenser


6 - Fresh Food Section


7 - Fresh Food Shelves


8 - Case Parts

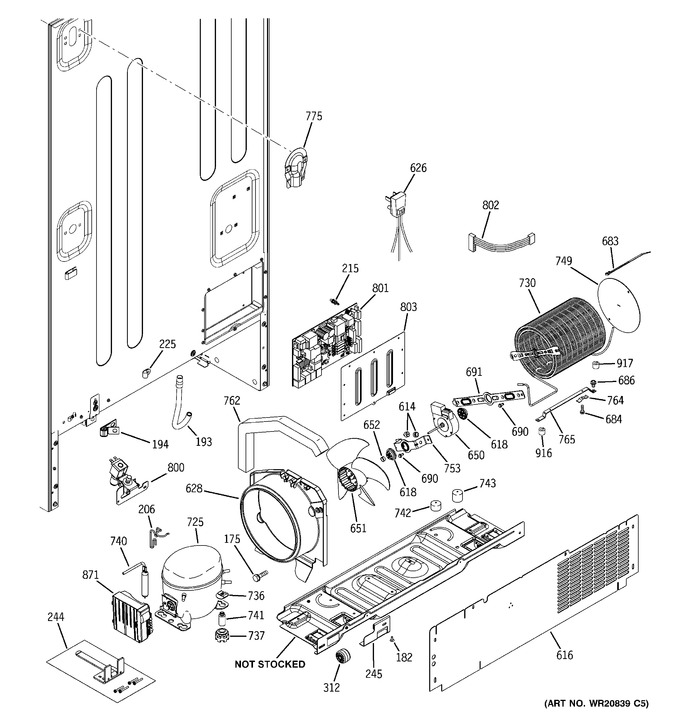

9 - Machine Compartment


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
175	WR01X10035		Scr 8-18 Ab Ihw 5/8 S		Appelez-nous	-
182	WR01X10622		Scr 10-32 B Ihxw 1/2		Appelez-nous	-
193	WR01F01884		Tube Drain   (Replaces: WR02X11426)			Immediately	$ 36.53
194	WR01X10684		Clamp Cable		Appelez-nous	-
206	WR02X12377		Clip Drain Tube		Appelez-nous	-
215	WR02X10663		Stand Off		Appelez-nous	-
225	WR02X12265		Clamp Tube		Appelez-nous	-
244	WR49X10179		Kit Anti Tip Asm		Appelez-nous	-
245	WR17X12267		Anti Tip Base Bracket		Appelez-nous	-
312	WG03L06838		Wheel Mobility Rear   (Replaces: WR02X10695)				$ 19.06
614	WR01A00163		Bumper Lid   (Replaces: WR02X10540)			Immediately	$ 6.35
616	WR01L00714		Cover Access   (Replaces: WR82X10109)				$ 119.45
618	WR01A00579		Grommet Evap Fan   (Replaces: WR02X11331)				$ 3.97
626	WR23X10540		Cord Power Asm		Appelez-nous	-
628	WR01L04391		Shroud Condenser   (Replaces: WR17X12668)				$ 26.20
650	WR60X10216		Motor Dc Cond Fan		Appelez-nous	-
651	WR01F02003		Blade Cond Fan Asm   (Replaces: WR60X10206)				$ 11.51
652	WG03F01616		Ring Compression   (Replaces: WR02X12149)				$ 3.97
683	WR02X11027		Wire Tie		Appelez-nous	-
684	WR01X10602		Scr 8-32 Ab Ihws 3/8 S		Appelez-nous	-
686	WR01X10252		Scr 10-32 Tt Hxw 5/16 S		Appelez-nous	-
690	WR1X1466		Scr 8-32 T Hxw 3/8 S		Appelez-nous	-
691	WR02X10593		Bracket Cond Fan (rear)		Appelez-nous	-
725	WR87X10180		Inverter Compressor Emb		Appelez-nous	-
730	WR01F02892		Condenser Asm   (Replaces: WR84X10022)				$ 403.54
736	WR2X8203		Clip Compressor Mount		Appelez-nous	-
737	WR01F00846		Grommet   (Replaces: WR02X10099)				$ 7.15
740	WG03A03157		Dryer Bifurcated Xh9   (Replaces: WR86X96)			Immediately	$ 153.40
741	WR1X1779		Stud Mtg Compr		Appelez-nous	-
742	WR02X10587		Support Condenser		Appelez-nous	-
743	WR02X10588		Support Condenser		Appelez-nous	-
749	WR17X11039		Baffle Cond Air		Appelez-nous	-
753	WR02X10521		Brkt Cond Fan (mtg)		Appelez-nous	-
762	WR14X10053		Foam Strip Se Adh		Appelez-nous	-
764	WR2X9000		Clip, Cond Mnt		Appelez-nous	-
765	WR17X10763		Bracket Condenser Bar		Appelez-nous	-
775	WR17X10796		Cover Water Line		Appelez-nous	-
800	WR57X10040		Water Valve				$ 71.10
801	WR01F00241		Board Asm Main Control   (Replaces: WR55X11098)			Immediately	$ 282.65
802	WR23X10710		Harness Board Indiv		Appelez-nous	-
803	WR02X12025		Main Board Enclosure Asm		Appelez-nous	-
871	WG04A00766		Inverter Asm   (Replaces: WR55X10979)			Immediately	$ 542.82
916	WR02X13569		Sound Damper		Appelez-nous	-
917	WR02X13573		Sound Damper		Appelez-nous	-
	WR01F00241		Board Asm Main Control			Immediately	$ 282.65
	WR01F00796		Filter Asm And Tube, Monogram			Immediately	$ 187.11
	WR01F01597		Motor Auger Dc				$ 104.84
	WR01F01730		Sensor Temp Ff			Immediately	$ 15.72
	WR01F01784		Solenoid Asm				$ 88.99
	WR01F01928		Bulkhead Connector Asm Waterline Svc Kit				$ 41.17
	WR01F02845		Connector			Immediately	$ 19.06
	WR01L00012		1/4 Union Connector				$ 10.52
	WR01L00846		Cover Hinge				$ 11.14
	WG03F00154		Compressor Repl Kit (charged)				$ 1,117.00
	WR01L01675		Door Foam Asm Fz Bowed				$ 576.77
	WR01L02134		Gasket French With Flap			Immediately	$ 98.12
	WR01L06216		Gasket Tower Ff   (Replaces: WR01L02190)			Immediately	$ 3.97
	WR01L02318		Handle Asm Ff Fin				$ 205.62
	WG03F07366		Icemaker - Door Mounted   (Replaces: WR01L02568)			Immediately	$ 235.95
	WR01L02772		Lens Name Plate				$ 12.31
	WR01L02794		Sistema De Baja Presion				$ 176.78
	WR01L04627		Vent Cover Kit				$ 518.32
	WR01L06232		Double Coil Water Tank				$ 40.49
	WR01L01478		Door Foam Asm Fr Bw Rh				$ 224.44
	WG04F11911		Valve   (Replaces: WG03F00685)			Immediately	$ 94.13
	WR01A00257		Fastener Handle Ss				$ 15.78
	WR01A00662		Sc 12-24 Tt Hxt20 .90 S				$ 12.14
	WR01A00748		Service Kit I&w Door				$ 964.21
	WR01A00785		Slide Asm				$ 49.00
	WR01A00786		Slide Asm				$ 47.25
	WR01F00138		Blower Fan Duct			Immediately	$ 202.15
