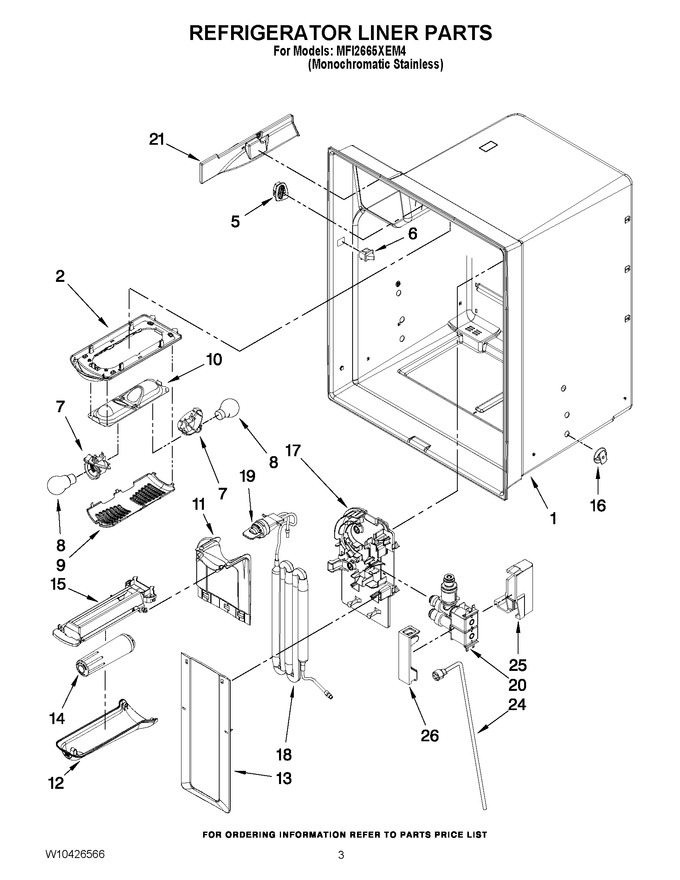

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | N/P | Liner (not A Serviceable Part) |
|
- | |||||
| 2 | W10349134 | Module, Light |
|
- | |||||
| 5 | W10555984 | Grille, Air (Replaces: 13008201) |
|
Immediately | $ 42.09 | ||||
| 6 | W11396033 | Switch, Light (2) (Replaces: 12466103) |
|
Immediately | $ 37.30 | ||||
| 7 | W11447232 | Socket, Light (Replaces: 12570701V) |
|
Immediately | $ 13.87 | ||||
| 8 | W11679940 | Bulb, Light (Replaces: 2255743) |
|
Immediately | $ 11.30 | ||||
| 9 | 12905902 | Cover, Light |
|
- | |||||
| 10 | 12806601 | Housing, Light (Replaces: 12806601V) |
|
$ 110.20 | |||||
| 11 | 12960101 | Cover, Water Tank (upper) |
|
$ 134.01 | |||||
| 12 | WP67006331 | Lid, Water Filter (Replaces: 12960301) |
|
Immediately | $ 118.37 | ||||
| 13 | 67006329 | Cover, Water Tank (lower) (Replaces: 12960001) |
|
$ 198.95 | |||||
| 14 | EDR4RXD1B | Filter, Water (Replaces: UKF8001AXX) |
|
Immediately | $ 49.99 | ||||
| 15 | 67006325 | Bracket, Filter Base (Replaces: 12955901) |
|
Immediately | $ 105.39 | ||||
| 16 | W10190541 | Mount, Crisper |
|
$ 13.21 | |||||
| 17 | W10502642 | Bracket, Water Tank & Valve (Replaces: W10365768) |
|
Immediately | $ 153.93 | ||||
| 18 | W10502642 | Water Tank & Head Assembly (Replaces: W10415891) |
|
Immediately | $ 153.93 | ||||
| 19 | W11395888 | Plug, Bypass (Replaces: 12664501SP) |
|
Immediately | $ 50.72 | ||||
| 20 | WPW10312696 | Valve, Dual Water (Replaces: W10312696) |
|
Immediately | $ 172.73 | ||||
| 21 | WPW10309869 | Cover, Ice Box Harness (Replaces: W10309869) |
|
$ 114.65 | |||||
| 24 | W10290356 | Waterline, Cabinet (w/nut) |
|
$ 56.37 | |||||
| 25 | W10118193 | Enclosure, Water Valve Connector |
|
$ 88.80 | |||||
| 26 | W10118194 | Lid, Enclosure |
|
- |
