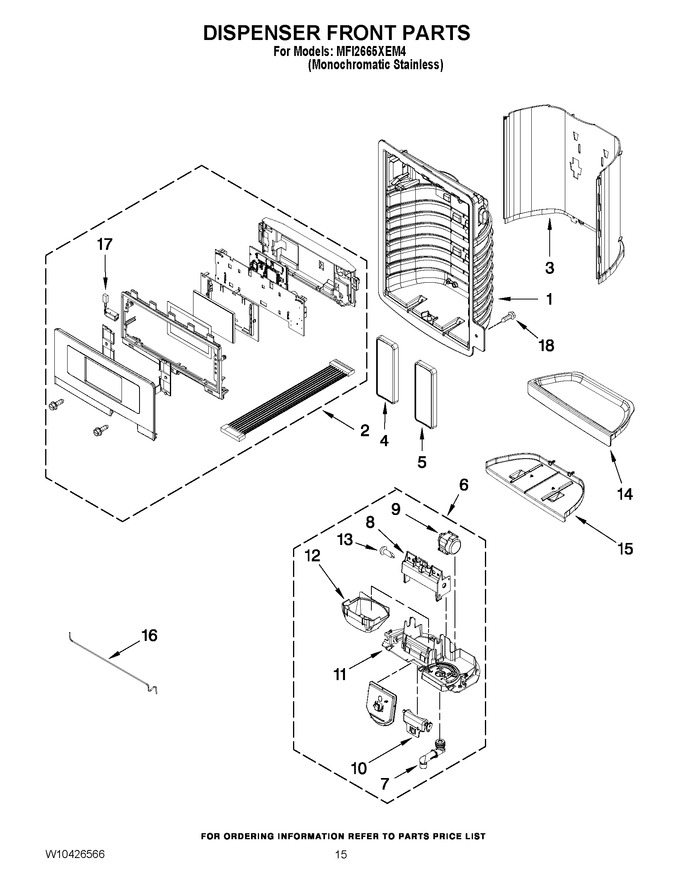

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	N/P		Housing, Dispenser (not Serviced)		Appelez-nous	-
2	W10337912		Ui Assembly				$ 471.81
3	W11045978		False, Wall, Dispenser (stainless)   (Replaces: W10299897)				$ 90.33
4	W10334789		Pad, Ice (stainless)		Appelez-nous	-
5	W10334813		Pad, Water (stainless)				$ 42.69
6	WPW10353552		Separator Assy.   (Replaces: W10353552)				$ 166.29
7	W11227371		Spigot   (Replaces: 2316647)				$ 136.38
8	W10174827		Bracket, Ice Door				$ 76.42
9	WPW10205979		Motor, Ice Door   (Replaces: W10205979)			Immediately	$ 107.60
10	WPW10346124		Support, Ice Door   (Replaces: W10346124)				$ 41.85
11	W10278987		Separator		Appelez-nous	-
12	WPW10435760		Guide, Ice   (Replaces: W10339578)				$ 23.94
13	WP4449745		Screw   (Replaces: 4449745)				$ 7.98
14	W11192301		Tray, Dispenser (stainless)   (Replaces: W10299895)				$ 65.82
15	WPW10267863		Slide Tray, Dispenser (stainless)   (Replaces: W10267863)				$ 73.22
16	W10296451		Tube, Water				$ 53.54
17	W11290115		Led   (Replaces: W10238083)				$ 84.45
18	WPW10273971		Screw   (Replaces: W10273971)			Immediately	$ 7.55
