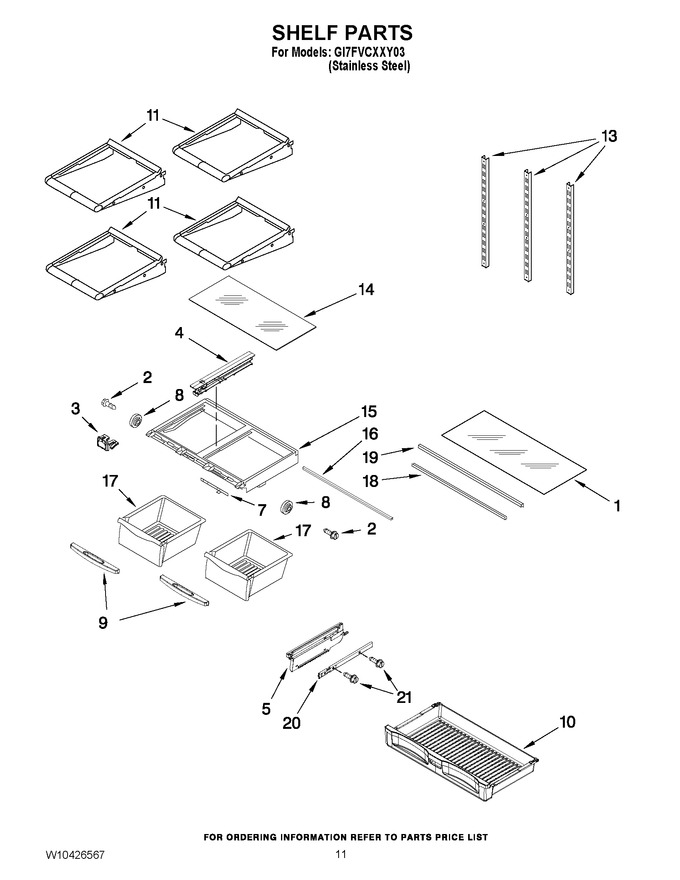

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP12204826		Glass, Pantry   (Replaces: 12204826)				$ 254.08
2	67006692		Screw   (Replaces: 12991401)				$ 10.79
3	2223309		Knob, Humidity				$ 34.60
4	W10331184		Frame, Crisper Center		Appelez-nous	-
5	W10336802		Endcap, Pantry (left)		Appelez-nous	-
5	W10336801		Endcap, Pantry (right)		Appelez-nous	-
7	W10141530		Slide, Humidity		Appelez-nous	-
8	12756701		Roller, Crisper Frame		Appelez-nous	-
9	WPW10297814		Handle, Crisper   (Replaces: W10141531)				$ 164.69
10	W10337127		Drawer, Pantry		Appelez-nous	-
11	12883509		Shelf, Glide (4)		Appelez-nous	-
13	W10268264		Ladder (3)				$ 31.95
14	WP12204826		Glass, Crisper   (Replaces: 12204826)				$ 254.08
15	W10331183		Frame, Crisper				$ 92.82
16	W10490807		Brace, Crisper   (Replaces: W10119258)				$ 101.42
17	WPW10297814		Pan, Crisper (2)   (Replaces: W10297807)				$ 164.69
18	W11812285		Support, Glass   (Replaces: 12655902SP)				$ 53.33
19	WP12227305WD		Brace-pantry   (Replaces: 12227305WH)				$ 108.36
20	W10346888		Runner, Cab (right)		Appelez-nous	-
20	W10346889		Runner, Cab (left)		Appelez-nous	-
21	W10185612		Screw				$ 7.08
