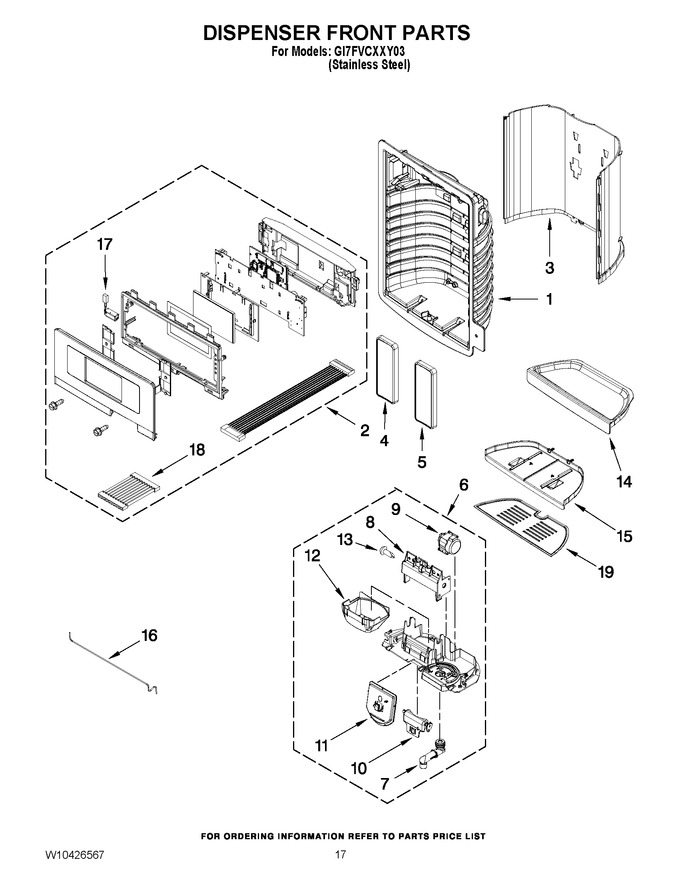

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | N/P | Housing, Dispenser (not Serviced) |
|
- | |||||
| 2 | W10411119 | Ui Assembly (stainless) |
|
- | |||||
| 3 | W10305890 | False Wall, Dispenser (stainless) |
|
$ 92.99 | |||||
| 4 | WPW10368730 | Pad, Ice (nickel) (Replaces: W10334801) |
|
Immediately | $ 319.47 | ||||
| 5 | WPW10368730 | Pad, Water (nickel) (Replaces: W10334825) |
|
Immediately | $ 319.47 | ||||
| 6 | W10353562 | Separator Assembly (stainless) |
|
- | |||||
| 7 | W11227371 | Spigot (Replaces: 2316647) |
|
$ 136.38 | |||||
| 8 | W10174827 | Bracket, Ice Door |
|
$ 76.42 | |||||
| 9 | WPW10205979 | Motor, Ice Door (Replaces: W10205979) |
|
Immediately | $ 107.60 | ||||
| 10 | WPW10346124 | Support, Ice Door (Replaces: W10346124) |
|
$ 41.85 | |||||
| 11 | W10346235 | Door, Ice (Replaces: W10174811) |
|
$ 170.32 | |||||
| 12 | WPW10435760 | Guide, Ice (Replaces: W10339578) |
|
$ 23.94 | |||||
| 13 | WP4449745 | Screw (Replaces: 4449745) |
|
$ 7.98 | |||||
| 14 | WPW10305897 | Tray, Dispenser (stainless) (Replaces: W10305897) |
|
$ 84.81 | |||||
| 15 | WPW10267863 | Slide, Tray Dispenser (apollo Grey) (Replaces: W10267863) |
|
$ 73.22 | |||||
| 16 | W10314372 | Tube, Water (dispenser) |
|
$ 54.47 | |||||
| 17 | W11290115 | Led (Replaces: W10238083) |
|
$ 84.45 | |||||
| 18 | W10193350 | Harness, Jumper |
|
$ 56.57 | |||||
| 19 | W10215957 | Grate, Drip |
|
$ 52.76 |
