Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 W10158347 Tech Sheet (french) Appelez-nous -
1 W10321619 Instructions, Installation Appelez-nous -
1 W10395347 Energy Guide Appelez-nous -
1 W10300216 Guide, Use & Care (english/french) Appelez-nous -
1 W10300217 Guide, Use & Care (spanish) Appelez-nous -
1 W10142826 Tech Sheet (english) Appelez-nous -
2 W11806608 Arm, Hinge (right)   (Replaces: 8534853) In-Stock Immediately $ 142.24

2 W11806565 Arm, Hinge (left)   (Replaces: 8534854) In-Stock Immediately $ 142.39

3 8268983 Stiffener, Door Special Order $ 38.77

4 W10234565 Insulation, Door Special Order $ 69.57

5 WPW10526114 Access Panel   (Replaces: W10368715) In-Stock Immediately $ 149.53

6 W10234558 Panel, Full Front (includes Items 4, 13, 14, 15,16 & 17) (stainless) Special Order $ 333.12

6 W10234559 Panel, Full Front (includes Items 4, 13, 14, 15, 16 & 17) (pro-stainless) Special Order $ 309.49

7 WP8534008 Set Screw   (Replaces: 8534008) Special Order $ 9.37

8 M0207303 Screw Special Order $ 6.94

10 WPW10503548 Fastener   (Replaces: W10331789) In-Stock Immediately $ 30.39

11 WP489069 Screw   (Replaces: 304392) In-Stock Immediately $ 8.40

12 WP3400071 Screw   (Replaces: 3400071) Special Order $ 8.26

13 W11636815 Nameplate   (Replaces: W10114211) Special Order $ 45.35

14 W11113792 Panel, Custom 6``   (Replaces: W10292632) In-Stock Immediately $ 373.42

15 WP8564951 Stud   (Replaces: 8564951) In-Stock Immediately $ 19.33

16 W10142904 Plate, Backing Special Order $ 50.57

17 W10123421 Screw Special Order $ 12.83

18 W10208769A Handle (stainless)   (Replaces: W10056289) Special Order $ 127.85

18 W10194840 Handle (pro-stainless) Special Order $ 119.05

19 W10194838 End Cap (l.hand) Special Order $ 181.74

19 W10194837 End Cap (r.hand) Special Order $ 181.74

20 W10831329 Insulation, Access Panel   (Replaces: W10385107) In-Stock Immediately $ 43.30

21 W10831329 Insulation, Three Layer   (Replaces: W10350437) In-Stock Immediately $ 43.30


    View Diagram in Separate Window     Print Icon   Print Part List

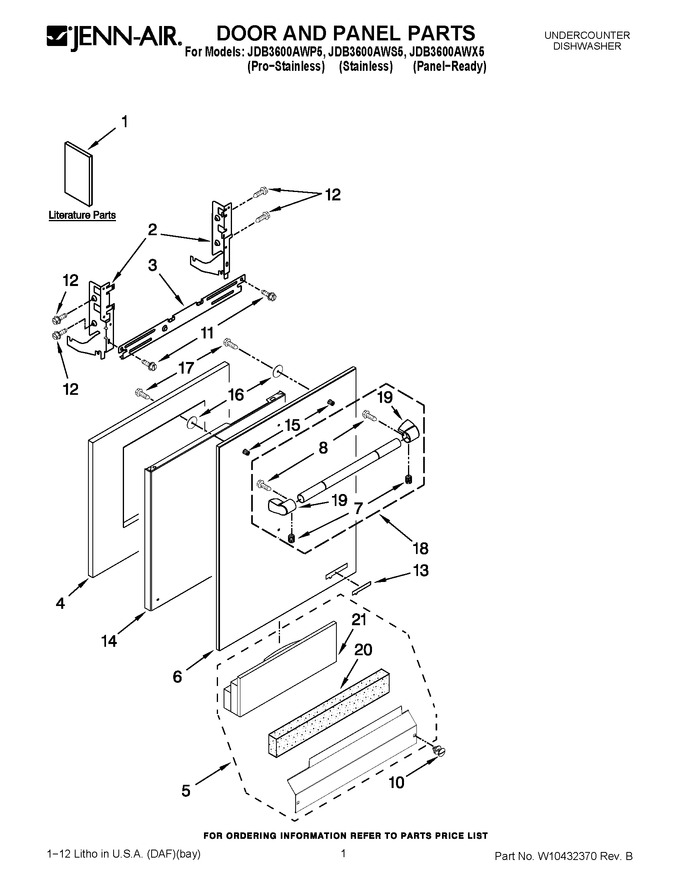

Diagram for JDB3600AWX5
