Diagram for 01 - Door And Panel Parts
01 - Door And Panel Parts

Diagram for 02 - Control Panel And Latch Parts
02 - Control Panel And Latch Parts

Diagram for 03 - Inner Door Parts
03 - Inner Door Parts

Diagram for 04 - Fill And Overfill Parts
04 - Fill And Overfill Parts

Diagram for 05 - Tub And Frame Parts
05 - Tub And Frame Parts

Diagram for 06 - Pump, Washarm And Motor Parts
06 - Pump, Washarm And Motor Parts

Diagram for 07 - Upper Wash And Rinse Parts
07 - Upper Wash And Rinse Parts

Diagram for 08 - Heater Parts
08 - Heater Parts

Diagram for 09 - Upper Rack And Track Parts
09 - Upper Rack And Track Parts

Diagram for 10 - Lower Rack Parts
10 - Lower Rack Parts

Diagram for 11 - Optional Parts (not Included)
11 - Optional Parts (not Included)


New Model Search:


1-855-472-4566
< Back to Home
Keyword Search:

Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 W10208755 Console Assembly (includes Insert) (black(awx5)) Appelez-nous -
1 W10275465 Console Assembly (includes Insert) (black(awp5,aws5)) Appelez-nous -
2 W10102497 Switch, Door Appelez-nous -
3 WPW10285178 Control, Elec.   (Replaces: W10285178) Special Order $ 263.40

4 W10258275 Bi-metal   (Replaces: W10344801) In-Stock Immediately $ 41.71

5 WPW10348409 Screw   (Replaces: W10348409) In-Stock Immediately $ 8.20

6 WPW10404412 Latch Assembly   (Replaces: W10404412) In-Stock Immediately $ 85.50

7 8546546 Clip, Bi-metal Special Order $ 7.82


    View Diagram in Separate Window     Print Icon   Print Part List

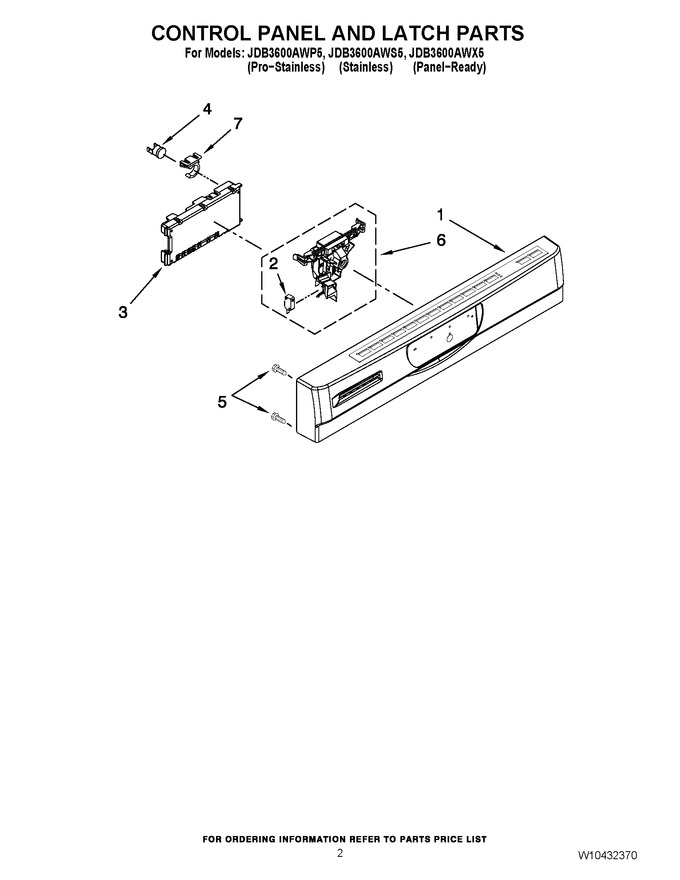

Diagram for JDB3600AWX5
