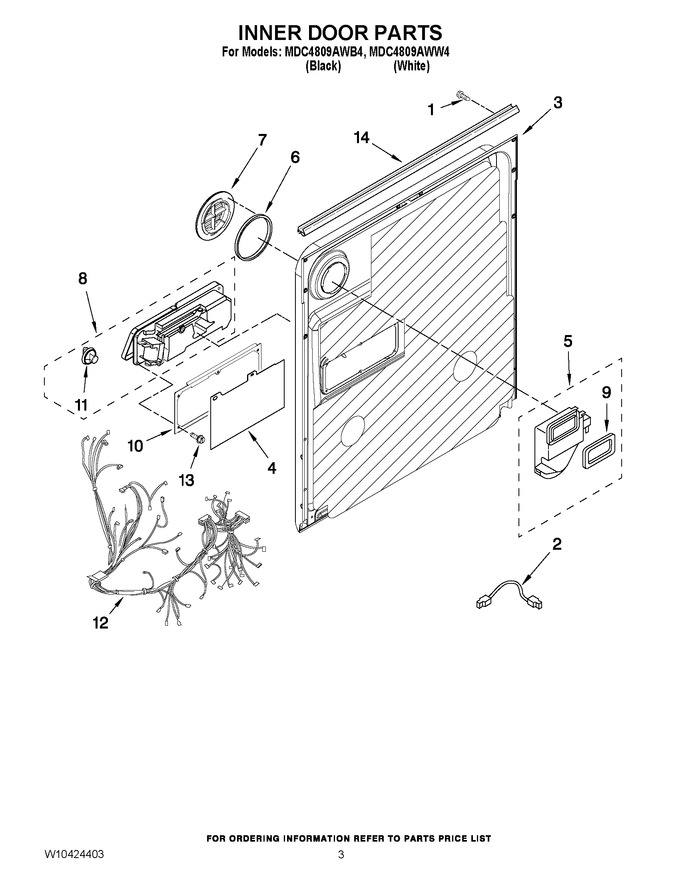

03 - Inner Door Parts


04 - Fill, Drain And Overfill Parts


05 - Tub And Frame Parts


06 - Pump And Motor Parts


07 - Upper Wash And Rinse Parts


08 - Heater Parts


09 - Upper Rack And Track Parts


10 - Lower Rack Parts


11 - Lower Washarm Parts


12 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WPW10177098		Screw, Door   (Replaces: W10177098)			Immediately	$ 8.02
2	8545608		Harness, Vent Motor				$ 152.37
3	WP3378179		Inner Door (also Order Item 6)   (Replaces: 3378179)				$ 323.02
4	W10385977		Cover, Dispenser				$ 30.61
5	WPW10164259		Vent Assembly (also Order Item 6)   (Replaces: W10164259)				$ 208.90
6	WP8269259		Gasket, Vent   (Replaces: 8269259)			Immediately	$ 63.50
7	WP8558991		Deflector, Vent (also Order Item 6)   (Replaces: 8558991)				$ 19.64
8	WPW10300737		Dispenser, Assembly   (Replaces: W10240176)				$ 232.82
9	WP8269258		Seal, Front   (Replaces: 8269258)			Immediately	$ 96.86
10	WPW10462232		Bracket, Dispenser   (Replaces: W10341423)				$ 37.79
11	WPW10199683		Cap, Rinse Aid   (Replaces: W10199683)				$ 28.13
12	W10341074		Wiring Harness		Appelez-nous	-
13	WPW10177098		Screw   (Replaces: W10177098)			Immediately	$ 8.02
14	WP8269296		Seal, Console/door   (Replaces: 8269296)			Immediately	$ 188.17
