Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 W10266934 Tub Assembly (includes Heater Assembly) Special Order $ 619.17

2 W10842407 Coupler Assembly   (Replaces: W10354998) In-Stock Immediately $ 207.55

3 W10542314 Door Seal   (Replaces: W10284090) In-Stock Immediately $ 97.26

4 W10254984 Frame Assembly   (Replaces: 8559928) Special Order $ 173.73

5 W10817436 Screw   (Replaces: W10341745) In-Stock Immediately $ 8.14

6 WP3373199 Panel-top   (Replaces: 3373199) Special Order $ 395.30

7 WP681414 Screw   (Replaces: 304428) In-Stock Immediately $ 8.47

8 WP8268961 Pad, Friction   (Replaces: 8268961) In-Stock Immediately $ 5.93

9 WP8268990 Bushing, Door   (Replaces: 8268990) In-Stock Immediately $ 30.52

10 WP8559933 Caster   (Replaces: 8559933) In-Stock Immediately $ 103.49

11 W10165274 Screw Special Order $ 13.47

12 WPW10337934 Spring, Door Balance   (Replaces: 8524473) In-Stock Immediately $ 36.34

13 WP8270016 Wheel & Mount Assembly   (Replaces: 8270016) Special Order $ 88.84

14 W10831279 Cord-power   (Replaces: W10219671) Special Order $ 151.24

15 W10219673 Housing, Hose Appelez-nous -
16 W10356268 Shell Assembly (black) Special Order $ 534.29

16 W10356269 Shell Assembly (white) In-Stock Immediately $ 531.89

17 W10539489 Bracket, Thermostat   (Replaces: 3378595) Special Order $ 20.14

18 WP661566 Thermostat   (Replaces: 661566) In-Stock Immediately $ 31.28

19 WP8580309 Strike, Latch   (Replaces: 8580309) In-Stock Immediately $ 44.69

20 W10219682 Protector, Edge (long) Special Order $ 104.73

20 W10254751 Protector, Edge (short) Special Order $ 77.24

21 WPW10254672 Adapter Assembly   (Replaces: W10254672) In-Stock Immediately $ 55.04

22 W10321574 Shield, Thermostat   (Replaces: W10339699) Special Order $ 25.83

23 3378109 Saddle, Hose Appelez-nous -
24 W10328716 Bar, Blocker Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

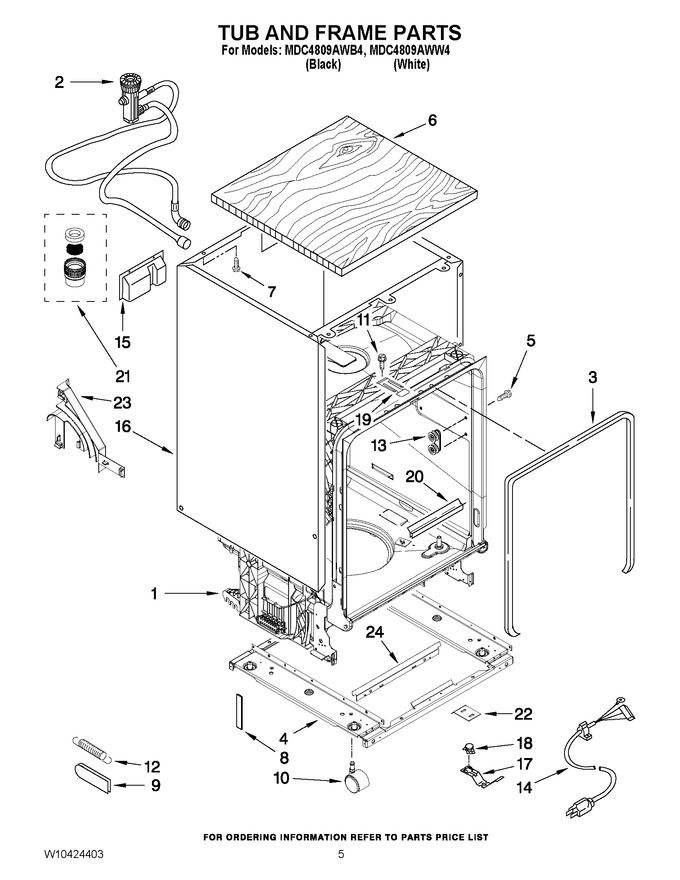

Diagram for MDC4809AWW4
