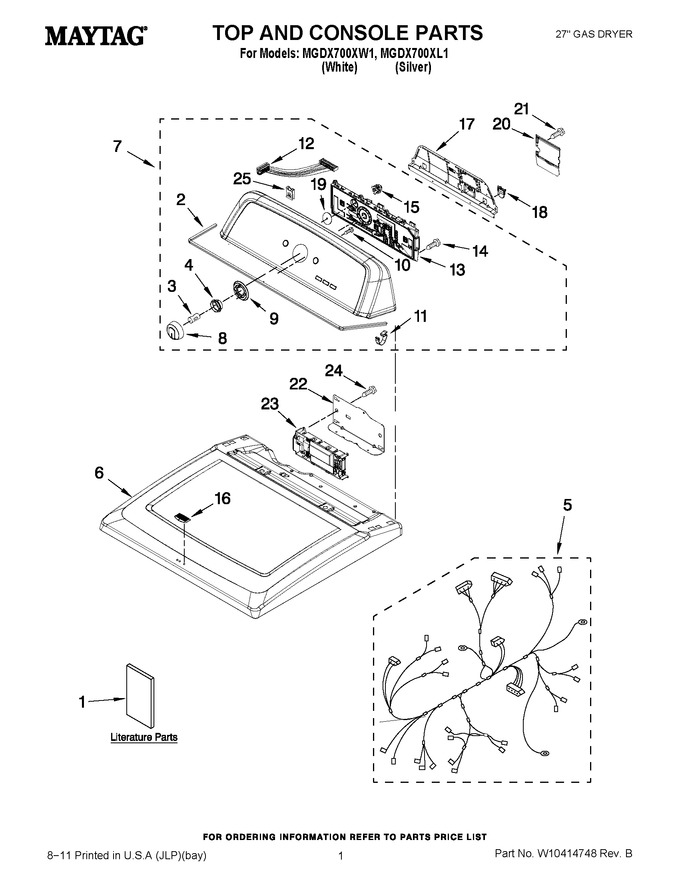

01 - Top And Console Parts
02 - Cabinet Parts
03 - Bulkhead Parts
04 - W10293911 Burner Assembly
05 - Door Parts
06 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10096989 | Guide, Use & Care |
|
- | |||||
| 1 | W10115228 | Installation, Instruction |
|
- | |||||
| 1 | W10097036 | Tech Sheet |
|
- | |||||
| 2 | W10280079 | Seal, Console |
|
- | |||||
| 3 | WP8536939 | Spring-clip Knob (Replaces: 8536939) |
|
Immediately | $ 8.20 | ||||
| 4 | W10326923 | Spacer, Knob |
|
- | |||||
| 5 | W10287253 | Main Harness |
|
- | |||||
| 6 | W10268731 | Top (silver) |
|
$ 132.83 | |||||
| 6 | WPW10268730 | Top (white) (Replaces: W10268730) |
|
$ 345.86 | |||||
| 7 | WPW10293249 | Console Assembly (complete) (white) (Replaces: W10293248) |
|
$ 529.90 | |||||
| 7 | WPW10293249 | Console Assembly (complete) (silver) (Replaces: W10293249) |
|
$ 529.90 | |||||
| 8 | WPW10251384 | Knob Assembly (silver) (Replaces: W10251384) |
|
$ 64.58 | |||||
| 8 | WPW10251381 | Knob Assembly (white) (Replaces: W10251381) |
|
$ 58.63 | |||||
| 9 | W10305134 | Bezel, Cycle Trim |
|
$ 26.37 | |||||
| 10 | 3196172 | Screw, 6-19 X 3/8 |
|
Immediately | $ 13.47 | ||||
| 11 | WP8312709 | Clip, Console (Replaces: 8312709) |
|
Immediately | $ 16.35 | ||||
| 12 | W10285494 | Cable-ui |
|
- | |||||
| 13 | WPW10272644 | User Interface Assembly (Replaces: W10272644) |
|
$ 313.89 | |||||
| 14 | W10853898 | Screw, 8-16 X 3/4 (Replaces: W10219342) |
|
Immediately | $ 8.18 | ||||
| 15 | W10274524 | Fascia, Tensioner |
|
- | |||||
| 16 | W10492808 | Maytag Badge (Replaces: W10323735) |
|
$ 59.82 | |||||
| 17 | W10096969 | Panel, Rear Console |
|
$ 197.80 | |||||
| 18 | W10279552 | Plug-upper (rear Panel) |
|
- | |||||
| 19 | W10323092 | Seal, Ui |
|
- | |||||
| 20 | W10338363 | Cover, Terminal Block |
|
- | |||||
| 21 | WP90767 | Screw, 8-18 X 3/8 (Replaces: 3390814) |
|
Immediately | $ 8.25 | ||||
| 22 | W10271580 | Bracket, Motor Control |
|
- | |||||
| 23 | WPW10214009 | Ccu-control (Replaces: W10214009) |
|
$ 395.99 | |||||
| 24 | WP488627 | Screw, 8-18 X 1/2 (Replaces: 342055) |
|
$ 8.11 | |||||
| 25 | W11213336 | Nut, U-type (Replaces: W10298336) |
|
$ 8.13 |
