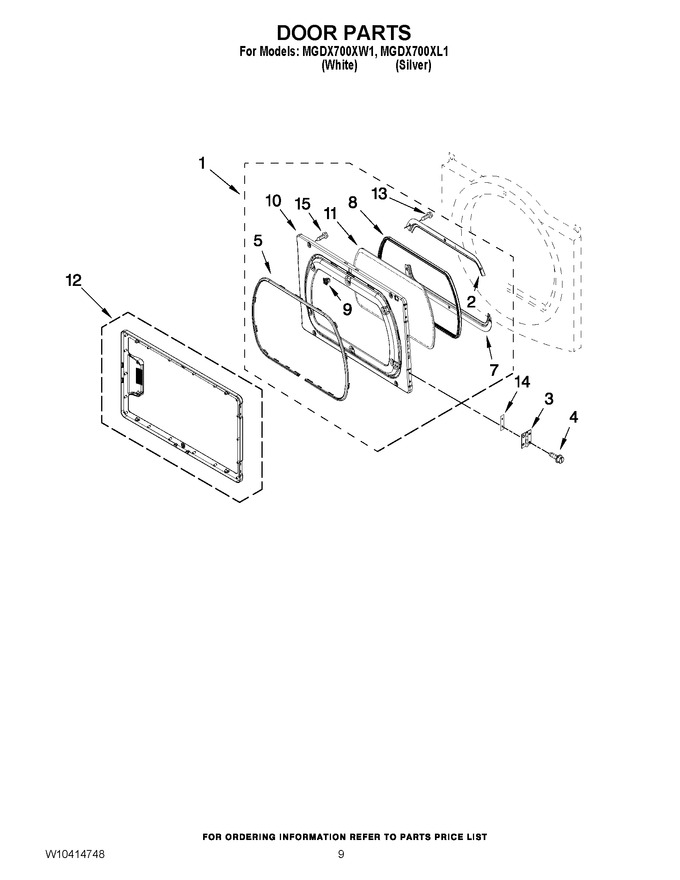

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10284131		Inner Door Assembly				$ 224.06
2	W10284119		Retainer, Upper		Appelez-nous	-
3	W10330876		Hinge & Pin Assembly (silver)				$ 17.14
3	W11175815		Hinge & Pin Assembly (white)   (Replaces: W10330875)				$ 85.48
4	WP488627		Screw, 8-18 X 1/2   (Replaces: 342055)				$ 8.11
5	WPW10354795		Seal-door   (Replaces: W10354795)				$ 130.12
7	W10284120		Retainer, Lower		Appelez-nous	-
8	W11676508		Seal, Glass   (Replaces: W10284122)				$ 28.37
9	279570		Catch, Door   (Replaces: 690081)			Immediately	$ 8.89
10	W11652037		Inner Door   (Replaces: W10284132)				$ 208.90
11	WPW10284121		Glass, Door   (Replaces: W10284121)				$ 263.61
12	WPW10284144		Door, Outer Assembly (silver)   (Replaces: W10284144)				$ 377.07
12	WPW10284127		Door, Outer Assembly (white)   (Replaces: W10284127)				$ 222.35
13	WP3373329		Screw, 10-16 X 1/2   (Replaces: 3393258)				$ 8.52
14	WP3390902		Clip, Door Hinge   (Replaces: 3390902)				$ 11.67
15	WPW10273971		Screw, 6-19 X 1/2   (Replaces: W10192860)			Immediately	$ 7.55

    View Diagram in Separate Window       Print Part List
