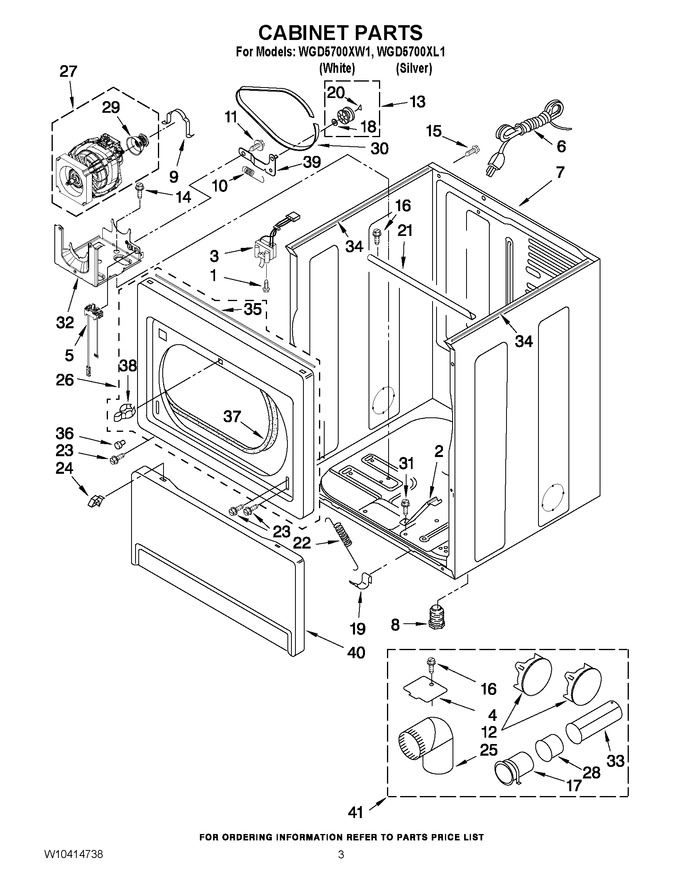

01 - Top And Console Parts
02 - Cabinet Parts
03 - Bulkhead Parts
04 - W10293911 Burner Assembly
05 - Door Parts
06 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP3395530 | Screw, 6-20 X 7/8 (Replaces: 697773) |
|
$ 8.57 | |||||
| 2 | W10181903 | Bracket, Burner (Replaces: 8529757) |
|
- | |||||
| 3 | WP3406107 | Door Switch Assembly (Replaces: 3406107) |
|
Immediately | $ 31.20 | ||||
| 4 | WPW10354249 | Plate, Cover (Replaces: 3394331) |
|
$ 9.41 | |||||
| 5 | WPW10411937 | Switch, Broken Belt (Replaces: W10246525) |
|
Immediately | $ 36.06 | ||||
| 6 | W11222083 | Cord, Power (Replaces: 344020) |
|
$ 126.62 | |||||
| 7 | W10292891 | Cabinet (silver) |
|
- | |||||
| 7 | W11417441 | Cabinet (white) (Replaces: 8310656) |
|
$ 440.17 | |||||
| 8 | 49621 | Foot, Dryer (Replaces: 3392100) |
|
Immediately | $ 8.55 | ||||
| 9 | WP660658 | Clamp, Motor (2) (Replaces: 660658) |
|
$ 8.22 | |||||
| 10 | WPW10446781 | Spring, Idler (Replaces: 3387374) |
|
Immediately | $ 25.80 | ||||
| 11 | WP3389420 | Retainer, Idler (Replaces: 3389420) |
|
$ 8.62 | |||||
| 12 | WPW10404617 | Plug, Multivent (white) (Replaces: 49252) |
|
$ 75.58 | |||||
| 12 | WPW10404617 | Plug, Multivent (midnight Grey) (Replaces: W10151499) |
|
$ 75.58 | |||||
| 13 | 279640 | Pulley Assembly (Replaces: 3388672) |
|
Immediately | $ 32.51 | ||||
| 14 | WP681414 | Screw, 10-16 X 1/2 (Replaces: 343641) |
|
Immediately | $ 8.47 | ||||
| 15 | WP90767 | Screw, Ground (Replaces: 8533971) |
|
Immediately | $ 8.25 | ||||
| 16 | WP488729 | Screw, 8-18 X 1/2 (Replaces: 3390647) |
|
Immediately | $ 8.28 | ||||
| 17 | WP8563747 | Exhaust Pipe & Bracket (Replaces: 8563747) |
|
$ 95.95 | |||||
| 18 | WPW10121334 | Washer, Thrust (Replaces: W10121334) |
|
Immediately | $ 7.55 | ||||
| 19 | WPW10291934 | Clip (2) (Replaces: W10291934) |
|
$ 8.14 | |||||
| 20 | WPW10512946 | Tri Ring (Replaces: 690997) |
|
Immediately | $ 8.80 | ||||
| 21 | W10236068 | Bracket, Cabinet |
|
$ 24.47 | |||||
| 22 | WP3387565 | Spring, Door (2) (Replaces: 3387565) |
|
$ 41.32 | |||||
| 23 | WP308685 | Screw,10-16 X 1/2 (Replaces: 3357011) |
|
Immediately | $ 7.87 | ||||
| 24 | WP3388229 | Retainer (Replaces: 3388229) |
|
Immediately | $ 8.45 | ||||
| 25 | WPW10416072 | 4`` - 90° Elbow (Replaces: 49026) |
|
$ 28.16 | |||||
| 26 | 697227 | Upper Front Panel (white) |
|
- | |||||
| 26 | W10292893 | Upper Front Panel (silver) |
|
- | |||||
| 27 | 3395650 | Motor, Assembly 1/3 Hp |
|
- | |||||
| 28 | WPW10331278 | Exhaust Pipe (short) (Replaces: 8563750) |
|
$ 82.90 | |||||
| 29 | W10837625 | Pulley, Motor (Replaces: 8578220) |
|
Immediately | $ 12.77 | ||||
| 30 | 661570V | Belt, Drive (Replaces: 3387610) |
|
Immediately | $ 32.81 | ||||
| 31 | WP693995 | Screw, 8-18 X 3/8 (Replaces: 693995) |
|
Immediately | $ 7.55 | ||||
| 32 | W11481730 | Bracket, Motor (Replaces: W10242878) |
|
Immediately | $ 94.84 | ||||
| 33 | WP8563749 | Exhaust Pipe (long) (Replaces: 8563749) |
|
$ 93.24 | |||||
| 34 | W10336128 | Foam, Cabinet |
|
$ 15.08 | |||||
| 35 | W10312811 | Foam Seal |
|
$ 67.73 | |||||
| 36 | 693152 | Bumper |
|
$ 11.51 | |||||
| 37 | WP3387242 | Seal, Front Panel (Replaces: 3387242) |
|
Immediately | $ 31.42 | ||||
| 38 | 279570 | Strike, Door (Replaces: 696144) |
|
Immediately | $ 8.89 | ||||
| 39 | W10837240 | Idler Bracket (Replaces: 3388674) |
|
Immediately | $ 35.78 | ||||
| 40 | WP3406797 | Toe Panel (includes. Illus. 36 ) (white) (Replaces: 697215) |
|
$ 250.25 | |||||
| 40 | W10292896 | Toe Panel (includes. Illus. 36 ) (silver) |
|
- | |||||
| NI | 49621 | Foot - Optional (extended Length Package Of 2) (not Included) (Replaces: 279810) |
|
Immediately | $ 8.55 | ||||
| NI | WPW10131132 | Dryer Exhaust Kit (for Side & Bottom Venting) (midnight Grey) (Replaces: W10331132) |
|
$ 75.81 |
